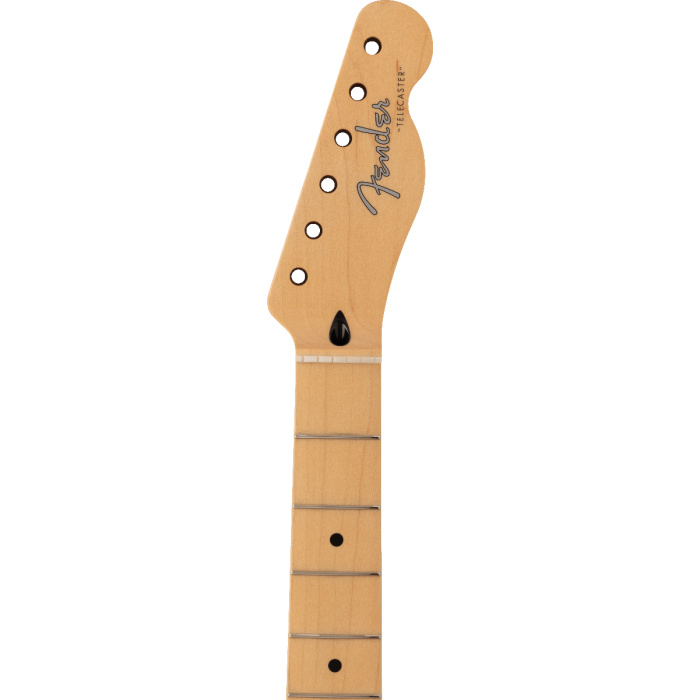

Fender Made in Japan Hybrid II Telecaster Neck, 22 Narrow Tall Frets, 9.5" Radius, C Shape, Maple

Fusing Fender's traditional aesthetics with sophisticated Japanese craftsmanship the made in Japan Hybrid II series necks offer the sought after and iconic feel of Fender MIJ instruments.

Crafted in the same facility as the Made in Japan series instruments, the Hybrid II Telecaster Neck features a modern “C” shape and incorporates a flatter 9.5" radius and 22 narrow tall frets on a rosewood or maple fingerboard. A satin urethane finish provides smooth feel for modern playability.

This replacement neck is for a Fender® or Squier® by Fender guitar.

Because Fender genuine replacement necks have not been mounted to guitar bodies, nut slots must be cut by qualified personnel. Other installation processes may be required, such as fret work, fitting the neck to the neck pocket, and other instrument setup procedures. Your local FMIC Authorized Service Center can install genuine replacement necks; find Authorized Service Center locations near you in the “Support” section of fender.com.

Features

• Telecaster neck with walnut stripe
• 9.5"-radius and “C” shape neck profile
• Rosewood or maple fingerboard with 22 narrow tall frets
• Satin urethane finish
• Pre-slotted bone nut

Specifications:

General
- Series: Necks
- Orientation: Right-Hand
- Color: Natural
- Instrument Type: Telecaster®
- Country Of Origin: JP

Neck
- Material: Maple with Walnut Stripe
- Finish: Satin Urethane with Gloss Urethane Headstock Face
- Shape: Modern "C"
- Thickness: 1st Fret - .800" (20.4 mm), 12th Fret - .900" (23.4 mm)
- Mounting: 4-Bolt
- Fingerboard Radius: 9.5" (241 mm)
- Fingerboard Material: Maple
- Position Inlays: Black Dot
- Side Dots: Black
- Number of Frets: 22
- Truss Rod: Standard
- Truss Rod Nut: 5 mm Hex
- String Nut: Bone
- Nut Width: 1.650" (42 mm)
- Nut Material: Bone

Hardware
- Tuner Mounting Config: Vintage-Style 2-Screw

Measurements
- Dimensions: 3.20x7.20x29.90 IN
- Shipping Weight: 2.80 LB
- Headstock Thickness: .540" (13.71 mm)
- Peg Hole Diameter: 9.2 mm
- Fret Size: Narrow Tall
- Scale Length: 25.5" (648 mm)
- Shipping Length: 29.90 IN
- Shipping Height: 3.20 IN
- Shipping Width: 7.20 IN
