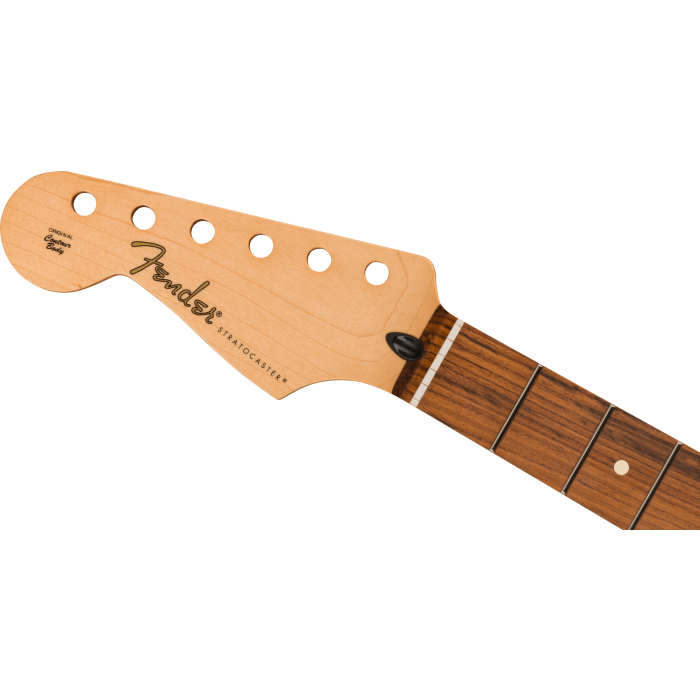

Fender Player Series Stratocaster LH Neck, 22 Medium Jumbo Frets, Pau Ferro, 9.5 inch, Modern C
Brand new. Not available for curbside pickup. Online orders only.
Crafted at our Ensenada, Mexico, manufacturing facility, this genuine Fender Player Series Stratocaster® left-handed guitar neck features a comfortable "modern C" profile and 9.5"-radius maple or pau ferro fingerboard with 22 medium jumbo frets.
The nut is pre-slotted with "pilot" string location grooves to make spacing a breeze when performing the final string slot filing, and a satin finish on the back offers smooth playability. For true Fender authenticity, it's also serialized and stamped, with genuine "Original Contour Body" headstock decal.
This replacement neck is for a Fender or Squier® by Fender guitar.
Because Fender genuine replacement necks have not been mounted to guitar bodies, nut slots must be cut by qualified personnel. Other installation processes may be required, such as fret work, fitting the neck to the neck pocket, and other instrument setup procedures. Your local FMIC Authorized Service Center can install genuine replacement necks; find Authorized Service Center locations near you in the "Support" section of fender.com.
Features
- Maple neck with walnut "skunk" stripe
- Maple or pau ferro fingerboard with 9.5" radius
- 22 medium jumbo frets
- Pre-slotted synthetic bone nut
- Standard truss rod
- Six two-guide-pin tuning machine holes
Specifications:
General
SERIES - Necks
ORIENTATION - Left-Hand
COLOR - Natural
INSTRUMENT TYPE - Stratocaster®
COUNTRY OF ORIGIN - MX
Neck
NECK MATERIAL - Maple
NECK FINISH - Satin Urethane Finish on Back of Neck with Gloss Urethane Headstock Face
NECK SHAPE - Modern "C"
NECK THICKNES - S1st Fret - .820” (20.82 mm), 12th Fret - .870” (22.09 mm)
NECK MOUNTING - 4-Bolt
FINGERBOARD RADIUS - 9.5" (241 mm)
FINGERBOARD MATERIAL - Pau Ferro
POSITION INLAYS - White Dot
SIDE DOTS - White
NUMBER OF FRETS - 22
TRUSS ROD - Standard
TRUSS ROD NUT - 3/16" Hex Adjustment
STRING NUT - Synthetic Bone
NUT WIDTH - 1.650" (42 mm)
NUT MATERIAL - Synthetic Bone
Hardware
TUNER MOUNTING CONFIG - Dual Guide Pin
Measurements
DIMENSIONS - 3.20x7.00x30.00 IN
SHIPPING WEIGHT - 2.60 LB
HEADSTOCK THICKNESS - .540” (13.71 mm)
PEG HOLE DIAMETER - .397" (10.08 mm)
FRET SIZE - Medium Jumbo
SCALE LENGTH - 25.5" (64.77 cm)
SHIPPING LENGTH - 30.00 IN
SHIPPING HEIGHT - 3.20 IN
SHIPPING WIDTH - 7.00 IN
Miscellaneous
COMMODITY CODE - 9209940000
