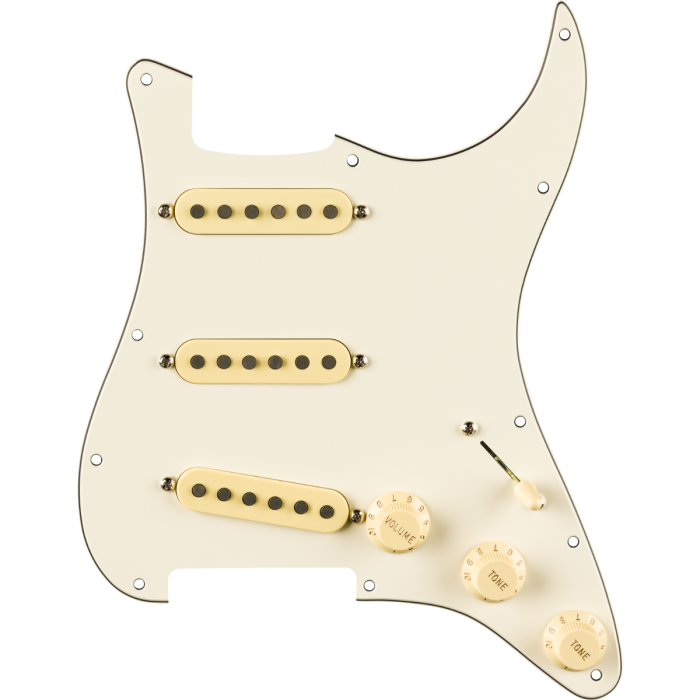

Fender Pre-Wired Strat Pickguard, Eric Johnson Signature, Parchment 11 Hole PG
Brand New. Not available for curbside pickup. Online orders only.
Customize your tone with the Pre-Wired Stratocaster pickguards. Made with premium components in the same factory as our iconic guitars, this drop-in pickguard is easy to install. Simply remove your old guard, solder the output jack and ground wires, screw in the new guard and you're ready to rock with pure Fender sound.
With slightly hotter output than typical vintage pickups and a powerful combination of magnets, these sonically potent and highly dynamic pickups produce the perfect balance of clean, dirty rhythm and lead tones to satisfy all level of players, through any amplifier. The neck pickup is based on a '54 Strat pickup with oversized alnico 3 magnets. The middle pickup, based on a '63 Strat pickup, uses specially treated alnico magnets and is reverse wound to cancel hum when used with the neck or bridge pickup. The bridge pickup uses alnico 5 magnets and is specially voiced to be hotter without sacrificing that sweet top end sparkle.
Features
- Hotter output bridge pickup
- Highly dynamic, balanced output
- Oversize alnico 3 magnets in neck pickup
- Alnico 5 magnets in bridge and middle pickups
- Reverse-wound middle pickup to eliminate hum
Specifications:
General
- Series: Pre-Wired Pickguards
- Orientation: Right-Hand
- Color: 3-Ply Parchment
- Instrument Type: Stratocaster®
- Country Of Origin: US
Hardware
- Pickguard: 3-Ply Parchment
- Pickguard Ply: 3-Ply
- Pickup Covers: Aged White
- Control Knobs: Aged White
- Switch Tip: Aged White
- Hardware Finish: Chrome
Electronics
- Bridge Pickup: Custom Eric Johnson Signature Stratocaster® Bridge Pickup
- Middle Pickup: Custom Eric Johnson Signature Stratocaster® RWRP Middle Pickup
- Neck Pickup: Custom Eric Johnson Signature Stratocaster® Neck Pickup
- Pickup Configuration: SSS
- Lead Wire: Cloth-covered
- Magnet Type: Neck and Middle: Alnico 3, Bridge: Alnico 5
- Magnet Wire: Formvar-coated
- Pole Pieces: Staggered
- Bobbin Material: Fiber
- Controls: Master Volume, Tone 1. (Neck Pickup), Tone 2. (Bridge Pickup)
- Output: Vintage
- DC Resistance: Neck: 5.8-6k, Middle: 6.3-6.5k, Bridge: 6.7-6.9k
- Inductance: Neck/Middle: 2.5-2.7 Henries, Bridge: 2.9-3.1 Henries
- Potentiometers: CTS 250K
Measurements
- Dimensions: 2.20x10.70x13.40 IN
- Shipping Weight: 1.40 LB
- Shipping Length: 13.40 IN
- Shipping Height: 2.20 IN
- Shipping Width: 10.70 IN
Miscellaneous
- Case Pack Qty: 8
- Style: 3 Single-Coil
- Tone: Vintage
