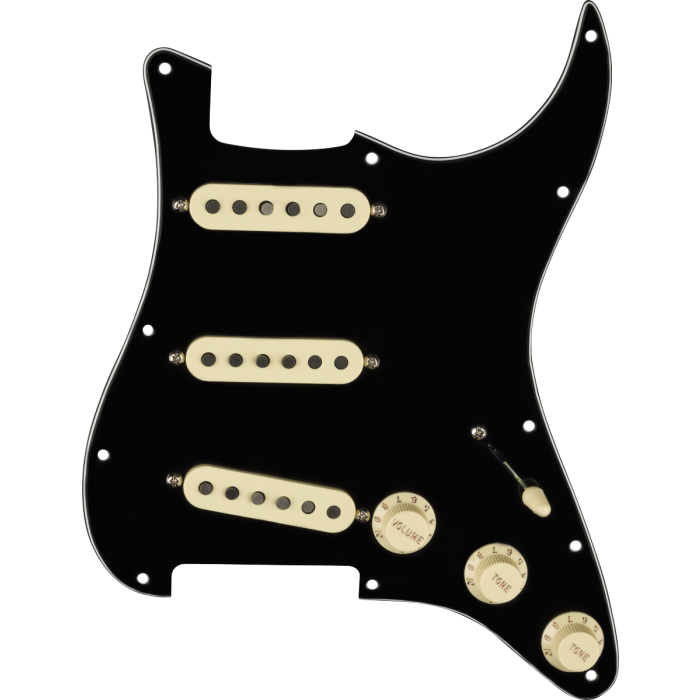

Fender Pre-Wired Strat Pickguard, Tex-Mex SSS, Black 11 Hole PG

Customize your tone with the Pre-Wired Stratocaster pickguards. Made with premium components in the same factory as our iconic guitars, this drop-in pickguard is easy to install. Simply remove your old guard, solder the output jack and ground wires, screw in the new guard and you're ready to rock with pure Fender sound.

Features

• Tex-Mex Pickups
• Polysol-coated magnet wire
• Staggered pole pieces for balanced output
• Alnico 5 magnets for focus and enhanced dynamics
• Reverse-wound middle pickup to eliminate hum
• Overwound bridge pickup for maximum output
• Vinyl-coated output wire and plastic bobbin

Specifications:

General
- Series: Pre-Wired Pickguards
- Orientation: Right-Hand
- Color: Black
- Instrument Type: Stratocaster®
- Country of Origin: Mexico

Hardware
- Pickguard: 3-Ply Black
- Pickguard Ply: 3-Ply
- Pickup Covers: Aged White
- Control Knobs: Aged White Plastic
- Switch Tip: Aged White
- Hardware Finish: Chrome
- Mounting Type: 11-Hole Modern

Electronics
- Bridge Pickup: Tex-Mex™ Single-Coil Strat®
- Middle Pickup: Tex-Mex™ Single-Coil Strat®
- Neck Pickup: Tex-Mex™ Single-Coil Strat®
- Pickup Configuration: SSS (Single-Single-Single)
- Lead Wire: Vinyl-covered
- Magnet Type: Alnico 5
- Magnet Wire: Polysol-coated
- Shielded: Yes
- Pole Pieces: Staggered
- Bobbin Material: Nylon

Controls:
- Master Volume
- Tone 1. (Neck Pickup)
- Tone 2. (Bridge/Middle Pickup)
- Switching: 5-Position Blade Switch

DC Resistance:
- Neck: 6.5K
- Middle: 6.4K
- Bridge: 7.4K

Inductance:
- Neck/Middle: 2.75 Henries
- Bridge: 3.7 Henries
- Power Requirements: Passive
- Potentiometers: CTS 250K

Measurements
- Dimensions: 2.50 x 10.75 x 13.50 in
- Shipping Weight: 1.47 lb
- Shipping Length: 13.50 in
- Shipping Height: 2.50 in
- Shipping Width: 10.75 in

Miscellaneous
- Disclaimer: ⚠️ WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
- Commodity Code: 9209940000
- Case Pack Quantity: 8
- Style: 3 Single-Coil

The Fender® Pre-Wired Pickguard – Tex-Mex™ Stratocaster® is a quick and easy upgrade for Strat® players looking for hotter output and signature Tex-Mex tone. Featuring Alnico 5 magnets, staggered pole pieces, and Polysol-coated wire, this setup delivers crisp highs, tight lows, and balanced mids with a touch of extra gain. With CTS 250K potentiometers, a 5-way blade switch, and a sleek black 3-ply pickguard, this pre-loaded pickguard offers classic Stratocaster® versatility with effortless installation.
