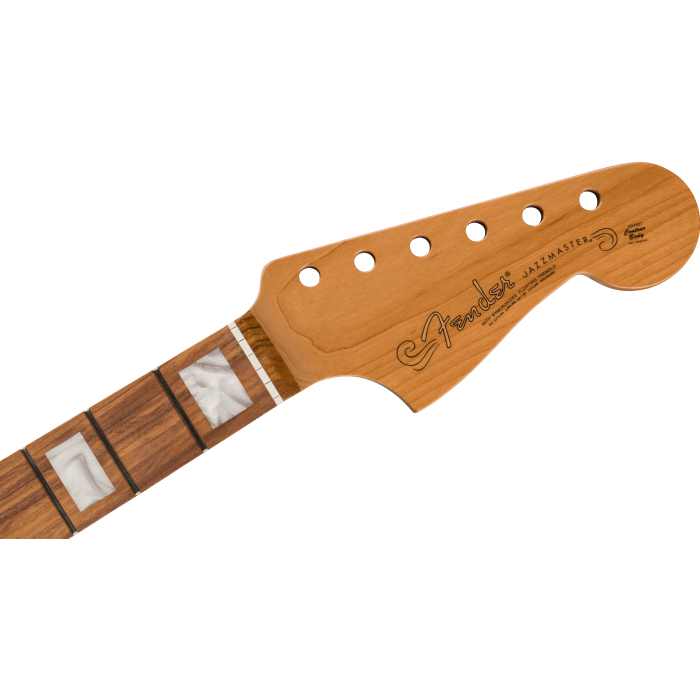

Fender Roasted Jazzmaster Neck, Block Inlays, 22 Medium Jumbo Frets, 9.5 inch Radius, Pau Ferro Modern C Shape

DESCRIPTION

There's no denying the allure of a roasted maple neck. Resistant to humidity shifts and featuring a gorgeous, dark look, they have more sustain and add a unique note to the instrument's voice.This genuine Fender Jazzmaster neck is crafted at our Ensenada, Mexico manufacturing facility. Featuring striking pearloid block inlays, a Modern "C" neck profile and 9.5"-radius maple fingerboard with 22 medium jumbo frets for modern playing feel. The synthetic bone nut is pre-slotted with "pilot" grooves for accurate spacing when filing the final string slots.

This replacement neck is for a Fender or Squier® by Fender guitar.

Because Fender genuine replacement necks have not been mounted to guitar bodies, nut slots must be cut by qualified personnel. Other installation processes may be required, such as fret work, fitting the neck to the neck pocket, and other instrument setup procedures. Your local FMIC Authorized Service Center can install genuine replacement necks; find Authorized Service Center locations near you in the "Support" section of fender.com.

FEATURES

• Roasted maple neck
• Modern "C"-shaped profile; 9.5"-radius maple or pau ferro fingerboard
• 22 medium jumbo frets; pre-slotted synthetic bone nut
• Gloss urethane finish on maple fingerboard and headstock face; satin finish on back of neck
• Vintage-style truss rod adjustment

SPECS

General
SERIES - Fender Parts
ORIENTATION - Right-Hand
COLOR - Natural
INSTRUMENT TYPE - Jazzmaster
COUNTRY OF ORIGIN - MX

Neck
NECK MATERIAL - Roasted Maple
NECK FINISH - Satin Urethane Finish on Back of Neck with Gloss Urethane Headstock Face
NECK SHAPE - Modern "C"
NECK THICKNESS - 1st Fret - .820" (20.82 mm), 12th Fret - .870" (22.09 mm)
NECK MOUNTING - 4-Bolt
FINGERBOARD RADIUS - 9.5" (241 mm)
FINGERBOARD MATERIAL - Pau Ferro
POSITION INLAYS - White Pearloid Block
SIDE DOTS - White
NUMBER OF FRETS - 22
TRUSS ROD - Vintage-Style Butt Adjust
TRUSS ROD NUT - Vintage-Style Butt Adjust
STRING NUT - Synthetic Bone
NUT WIDTH - 1.685" (42.8 mm)
NUT MATERIAL - Synthetic Bone

Hardware
TUNER MOUNTING CONFIG - Vintage-style 2-screw

Measurements
DIMENSIONS - 3.20x7.40x29.50 IN
SHIPPING WEIGHT - 2.95 LB
HEADSTOCK THICKNESS- .540” (13.71 mm)
PEG HOLE DIAMETER - .358” (9.09 mm)
FRET SIZE - Medium Jumbo
SCALE LENGTH - 25.5" (64.77 cm)
SHIPPING LENGTH - 29.50 IN
SHIPPING HEIGHT - 3.20 IN
SHIPPING WIDTH - 7.40 IN

Miscellaneous
COMMODITY CODE - 9209940000
