Fender Roasted Maple Jazz Bass Neck, 20 Medium Jumbo Frets, 9.5", Maple, C Shape
Brand New. Not available for curbside pickup. Online orders only.
There’s no denying the allure of a roasted maple neck. Resistant to humidity shifts and featuring a gorgeous, dark look, they have more sustain and add a unique note to the instrument’s voice.

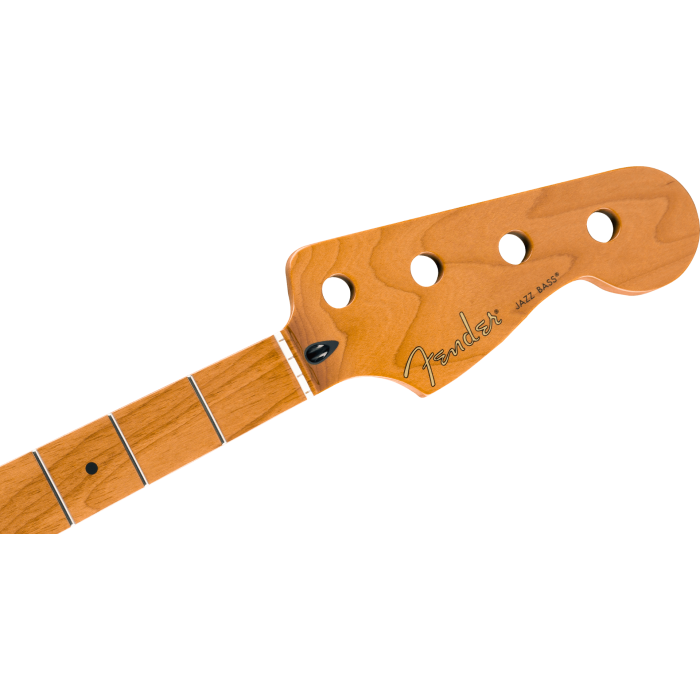

This genuine Fender Jazz Bass neck is crafted at our Ensenada, Mexico manufacturing facility. Featuring a comfortable "Modern C"-shaped profile and 9.5"-radius maple fingerboard with 20 medium-jumbo frets, this neck was designed for pure playability. The synthetic bone nut is pre-slotted with "pilot" grooves for accurate spacing when filing the final string slots. The perfect way to give your J Bass® authentic Fender feel, this replacement neck even sports our famous “spaghetti” logo on the headstock.
This replacement neck is for a Fender or Squier® by Fender guitar.
Because Fender genuine replacement necks have not been mounted to guitar bodies, nut slots must be cut by qualified personnel. Other installation processes may be required, such as fret work, fitting the neck to the neck pocket, and other instrument setup procedures. Your local FMIC Authorized Service Center can install genuine replacement necks; find Authorized Service Center locations near you.
Features
- Roasted maple neck
- “Modern C”-shaped profile; 9.5”-radius maple fingerboard
- 20 medium-jumbo frets; synthetic bone nut
- Gloss urethane finish on fingerboard and headstock face; satin finish on back of neck
- Modern-style truss rod adjustment
Roasted Maple Jazz Bass Neck, 20 Medium Jumbo Frets, 9.5", Maple, C Shape
GENERAL
- Series: Necks
- Orientation: Right-Hand
- Color: Natural
- Instrument Type: Jazz Bass®
- Country Of Origin: MX
NECK
- Neck Material: Roasted Maple
- Neck Finish: Satin Urethane Finish on Back of Neck with Gloss Urethane Headstock Face
- Neck Shape: Modern "C"
- Neck Thickness: 1st Fret - .820” (20.82 mm), 12th Fret - .870” (22.09 mm)
- Neck Mounting: 4-Bolt
- Fingerboard Radius: 9.5" (241 mm)
- Fingerboard Material: Maple
- Position Inlays: Black Dot
- Number of Frets: 20
- Truss Rod: Standard
- Truss Rod Nut: 3/16" Hex Adjustment
- String Nut: Synthetic Bone
- Nut Width: 1.5" (38.1 mm)
- Nut Material: Synthetic Bone
HARDWARE
- Tuner Mounting Config: 4-Screw Mount
MEASUREMENTS
- Dimensions: 3.40x8.20x36.90 IN
- Shipping Weight: 3.35 LB
- Headstock Thickness: .540” (13.71 mm)
- Peg Hole Diameter: .687” (17.44 mm)
- Fret Size: Medium Jumbo
- Scale Length: 34" (86.36 cm)
- Shipping Length: 36.90 IN
- Shipping Height: 3.40 IN
- Shipping Width: 8.20 IN
MISCELLANEOUS
- Style: Modern
