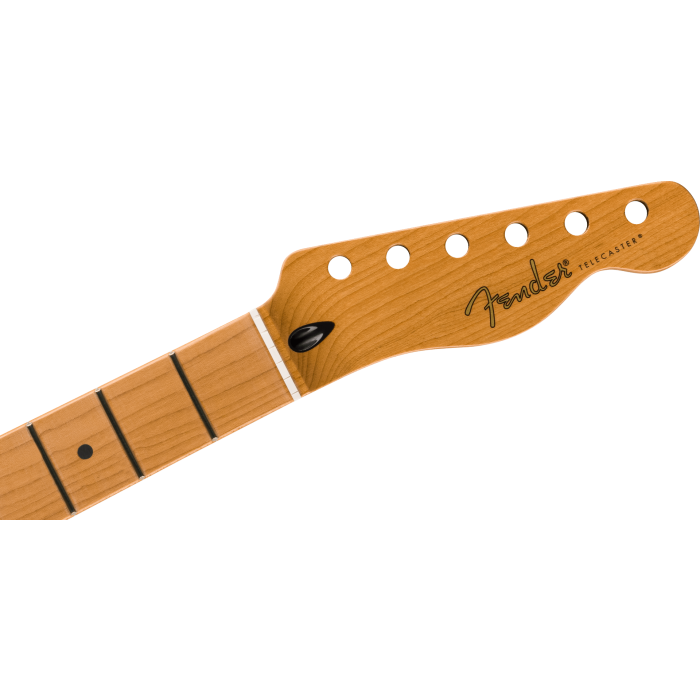

Fender Satin Roasted Maple Telecaster Neck, 22 Jumbo Frets, 12", Maple, Flat Oval Shape

There's no denying the allure of a roasted maple neck. Resistant to humidity shifts and featuring a gorgeous, dark look, they have more sustain and add a unique note to the instrument's voice.

This genuine Fender Telecaster neck is crafted at our Ensenada, Mexico manufacturing facility. Featuring a comfortable "Flat Oval"-shaped profile and 12"-radius maple or rosewood fingerboard with 22 jumbo frets, this neck was designed for pure speed and comfort. Upgraded features include a satin urethane finish and rolled fingerboard edges for supreme comfort and a broken in feel.

This replacement neck is for a Fender® or Squier® by Fender guitar.

Because Fender genuine replacement necks have not been mounted to guitar bodies, nut slots must be cut by qualified personnel. Other installation processes may be required, such as fret work, fitting the neck to the neck pocket, and other instrument setup procedures. Your local FMIC Authorized Service Center can install genuine replacement necks; find Authorized Service Center locations near you in the “Support” section of fender.com.

Features

• Roasted maple Telecaster neck
• "Flat Oval"-shaped profile; 12"-radius maple or rosewood fingerboard and rolled edges
• 22 jumbo frets; synthetic bone nut
• Satin urethane finish with gloss headstock face
• Modern-style truss rod adjustment

Specifications:

General
- Series: Necks
- Orientation: Right-Hand
- Color: Natural
- Instrument Type: Telecaster®
- Country Of Origin: MX

Neck
- Material: Roasted Maple
- Finish: Satin Urethane with Gloss Urethane Headstock Face
- Shape: Flat Oval
- Thickness: 1st Fret - .820" (20.82 mm), 12th Fret - .870" (22.09 mm)
- Mounting: 4-Bolt
- Fingerboard Radius: 12" (305 mm)
- Fingerboard Material: Roasted Maple
- Position Inlays: Black Dot
- Side Dots: Black
- Number of Frets: 22
- Truss Rod: Standard
- Truss Rod Nut: 3/16" Hex Adjustment
- String Nut: Synthetic Bone
- Nut Width: 1.6875" (42.86 mm)
- Nut Material: Synthetic Bone

Hardware
- Tuner Mounting Config: Dual Guide Pin

Measurements
- Dimensions: 3.20x7.40x29.80 IN
- Shipping Weight: 2.95 LB
- Headstock Thickness: .540" (13.71 mm)
- Peg Hole Diameter: .397" (10.08 mm)
- Fret Size: Jumbo
- Scale Length: 25.5" (648 mm)
- Shipping Length: 29.80 IN
- Shipping Height: 3.20 IN
- Shipping Width: 7.40 IN
