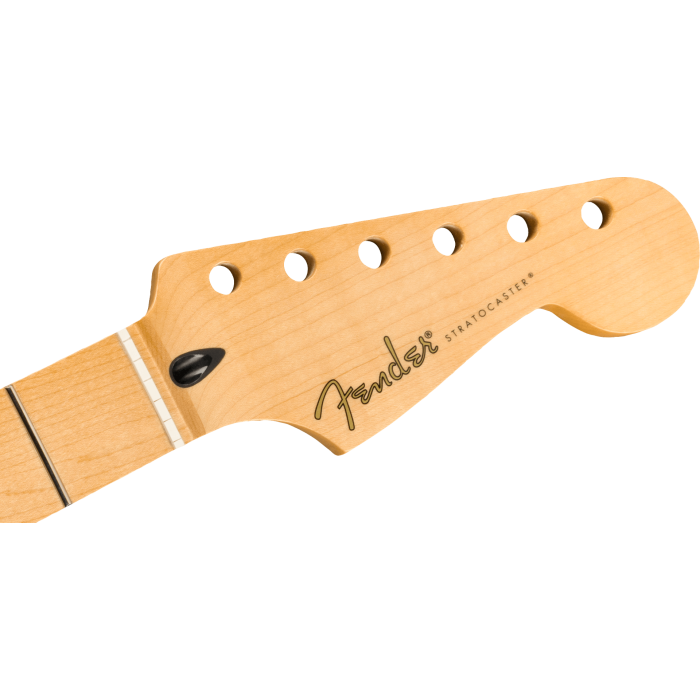

Fender Sub-Sonic Baritone Stratocaster Neck, 22 Medium Jumbo Frets, Maple
Wondering what you can do with that spare Fender or Squier Stratocaster in your closet? We have a suggestion: turn it into a baritone guitar with a genuine Fender Baritone Sub-Sonic Stratocaster neck. It’s easy to convert your standard-scale Strat into a 27" scale-length baritone! The Fender Baritone Sub-Sonic Stratocaster neck features a comfortable Modern C profile, a 9.5"-radius maple fingerboard with 22 medium jumbo frets, and a satin finish on the back for smooth playability.
Crafted at our Ensenada, Mexico, manufacturing facility, this genuine Fender Baritone Sub-Sonic Stratocaster guitar neck will convert your standard scale length guitar into a 27” scale length baritone! Features a comfortable "modern C" profile and 9.5"-radius maple fingerboard with 22 medium jumbo frets.
The nut is pre-slotted with "pilot" string location grooves to make spacing a breeze when performing the final string slot filing, and a gloss urethane finish on the back offers smooth playability.
This replacement neck is for a Fender or Squier by Fender guitar.
Note: Every neck and guitar is different, and a final setup, including filing the nut slots and a final fret leveling, may be required after installation on your guitar.
Because Fender genuine replacement necks have not been mounted to guitar bodies, nut slots must be cut by qualified personnel. Other installation processes may be required, such as fret work, fitting the neck to the neck pocket, and other instrument setup procedures. Your local FMIC Authorized Service Center can install genuine replacement necks.
Features
- Conversion to 27" baritone scale length
- Maple fingerboard with 9.5" radius
- 22 medium jumbo frets
- Pre-slotted synthetic bone nut
- Standard truss rod
- Six two-guide-pin tuning machine holes
Sub-Sonic Baritone Stratocaster Neck, 22 Medium Jumbo Frets, Maple
GENERAL
- Series: Necks
- Orientation: Right-Hand
- Color: Natural
- Instrument Type: Telecaster
- Country Of Origin: MX
MEASUREMENTS
- Dimensions: 3.21x6.90x30.00 IN
- Shipping Weight: 3.00 LB
- Headstock Thickness: .540” (13.71 mm)
- Peg Hole Diameter: .397" (10.08 mm)
- Fret Size: Medium Jumbo
- Scale Length: 27" (686 mm)
- Shipping Length: 30.00 IN
- Shipping Height: 3.21 IN
- Shipping Width: 6.90 IN
NECK
- Neck Material: Maple
- Neck Finish: Gloss Urethane
- Neck Shape: "C" Shape
- Neck Thickness: 1st Fret - .830” (21.08 mm), 12th Fret - .900" (22.86 mm)
- Neck Mounting: 4-Bolt
- Fingerboard Radius: 9.5" (241 mm)
- Fingerboard Material: Maple
- Position Inlays: Black Dot
- Side Dots: Black
- Number of Frets: 22
- Truss Rod: Standard
- Truss Rod Nut: 3/16" Hex Adjustment
- String Nut: Synthetic Bone
- Nut Width: 1.650" (42 mm)
- Nut Material: Synthetic Bone
HARDWARE
- Tuner Mounting Config: Dual Guide Pin
