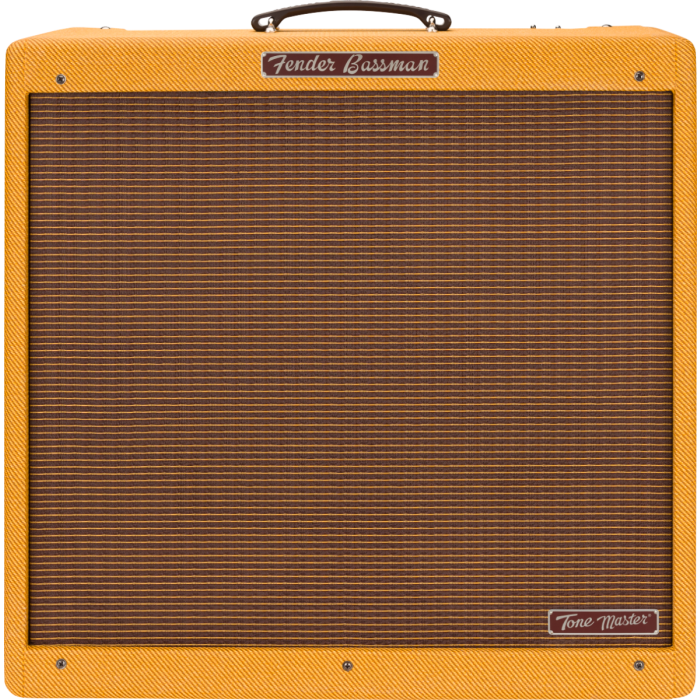

Fender Tone Master Bassman, 120V

The Tone Master ’59 Bassman amplifier uses massive digital processing power to achieve a single remarkable feat: faithfully modeling the circuitry and 45-watt power output of an original Bassman tube amp. Using a high-performance class D power amp to achieve the headroom and dynamics of the tube amp, the result is pure Bassman tone that’s virtually indistinguishable from the original.

This remarkable Fender technology is paired with the sparkle and touch sensitivity of four Jensen® P-10R speakers, as well as player-centric additions like convolution spring reverb, a vintage/tight switch for smoother bass response and a post-power amp effects loop. Other features include an output power selector for full power and five attenuated settings, impulse response (IR) XLR line output for detailed cabinet simulations, mute switch, and lightweight pine cabinet.

Features

• Four 10” Jensen P-10R Alnico Speakers
• “Normal” and “Bright” channels, each with dual inputs
• Top-panel Convolution Reverb control
• Rear-panel “Vintage-Tight” switch allows tighter low-end response
• Post-power amp effects loop for using time-based effects
• Rear-panel output power selector for full power and five attenuated settings
• Balanced XLR line output with impulse response (IR) cabinet simulations
• USB port for firmware upgrades
• Lightweight, resonant pine cabinet
• Jewel illuminates to indicate normal operation, warmup and mute modes
• Universal 100V-240V operation
• Cover and two-button footswitch included

Specifications:

General
- Series: Tone Master®
- Color: Lacquered Tweed
- Amplifier Type: Digital
- Country Of Origin: CN

Electronics
- Controls: Normal Volume, Bright Volume, Treble, Bass, Middle, Presence, Reverb
- Control Panel: Normal Volume, Bright Volume, Treble, Bass, Middle, Presence, Reverb
- Inputs: Four - (1/4", Two Bright and Two Normal)
- Line Out: One - (Balanced XLR with Ground Lift and Level Control)
- Channels: Two - (Normal and Bright)
- Effects: Reverb
- Effects Loop: 1/4" (Send/Return)
- Connectivity: USB For Firmware Updates
- Connection Type: 1/4"
- Voltage: 120V
- Wattage: 200W (Simulates 45W Tube Amp Performance)

Hardware
- Control Knobs: Chicken-Head Style Pointer - Black
- Amplifier Covering: Lacquered Tweed
- Cabinet Material: Lightweight Solid Pine
- Grille Cloth: Vintage-Style Brown and Gold
- Handle: Molded Rubber "Dog Bone" Style
- Amplifier Jewel: Red (Power), Red/Amber (Warmup), Amber (Mute)
- Front Panel: Chrome
- Reverb Tank: DSP
- Reverb Tank Type: DSP
- Rear Control Panel: Output Power Selector, Vintage/Tight Switch, Cabinet Sim Selector, Line Out Level, Ground Lift

Speakers
- Speakers: Four - 10" Jensen® P10R with Alnico Magnet
- Total Impedance: NA

Measurements
- Dimensions: 12.80x25.40x25.60 IN
- Shipping Weight: 38.80 LB
- Product Depth: 10.6” (26.9 cm)
- Product Height: 22.4” (56.9 cm)
- Product Width: 23.5" (59.7 cm)
- Shipping Length: 25.60 IN
- Shipping Height: 12.80 IN
- Shipping Width: 25.40 IN

Accessories
- Footswitch: 2-Button Footswitch Included
