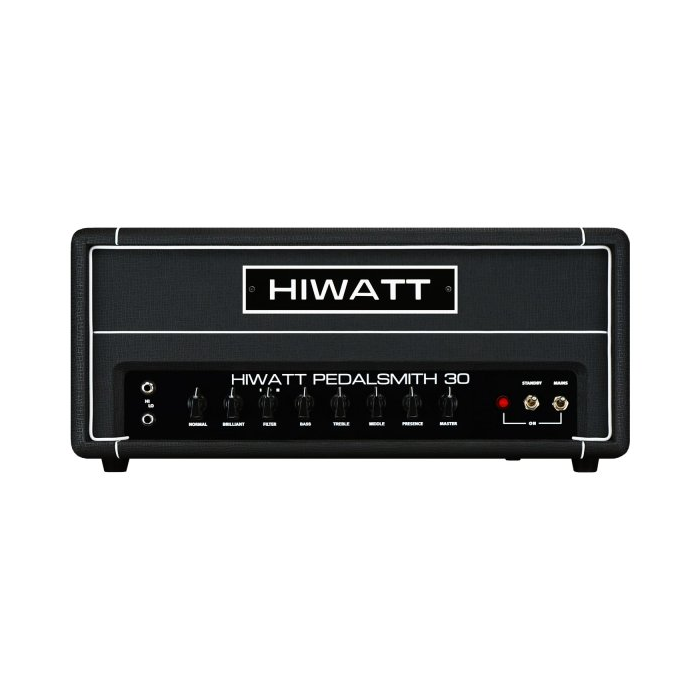

Hiwatt PEDALSMITH 30 30W Pedal Platform Amp Head w/ Effects Loop

The classic DR504 circuit updated with modern innovation and building techniques. Crystal clear, dynamic Hiwatt tone with two 6V6s pushing over 30 watts for pushed tones at lower volumes, as well as a pedal platform like no other. High/Low inputs to tune the gain range to your pickups, with each acting as a ‘Linked’ input (as seen on the legendary 70’s Hiwatts modified for Pink Floyd) sending your signal to both Normal and Brilliant channels for further sculpting of your tone. Hiwatt are renowned for their use as a pedal platform. The Pedalsmith now takes that one step further by adding a clean and quiet effects loop for inserting pedals after natural valve preamp gain - your modulation and time-based effects have never sounded better.

Based on our legendary Custom Shop DR504 - the Hiwatt tone that launched a thousand records

'Filter' switch for three different circuit variations offering more treble and more bass response

EL84 output valves to offer solid bass response while achieving more compression and overdrive at lower volumes

Post-preamp FX Loop for extra versatility with use with preamps, modulation, and time-based effects

Birch ply construction for Durability and sonic stability

British engineering for classic Hiwatt tone

wattage: 30W

channels: Normal, Brilliant

input: High and Low 1/4" Mono Input

outputs: 2 x 1/4" Speaker, 1/4" Effects Loop Send

preamp valves: 4 x ECC83 (12AX7)

output valves: 2 x 6V6

controls: Normal Volume, Brilliant Volume, Bass, Middle, Treble, Presence, Master Volume
