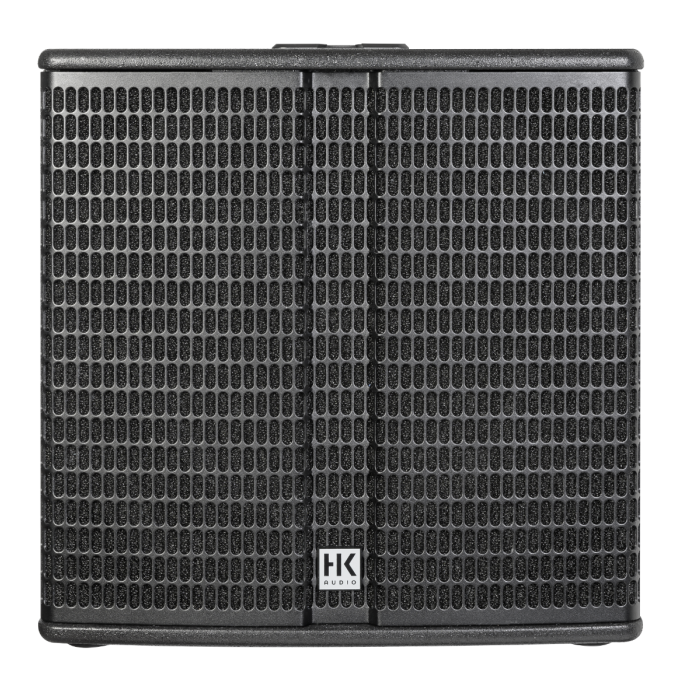

HK ELEM-115-SUB-D 2400 Watt Active Subwoofer

Compared to the subwoofers already available in the ELEMENTS family, the new ELEMENTS E 115 Sub D subwoofer delivers significantly increased bass performance. In combination with the 1500-watt power amplifier, the 15? woofer achieves considerably more sound pressure right into the low end. As a system subwoofer, it also offers a 900-watt power amplifier as a powerful drive for up to three E 835 mid/high units. High-performance 15? system subwoofer with 2,400 watts total power (1,500 watts for bass and 900 watts for up to three E 835 mid/high units). Integrated, network controllable DSP with 4 presets and Plug’n’Play Cardioid Out. Full control over all functions, EQ, limiter, delay, presets etc.

HK Audio DSP CONTROL software for full compatibility with LINEAR 7, can be operated together with LINEAR 7 speakers in the same network. Subwoofer can be expanded with the LINEAR SUB 1500 A, also as a Cardioid setup. Perfect expansion for existing ELEMENTS users thanks to compatibility with E 835/435 and the EP 1/2 and EF 45 accessories. Extremely simple handling: even a large Cardioid setup with two 15? basses and three E835s can be transported in a station wagon and set up by a single person. 5-year manufacturer warranty after registration

Features

• High-performance 15" woofer powered by a 1,500-watt Class D amplifier for deep, defined bass
• Additional 900-watt amp channel supports up to three E 835 mid/high units
• Plug’n’Play Cardioid Out for quick and easy directional bass setups
• Network-controlled DSP with filter presets and advanced tuning tools
• Full compatibility with HK Audio’s LINEAR 7 system and DSP CONTROL software (Windows, Mac OS)
• Expandable with LINEAR SUB 1500 A for large-scale setups
• Dual MultiGrip handles and compact MDF enclosure for portability and easy transport
• 5-year warranty with registration for long-term peace of mind

Specifications

Audio Performance
- Max SPL: 125 dB @ 90 Hz (10% THD, half space)
- Peak SPL: 128 dB @ 40 Hz (10% THD, half space)
- Frequency Response (±3 dB): 48 Hz – crossover
- Frequency Response (-10 dB): 44 Hz – crossover
- Power Output (Bass): 1,500 W
- Power Output (Column): 900 W
- Crossover Frequency: 160 Hz

Connectivity
- Analog Input: 1 x XLR combo (balanced)
- Thru: 1 x XLR (balanced)
- Cardioid Out: 1 x XLR (balanced)
- Network: Ethercon RJ45 (1 In / 1 Thru)
- Speaker Outputs: 1 x E-Connect, 1 x Speakon
- Mains: Powercon NAC3 In (100–240 V)

DSP Features
- Sample Rate: 96 kHz
- System Latency: < 2.6 ms
- DSP Functions: 10-band parametric EQ, HPF, LPF, Polarity, Delay, Limiter, Mute
- Presets: 1x, 2x, 3x E 835 + Remote control options via software

Construction
- Cabinet: MDF with black water-based finish
- Front Grille: 2 mm metal with black acoustic foam backing
- Handles: 2 x MultiGrip
- Dimensions (W x H x D): 48.5 x 48.5 x 59.5 cm
- Weight: 29.6 kg / 65.26 lb

The HK Audio E 115 Sub D is your go-to choice for professional-grade bass that’s powerful, portable, and built to deliver exceptional results night after night.
