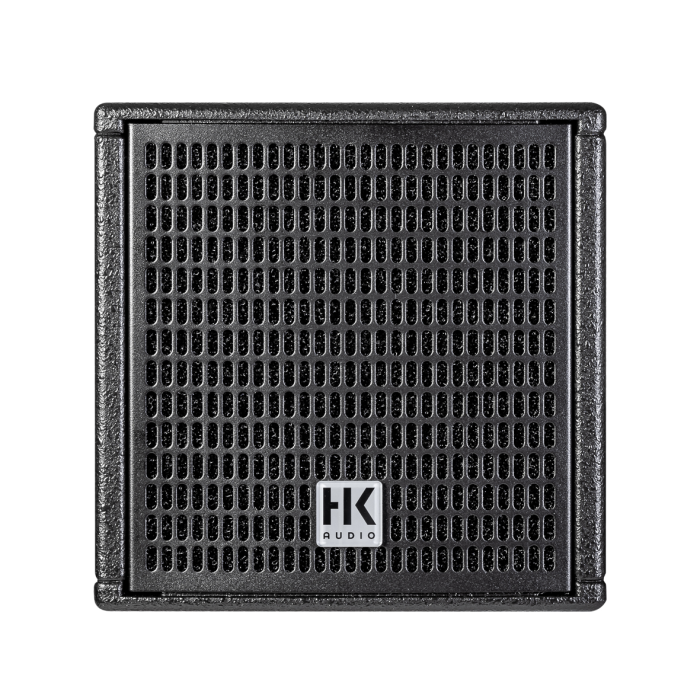

HK FINEO-FO-5-BLK 200 Watt 5" Coaxial Speaker. Black TGF33

$403.26
In stock
SKU
HKA-FINEOFO5BLK-OP

Brand New. Not available for curbside pickup. Online orders only.

Mint, Perfect, Open Box with Full HK Audio Warranty

The HK Audio FINEO FO 5 is an ultra-compact, cube-shaped passive 2-way mid/high unit designed for versatile fixed installations. Featuring an innovative 5" coaxial transducer with a 1" silk dome tweeter, it delivers a wide 110° dispersion, making it particularly suitable for close listening distances. Ideal applications include use as a delay speaker in larger rooms, front sound reinforcement, or nearfill at the edge of the stage. When combined with the S112 subwoofer, the FO 5 transforms into a powerful full-range sound reinforcement solution. Its compact design and extensive range of accessories allow for quick and secure installation in various settings, such as hospitality venues, exhibitions, or immersive audio applications.​

Features

  • 100W RMS power handling (200W program, 400W peak) for reliable performance in various settings.​
  • Equipped with a 5" Celestion coaxial cone speaker and a 1" silk dome tweeter for detailed sound reproduction across a wide frequency range.​
  • 110° circular dispersion for controlled sound projection in live environments.​
  • Coaxial design utilizes the woofer cone as a waveguide, enhancing sound clarity and coherence.​
  • Compact cube-shaped MDF cabinet with durable acrylic enamel finish for unobtrusive placement and aesthetic integration.​
  • Multiple mounting points (M6 and M4) and VESA MIS-D (100 x 100 mm) compatibility for flexible installation options.​
  • Ball impact resistance certified per DIN 18032-3, ensuring durability in demanding environments.​

Specifications

Concept
- Type: Passive 2-way mid/high unit​
- Cabinet Principle: Bass reflex​

Acoustic Performance
- Frequency Range (-6 dB): 81 Hz – 20 kHz​
- Frequency Range (-10 dB): 75 Hz – 20 kHz​
- Crossover Frequency: 3.1 kHz​
- Max SPL (Average @ 1m): 109 dB​
- Max SPL (Peak @ 1m): 112 dB​
- Sensitivity (1W/1m): 87 dB​
- Dispersion Angle (-6 dB): 110° circular​

Drivers
- Low/Mid: 1 x 5" Celestion coaxial cone speaker with ferrite magnet, 1.5" voice coil​
- High: 1 x 1" Celestion silk dome tweeter with neodymium magnet, 1" voice coil​
- Horn: Coaxial membrane functions as waveguide​

Power Handling
- RMS: 100 W​
- Program: 200 W​
- Peak: 400 W​
- Nominal Impedance: 8 ohms (per EN 60268-5 standard)​

Connections
- Input: 1 x NL4 Speakon​
- Output/Parallel: 1 x NL4 Speakon​
- Pin Assignment: 1+/- (input/parallel output), 2+/- (wired through)​

Build & Design
- Cabinet Material: MDF​
- Surface Finish: 1-component acrylic enamel​
- Color Options: Jet black (RAL 9005), signal white (RAL 9003), or custom finishes​
- Front Grille: Steel with anticorrosive coating, backed by acoustic foam​
- Mounting Points: 2 x M6 (side), 4 x M4 (rear)​
- Rear Hole Pattern: VESA MIS-D (100 x 100 mm)​
- Dimensions (WxHxD): 195 x 195 x 195 mm (7.68" x 7.68" x 7.68")​
- Weight: 4.2 kg (9.23 lbs)​

Optional Accessories
- U-bracket​
- L-bracket​
- BM-360​
- Adapter plate to VESA MIS-D (100 x 100 mm)​

Certifications
- Ball Impact Resistance: Certified per DIN 18032-3 (MPA University Stuttgart)​

The HK Audio FINEO FO 5 combines compact design with high-quality sound reproduction, making it an excellent choice for various fixed installation applications requiring reliable and versatile audio solutions.
