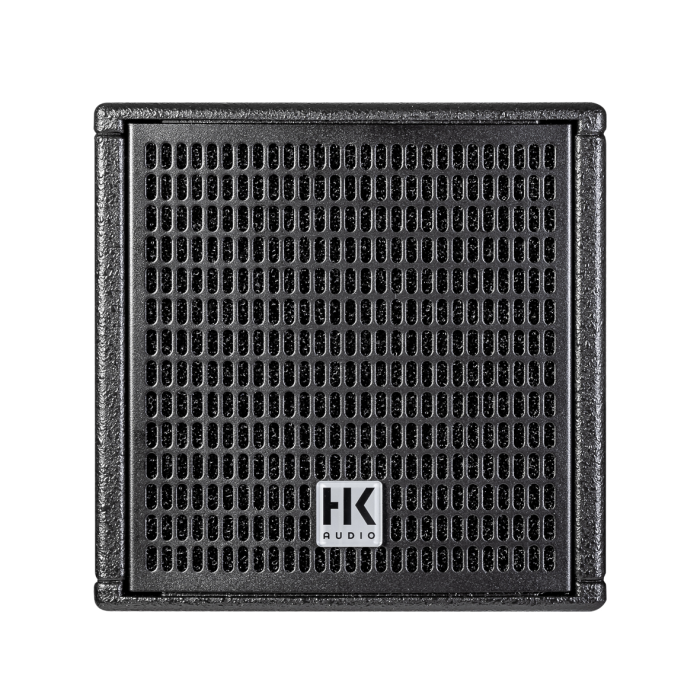

HK FINEO-FO-5-BLK 200 Watt 5" Coaxial Speaker. Black
Brand New. Not available for curbside pickup. Online orders only.
The HK Audio FINEO FO 5 is an ultra-compact, cube-shaped passive 2-way mid/high unit designed for versatile fixed installations. Featuring an innovative 5" coaxial transducer with a 1" silk dome tweeter, it delivers a wide 110° dispersion, making it particularly suitable for close listening distances. Ideal applications include use as a delay speaker in larger rooms, front sound reinforcement, or nearfill at the edge of the stage. When combined with the S112 subwoofer, the FO 5 transforms into a powerful full-range sound reinforcement solution. Its compact design and extensive range of accessories allow for quick and secure installation in various settings, such as hospitality venues, exhibitions, or immersive audio applications.
Features
- 100W RMS power handling (200W program, 400W peak) for reliable performance in various settings.
- Equipped with a 5" Celestion coaxial cone speaker and a 1" silk dome tweeter for detailed sound reproduction across a wide frequency range.
- 110° circular dispersion for controlled sound projection in live environments.
- Coaxial design utilizes the woofer cone as a waveguide, enhancing sound clarity and coherence.
- Compact cube-shaped MDF cabinet with durable acrylic enamel finish for unobtrusive placement and aesthetic integration.
- Multiple mounting points (M6 and M4) and VESA MIS-D (100 x 100 mm) compatibility for flexible installation options.
- Ball impact resistance certified per DIN 18032-3, ensuring durability in demanding environments.
Specifications
Concept
- Type: Passive 2-way mid/high unit
- Cabinet Principle: Bass reflex
Acoustic Performance
- Frequency Range (-6 dB): 81 Hz – 20 kHz
- Frequency Range (-10 dB): 75 Hz – 20 kHz
- Crossover Frequency: 3.1 kHz
- Max SPL (Average @ 1m): 109 dB
- Max SPL (Peak @ 1m): 112 dB
- Sensitivity (1W/1m): 87 dB
- Dispersion Angle (-6 dB): 110° circular
Drivers
- Low/Mid: 1 x 5" Celestion coaxial cone speaker with ferrite magnet, 1.5" voice coil
- High: 1 x 1" Celestion silk dome tweeter with neodymium magnet, 1" voice coil
- Horn: Coaxial membrane functions as waveguide
Power Handling
- RMS: 100 W
- Program: 200 W
- Peak: 400 W
- Nominal Impedance: 8 ohms (per EN 60268-5 standard)
Connections
- Input: 1 x NL4 Speakon
- Output/Parallel: 1 x NL4 Speakon
- Pin Assignment: 1+/- (input/parallel output), 2+/- (wired through)
Build & Design
- Cabinet Material: MDF
- Surface Finish: 1-component acrylic enamel
- Color Options: Jet black (RAL 9005), signal white (RAL 9003), or custom finishes
- Front Grille: Steel with anticorrosive coating, backed by acoustic foam
- Mounting Points: 2 x M6 (side), 4 x M4 (rear)
- Rear Hole Pattern: VESA MIS-D (100 x 100 mm)
- Dimensions (WxHxD): 195 x 195 x 195 mm (7.68" x 7.68" x 7.68")
- Weight: 4.2 kg (9.23 lbs)
Optional Accessories
- U-bracket
- L-bracket
- BM-360
- Adapter plate to VESA MIS-D (100 x 100 mm)
Certifications
- Ball Impact Resistance: Certified per DIN 18032-3 (MPA University Stuttgart)
The HK Audio FINEO FO 5 combines compact design with high-quality sound reproduction, making it an excellent choice for various fixed installation applications requiring reliable and versatile audio solutions.
