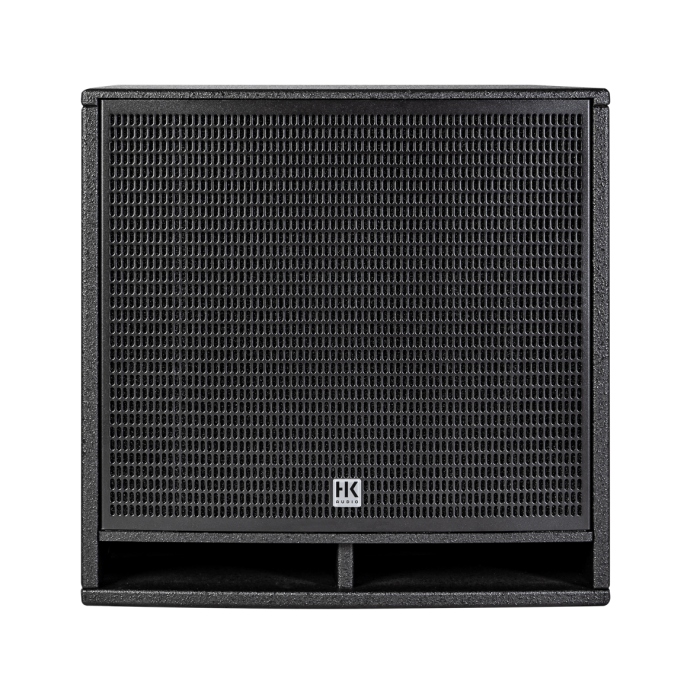

HK FINEO-FO-S112-BLK 1200 Watt 12" Install Subwoofer. Black

The HK FINEO S112-P is a compact yet powerful passive subwoofer designed to deliver rich, deep low-end support in space-sensitive installations. Engineered with a 12" Sica cone woofer and a 2.5" voice coil, this subwoofer produces impressive bass performance and high SPL, making it a perfect match for compact full-range speakers like the FO 5. With a tuning frequency of 50 Hz and a peak output of 2400W, the S112-P is ideal for surround LFE applications or as a system subwoofer in commercial venues, sports facilities, and immersive audio environments.

Its clever rear-panel cable routing with cutouts for left, right, or bottom exits allows flush wall placement with no awkward gaps. The sub also includes a secondary grille that protects the bass reflex port from accidental damage or tampering—particularly useful in public or sports installations. Certified for ball impact resistance and housed in a durable MDF cabinet, the S112-P is built for long-term reliability in demanding environments.

Features

• 600W RMS / 2400W peak power handling for serious low-end reinforcement
• 12" Sica woofer with 2.5" voice coil delivers deep, responsive bass with clarity
• Omnidirectional dispersion ensures smooth low-end presence throughout the space
• Compact design fits easily into tight installation zones without sacrificing performance
• Rear cable cutouts allow clean, wall-hugging placement (left, right, or bottom)
• Secondary grille over the bass reflex port protects against foreign object intrusion
• Certified for ball impact resistance (DIN 18032-3)—ideal for sports facilities
• Durable MDF cabinet with steel front grille and rubber feet for secure placement
• Available in jet black, signal white, or custom RAL finishes to match any space

Specifications

Concept
- Type: Passive subwoofer
- Cabinet Principle: Bass reflex

Acoustic Performance
- Frequency Range (-6 dB): 61 Hz – crossover frequency
- Frequency Range (-10 dB): 42 Hz – crossover frequency
- Max SPL (Average @ 1m): 116 dB
- Max SPL (Peak @ 1m): 120 dB
- Sensitivity (1W/1m): 91 dB
- Dispersion: Omnidirectional
- Crossover: No internal crossover

Driver
- Low Frequency: 1 x 12" Sica cone speaker with ferrite magnet and 2.5" voice coil

Power Handling
- RMS: 600 W
- Program: 1200 W
- Peak: 2400 W
- Nominal Impedance: 8 ohms (per EN 60268-5 standard)

Connections
- Input: 1 x NL4 Speakon
- Output/Parallel: 1 x NL4 Speakon
- Pin Assignment: 2+/- (input/parallel), 1+/- (wired through)

Build & Design
- Cabinet Material: MDF
- Surface Finish: 1-component acrylic enamel
- Color Options: Jet black (RAL 9005), signal white (RAL 9003), or custom RAL finishes
- Front Grille: Steel grille with anticorrosive coating, backed by acoustic foam and steel reinforcements
- Secondary Grille: Expanded metal insert for bass reflex port protection
- Cable Routing: Rear panel cutouts for left, right, or bottom cable exit
- Feet: 4 x rubber feet (bottom-mounted)
- Dimensions (WxHxD): 474 x 478 x 506 mm (18.66" x 18.82" x 19.92")
- Weight: 24.5 kg (54.01 lbs)

Certifications
- Ball Impact Resistance: Certified per DIN 18032-3 (MPA University Stuttgart)

System Compatibility
- Compatible with DSP platforms including: Biamp Tesira, BSS, Lab.gruppen, Lake, Linea Research, Marani, Powersoft, QSC Q-SYS, Symetrix, LEA Professional Sharkware, and others.
