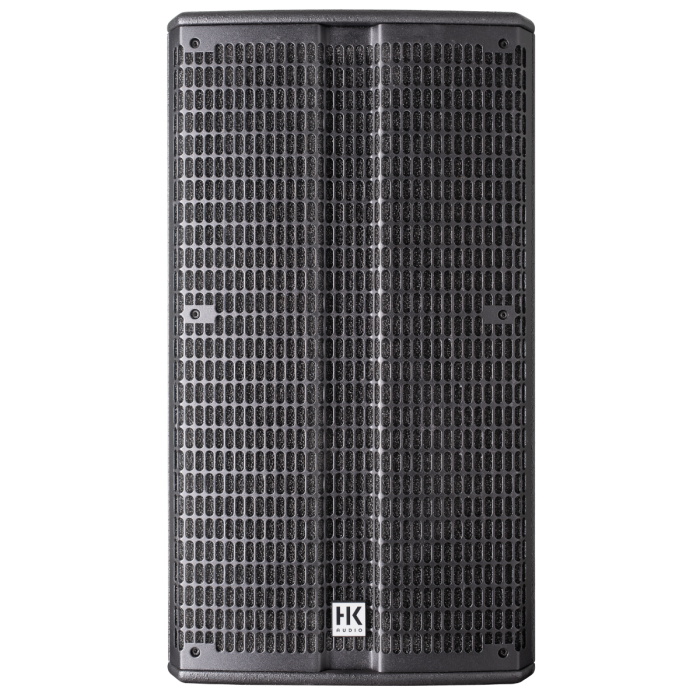

HK LINEAR-5-112-X 1000 Watt 1 x 12" Passive Monitor TGF33

Mint, Perfect, Open Box with Full HK Audio Warranty

The HK LINEAR 5 112 X is a rugged and high-output 1 x 12" passive speaker designed for flexible use as both a full-range speaker and a powerful stage monitor. With 1000 watts of program power handling and a peak SPL of 135 dB, this speaker delivers massive volume with clarity and control. The rotatable 60° x 40° CD horn allows for optimal dispersion in a wide range of live applications, and its exceptional feedback resistance makes it ideal for use as a monitor. Built with a hybrid birch multiplex/MDF cabinet and finished with black acrylic enamel, it's road-ready and durable. Pair it with the Linear Sub 2000 for a complete, full-range passive system.

Features

• 1000W program / 500W RMS power handling for high SPL performance
• 135 dB peak SPL output for loud, clean sound under pressure
• 12" woofer with 2.5" voice coil and 1" HF driver with 1.75" coil
• Rotatable 60° x 40° CD horn for precise and flexible coverage
• PTC protection circuitry for driver reliability
• Exceptional gain before feedback makes it ideal for stage monitoring
• DuoTilt pole mount with 3° and 7° angles for FOH use
• Rigging points and handle options for easy transport and installation
• Hybrid birch multiplex/MDF cabinet with rugged black finish
• Compatible with Linear Sub 2000 for system expansion

Specifications

Acoustic Performance
- Max SPL (Average @ 10% THD): 130 dB (half space, 100 Hz – 12 kHz avg)
- Max SPL Peak @ 10% THD: 135 dB (half space)
- Frequency Response (±3 dB): 100 Hz – 18 kHz
- Frequency Response (-10 dB): 72 Hz – 19 kHz
- Sensitivity (1W @ 1m): 104 dB (half space)

Power & Impedance
- Power Handling (RMS): 500 W
- Power Handling (Program): 1000 W
- Impedance: 8 ohms
- Protection: PTC circuit

Drivers
- Low/Mid Driver: 1 x 12", 2.5" voice coil
- HF Driver: 1", 1.75" voice coil
- Horn: 60° x 40° rotatable CD horn
- Crossover: 1.7 kHz, 12 dB/oct

Connections
- 2 x Speakon NL4

Construction
- Cabinet: Hybrid birch multiplex / MDF
- Finish: Black acrylic enamel
- Grille: 2 mm steel grille with black acoustic foam backing
- Handles: 1 x SingleGrip, 1 x MultiGrip
- Pole Mount: DuoTilt 3° / 7°
- Rigging Points: 3 x M8 (AP-8)
- Monitor Angle: 33°

Dimensions & Weight
- Dimensions (WxHxD): 37 x 67 x 30 cm (14.56" x 26.29" x 11.81")
- Weight: 19.5 kg (43 lbs)
