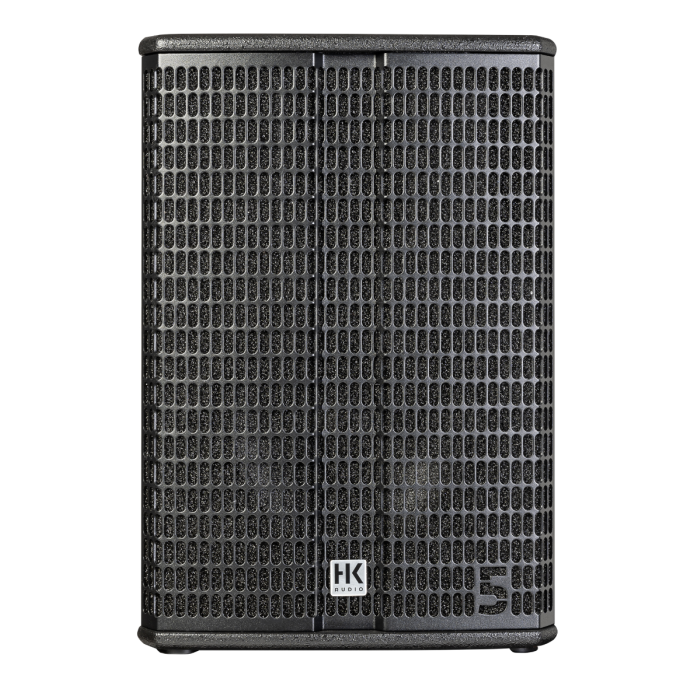

HK LINEAR-5-MK2-110-XA 1200 Watt 10" Multi Function Active Speaker

The HK LINEAR 5 MK2 110 XA is a compact, multifunctional 10" active speaker designed for flexibility, portability, and high-performance output. With 1200 watts of peak power and advanced FIR-filtered DSP, it delivers crystal-clear sound and powerful SPL for front-of-house, stage monitoring, or installations. The rotatable 80° x 60° CD horn adapts to vertical or horizontal setups, and integrated DSP CONTROL software (via network port) allows for in-depth control and remote tuning. With multiple filter presets and professional-grade build quality, it’s a powerhouse in a small footprint.

Features

• 1200W peak / 600W RMS Class D bi-amped power
• 10" woofer with 2" voice coil and 1" HF driver with 1.4" voice coil
• Max SPL of 127 dB average / 135 dB peak for high-pressure environments
• Frequency range from 68 Hz – 19 kHz (-10 dB) for full-range clarity
• Rotatable 80° x 60° CD horn for versatile deployment
• FIR crossover at 2.1 kHz with steep 72 dB/oct slope
• Fully parametric 10-band DSP EQ with high/low pass, delay, limiter & mute
• Remote controllable via EtherCON port using DSP CONTROL software (Windows/Mac)
• Filter presets: Flat, Monitor, Low Cut, Remote
• Lightweight hybrid cabinet with M8 rigging points and DuoTilt pole mount
• Durable black acrylic enamel finish and acoustic foam-backed metal grille

Specifications

Acoustic Performance
- Max SPL (Avg @ 10% THD): 127 dB (half space, 70 Hz – 12 kHz)
- Max SPL (Peak @ 10% THD): 135 dB (half space)
- Frequency Response (±3 dB): 74 Hz – 12 kHz
- Frequency Response (-10 dB): 68 Hz – 19 kHz
- System Latency: < 2 ms
- Sample Rate: 48 kHz

Power & Electronics
- Amplifier Output: 600 W RMS / 1200 W Peak
- Amplifier Type: Class D – bi-amped
- Mains Connection: IEC with V-Lock, 100–240 V
- Power Consumption: 1 A nominal

Drivers
- Low/Mid: 1 x 10", 2" voice coil
- High: 1 x 1", 1.4" voice coil
- Horn: 80° x 60° rotatable CD horn
- Crossover Frequency: 2.1 kHz FIR, 72 dB/oct

DSP & Control
- Inputs: 1 x XLR combo (balanced)
- Outputs: 1 x XLR Thru (balanced), 1 x XLR DSP Out (balanced)
- Max Input Level: 20 dBu
- Filter Presets: Flat, Monitor, Low Cut, Remote
- DSP Features: 10-band EQ, high-pass, low-pass, polarity, level, delay, limiter, mute
- Network: 1 x EtherCON RJ45 (In)
- Remote Software: DSP CONTROL (Windows, macOS)

Construction
- Housing: Hybrid birch multiplex / MDF
- Surface: Black acrylic enamel
- Grille: 2 mm steel with acoustic foam backing
- Handles: 1 x SingleGrip
- Pole Mount: DuoTilt 3° / 7°
- Rigging Points: 3 x M8 (AP-8)
- Monitor Angle: 31°

Dimensions & Weight
- Dimensions (WxHxD): 36 x 52.5 x 30 cm (14.17" x 20.71" x 11.81")
- Weight: 14.9 kg (32.85 lbs)
