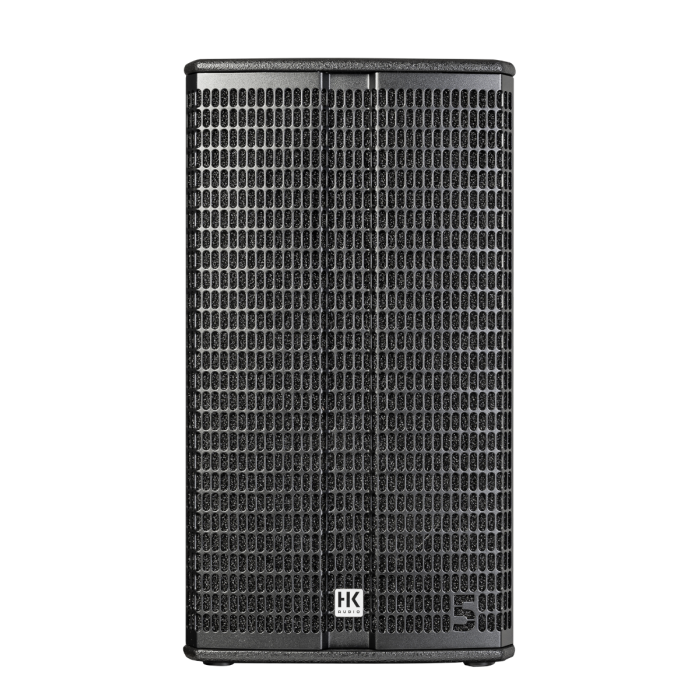

HK LINEAR-5-MK2-112-FA 1200 Watt 12" Full Range Active Speaker TGF33

Mint, Perfect, Open Box with Full HK Audio Warranty

The HK LINEAR 5 MK2 112 FA is a powerful, full-range 12" active speaker designed for flexible setups with or without a subwoofer. Delivering 1200 watts of peak power and 135 dB peak SPL, it’s engineered for top-tier performance in live sound applications. Its rotatable 60° x 40° CD horn and advanced FIR-filtered DSP make it highly adaptable for both front-of-house and monitoring scenarios. With network-ready DSP CONTROL software and a comprehensive EQ toolkit, this speaker combines premium sound quality with smart control—perfect for pro-level audio setups.

Features

• 1200W peak / 600W RMS Class D bi-amped power
• 12" woofer with 2.5" voice coil for deep, tight low-end response
• 135 dB peak SPL for high-output live applications
• Frequency range from 55 Hz – 19 kHz (-10 dB) for wideband clarity
• Rotatable 60° x 40° CD horn for flexible placement and dispersion
• FIR crossover at 1.6 kHz with steep 72 dB/oct slope
• Four filter presets: Flat, Boost, Low Cut, Remote
• Fully parametric 10-band DSP EQ with delay, limiter, mute, and more
• Network remote control via EtherCON port using DSP CONTROL software (Windows/Mac)
• Hybrid birch multiplex/MDF cabinet with durable black finish
• DuoTilt pole mount, rigging points, and two ergonomic MultiGrip handles

Specifications

Acoustic Performance
- Max SPL (Avg @ 10% THD): 128 dB (half space, 70 Hz – 12 kHz)
- Max SPL (Peak @ 10% THD): 135 dB (half space)
- Frequency Response (±3 dB): 70 Hz – 12 kHz
- Frequency Response (-10 dB): 55 Hz – 19 kHz
- Crossover Frequency: 1.6 kHz FIR, 72 dB/oct
- Sample Rate: 48 kHz
- System Latency: < 2 ms

Power & Electronics
- Amplifier Output: 600 W RMS / 1200 W Peak
- Amplifier Type: Class D – bi-amped
- Power Consumption: 1 A nominal @ 100–240 V
- Mains Connection: IEC with V-Lock securing system

Drivers
- Low/Mid: 1 x 12", 2.5" voice coil
- High: 1 x 1", 1.7" voice coil
- Horn: 60° x 40° rotatable CD horn

DSP & Control
- Inputs: 1 x XLR combo (balanced)
- Outputs: 1 x XLR Thru (balanced), 1 x XLR DSP Out (balanced)
- Max Input Level: 20 dBu
- Filter Presets: Flat, Boost, Low Cut, Remote
- DSP Features: 10-band EQ, high-pass, low-pass, polarity, level, delay, limiter, mute
- Network: 1 x EtherCON RJ45 (In)
- Remote Software: DSP CONTROL (Windows, macOS)

Construction
- Housing: Hybrid birch multiplex / MDF
- Surface: Black acrylic enamel
- Grille: 2 mm steel with acoustic foam backing
- Handles: 2 x MultiGrip
- Pole Mount: DuoTilt 3° / 7°
- Rigging Points: 3 x M8 (AP-8)

Dimensions & Weight
- Dimensions (WxHxD): 37 x 67 x 36.5 cm (14.56" x 26.38" x 14.37")
- Weight: 21.9 kg (48.28 lbs)
