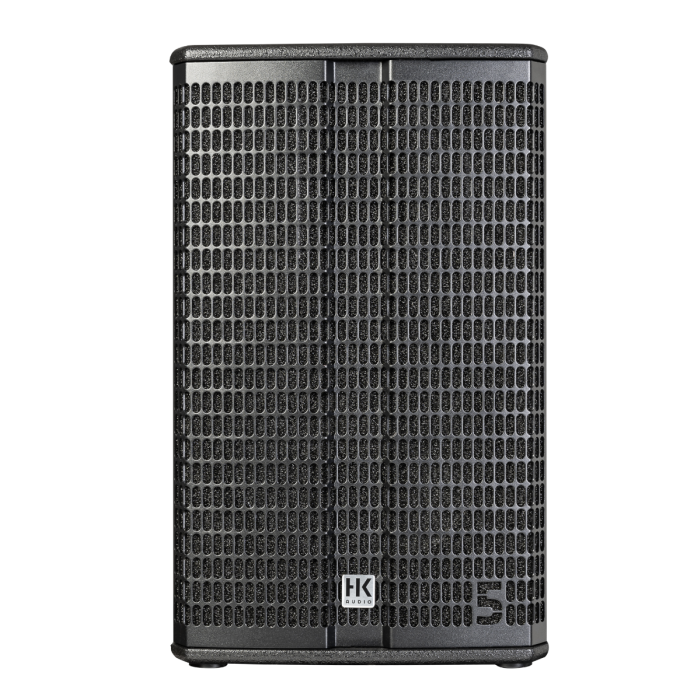

HK LINEAR-5-MK2-112-XA 1200 Watt 12" Multi Function Active Speaker TGF33

Mint, Perfect, Open Box with Full HK Audio Warranty

The HK LINEAR 5 MK2 112 XA is the most compact 12" multifunctional active speaker in its class, combining incredible output power with flexible deployment options. Delivering 1200 watts of peak power and a max SPL of 136 dB, it’s built for demanding live sound scenarios, whether used as a front-of-house speaker or as a high-powered stage monitor. Its rotatable 80° x 60° CD horn ensures precise coverage, and its DSP capabilities—including remote control via network—give sound professionals full control over their sound. With a hybrid birch multiplex/MDF housing and a rugged finish, this speaker is ready for the road and the stage.

Features

• 1200W peak / 600W RMS Class D bi-amped power
• 12" woofer with 2.5" voice coil for deep, clear response
• 136 dB max SPL for powerful, distortion-free output
• Frequency range from 67 Hz – 19 kHz (-10 dB)
• FIR crossover at 1.9 kHz with steep 72 dB/octave slope
• Rotatable 80° x 60° CD horn for adaptable dispersion
• Filter presets: Flat, Monitor, Low Cut, Remote
• 10-band fully parametric DSP EQ with delay, limiter, polarity, mute & more
• EtherCON network port for remote control via DSP CONTROL (Windows/macOS)
• Dual SingleGrip handles, pole mount, and rigging points for easy integration
• Rugged hybrid wood cabinet with black acrylic enamel finish

Specifications

Acoustic Performance
- Max SPL (Avg @ 10% THD): 128 dB (half space, 70 Hz – 12 kHz)
- Max SPL (Peak @ 10% THD): 136 dB (half space)
- Frequency Response (±3 dB): 73 Hz – 12 kHz
- Frequency Response (-10 dB): 67 Hz – 19 kHz
- System Latency: < 2 ms
- Sample Rate: 48 kHz
- Setup Angle: 31°

Power & Electronics
- Amplifier Output: 600 W RMS / 1200 W Peak
- Amplifier Type: Class D – bi-amped
- Power Consumption: 1 A nominal @ 100–240 V
- Mains Connection: IEC with V-Lock securing system

Drivers
- Low/Mid: 1 x 12", 2.5" voice coil
- High: 1 x 1", 1.7" voice coil
- Horn: 80° x 60° rotatable CD horn
- Crossover Frequency: 1.9 kHz FIR, 72 dB/oct

DSP & Control
- Inputs: 1 x XLR combo (balanced)
- Outputs: 1 x XLR Thru (balanced), 1 x XLR DSP Out (balanced)
- Max Input Level: 20 dBu
- Filter Presets: Flat, Monitor, Low Cut, Remote
- DSP Features: 10-band EQ, HPF/LPF, polarity, level, delay, limiter, mute
- Network: 1 x EtherCON RJ45 (In)
- Remote Software: DSP CONTROL (Windows, macOS)

Construction
- Housing: Hybrid birch multiplex / MDF
- Surface: Black acrylic enamel
- Grille: 2 mm steel with black acoustic foam backing
- Handles: 2 x SingleGrip
- Pole Mount: DuoTilt 3° / 7°
- Rigging Points: 3 x M8 (AP-8)

Dimensions & Weight
- Dimensions (WxHxD): 36 x 59 x 30.5 cm (14.17" x 23.23" x 12.01")
- Weight: 17.6 kg (38.80 lbs)
