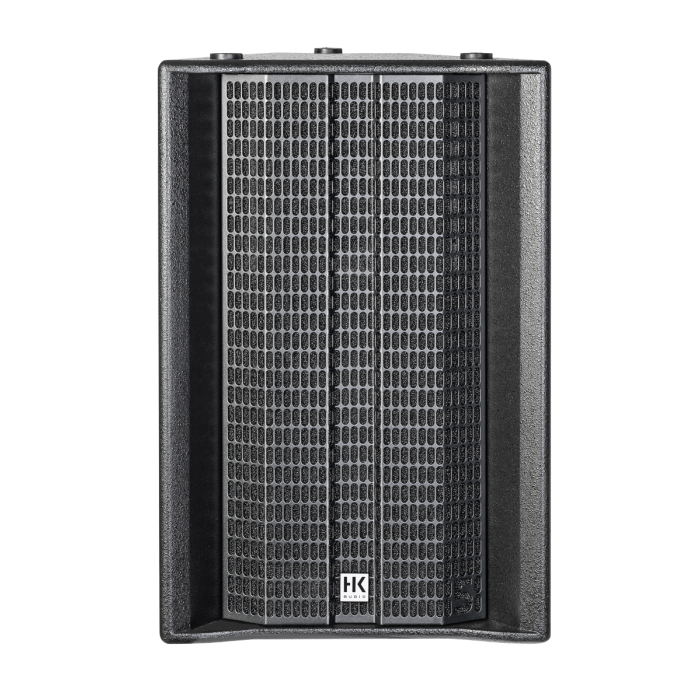

HK LINEAR-5-MK2-308-LTA 1200 Watt 3 x 8" Long Throw Mid/High Speaker TGF33

Mint, Perfect, Open Box with Full HK Audio Warranty

The HK LINEAR 5 MK2 308 LTA is a powerful, long-throw mid/high active unit designed for large rooms, open-air venues, and scalable PA setups where wide, deep sound coverage is essential. Filling the gap between classic point source and full line array systems, this compact horn-loaded speaker delivers crystal-clear treble with no drop-off thanks to its Multicell Transformer (MCT) and 1" compression driver. Three vertically stacked horn-loaded 8" woofers provide rich, punchy mids, reaching audiences up to 40 meters away—no delay lines required. Optimized presets for cluster and headstack configurations are built-in, making it easy to scale your system with power and precision.

Features

• 1200W peak / 600W RMS Class D bi-amped power
• Three vertically stacked 8" horn-loaded woofers for punchy mids and excellent projection
• 1" compression driver with 1.7" voice coil and MCT horn for long-throw treble clarity
• Max SPL of 138 dB peak for high-output venues and open-air events
• Frequency response extends from 98 Hz to 19 kHz (-10 dB)
• Multicell Transformer horn with 60° x +5°/-25° dispersion
• FIR crossover at 1.6 kHz with steep 60 dB/oct filter
• Built-in filter presets: Single, Cluster, Headstack, and Remote
• Remote DSP control via EtherCON port and DSP CONTROL software (Windows/macOS)
• PowerCon in/out for clean, efficient power distribution
• 5 M8 rigging points and MonoTilt pole mount for flexible setup
• Tough birch multiplex housing with road-ready finish and acoustic foam-backed grille

Specifications

Acoustic Performance
- Max SPL (Avg @ 10% THD): 133 dB (half space, 100 Hz – 12 kHz avg)
- Max SPL (Peak @ 10% THD): 138 dB (half space)
- Frequency Response (±3 dB): 105 Hz – 17 kHz
- Frequency Response (-10 dB): 98 Hz – 19 kHz
- Horn Directivity: 60° x +5° / -25° (Multicell Transformer)
- Crossover Frequency: 1.6 kHz FIR, 60 dB/oct
- Sample Rate: 48 kHz
- System Latency: ≤ 2.9 ms

Power & Electronics
- Amplifier Output: 600 W RMS / 1200 W Peak
- Amplifier Type: Class D – bi-amped
- Power Consumption: 1 A nominal @ 100–240 V
- Power Connection: PowerCon NAC3 In + NAC3 Thru

Drivers
- Low/Mid: 3 x 8", 1.5" voice coil (horn-loaded)
- High: 1" compression driver, 1.7" voice coil
- No LF-only driver (full-range mid/high unit)

DSP & Control
- Inputs: 1 x XLR combo (balanced)
- Outputs: 1 x XLR Thru (balanced), 1 x XLR DSP Out (balanced)
- Max Input Level: +20 dBu
- Filter Presets: Single, Cluster, Headstack, Remote
- DSP Features: 10-band parametric EQ, HPF/LPF, polarity, level, delay, limiter, mute
- Network: 1 x EtherCON RJ45 In, 1 x EtherCON RJ45 Thru
- Remote Software: DSP CONTROL (Windows, macOS)

Construction
- Housing: Birch multiplex
- Finish: Black acrylic enamel
- Grille: 2 mm steel grille with black acoustic foam backing
- Handles: 2 x HK Audio MultiGrip
- Rigging Points: 5 x M8 (AP-8)
- Pole Mount: MonoTilt 0°

Dimensions & Weight
- Dimensions (WxHxD): 44 x 68 x 46 cm (17.32" x 26.77" x 18.11")
- Weight: 25 kg (55.1 lbs)
