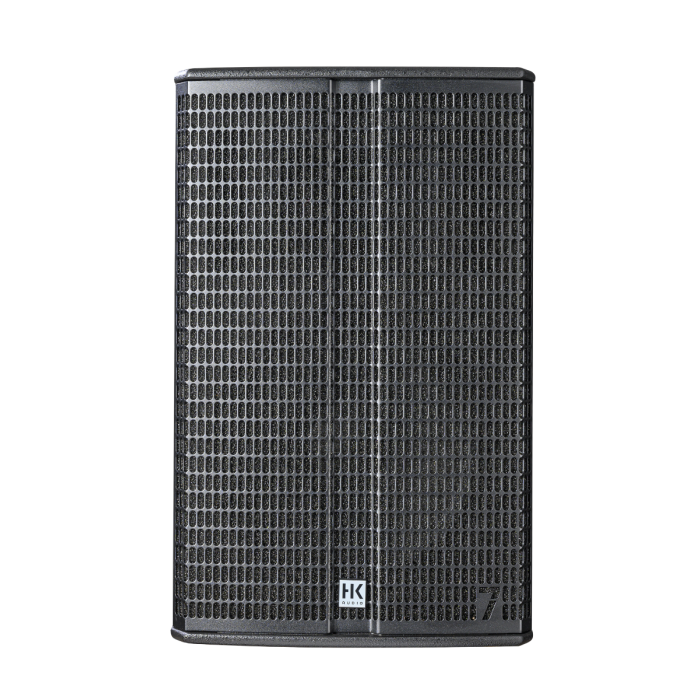

HK LINEAR-7-115-FA 200 Watt 15" Active Speaker

The HK LINEAR 7 115 FA is a powerful, network-ready 15" active full-range speaker engineered for high-output performance with extended bass response. Its larger cabinet volume and optimized Bass Boost preset make it ideal for standalone use or as part of a scalable PA system. With 2000 watts of peak power, a rotatable 60° x 40° CD horn, and remote DSP control via EtherCON, this speaker delivers professional-grade sound, flexible deployment, and precise tuning options. Perfect for FOH, side fill, or mobile setups, the 115 FA balances power and clarity with rugged road-ready construction.

Features

• 2000W peak Class D bi-amped power for high-performance output
• 15" woofer with 3" voice coil delivers extended, punchy bass
• 134 dB max SPL for high-volume, full-range sound coverage
• Frequency response down to 54 Hz (-10 dB) for deep low-end clarity
• Rotatable 60° x 40° CD horn for focused directional control
• FIR crossover at 1.5 kHz with 60 dB/oct slope
• Four onboard filter presets: Flat, Boost, Low Cut, and Remote
• 10-band parametric DSP EQ with limiter, delay, mute, HPF/LPF, and polarity
• EtherCON network port for DSP CONTROL remote access (Windows/macOS)
• PowerCon power input for secure and streamlined cabling
• Hybrid birch multiplex/MDF housing with ergonomic MultiGrip handles and DuoTilt mount

Specifications

Acoustic Performance
- Max SPL (Avg @ 10% THD): 129 dB (half space, 70 Hz – 12 kHz avg)
- Max SPL (Peak @ 10% THD): 134 dB (half space)
- Frequency Response (±3 dB): 57 Hz – 19 kHz
- Frequency Response (-10 dB): 54 Hz – 20 kHz
- Crossover Frequency: 1.5 kHz FIR, 60 dB/oct
- Sample Rate: 96 kHz
- System Latency: < 2.6 ms
- Clustering Angle: 60°

Power & Electronics
- Amplifier Output: 2000 W Peak
- Amplifier Type: Class D – bi-amped
- Power Consumption: 1 A nominal @ 100–240 V
- Mains Connection: 1 x PowerCon NAC3 In

Drivers
- Low/Mid: 1 x 15", 3" voice coil
- High: 1 x 1", 1.7" voice coil
- Horn: 60° x 40° rotatable CD horn

DSP & Control
- Inputs: 1 x XLR combo (balanced)
- Outputs: 1 x XLR Thru (balanced), 1 x XLR DSP Out
- Max Input Level: +20 dBu
- Filter Presets: Flat, Boost, Low Cut, Remote
- DSP Features: 10-band EQ, HPF/LPF, polarity, level, delay, limiter, mute
- Network: 1 x EtherCON RJ45 (In), 1 x EtherCON RJ45 (Thru)
- Remote Software: DSP CONTROL (Windows, macOS)

Construction
- Housing: Hybrid birch multiplex / MDF
- Surface: Black acrylic enamel
- Grille: 2 mm steel with black acoustic foam backing
- Handles: 2 x MultiGrip
- Pole Mount: DuoTilt 3° / 7°
- Rigging Points: 4 x M8 (AP-8)

Dimensions & Weight
- Dimensions (WxHxD): 45 x 71 x 45 cm (17.72" x 27.95" x 17.72")
- Weight: 32 kg (70.5 lbs)
