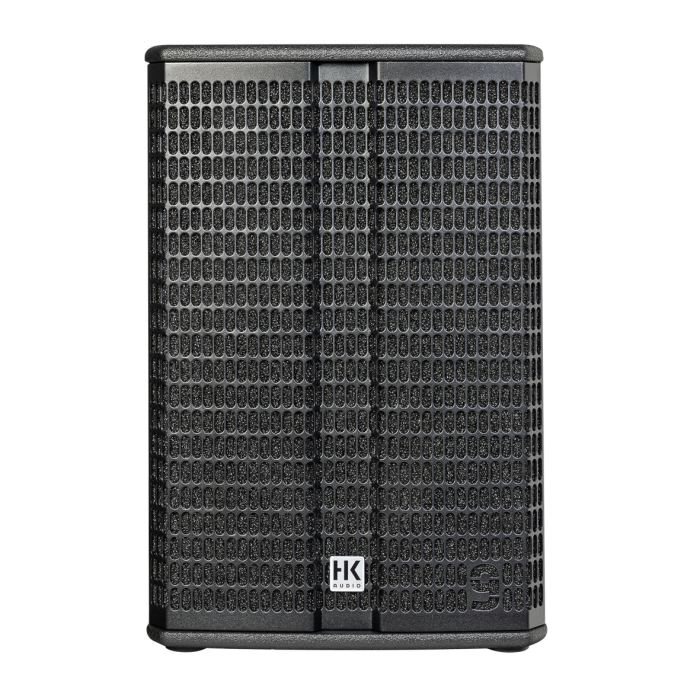

HK LINEAR-9-110-XA 700 Watt 10" Active Monitor

The HK LINEAR 9 110 XA is a compact yet powerful 10" active speaker designed for versatile stage and install use. It features an 80° x 60° rotatable CD horn optimized for near-field dispersion and is ideal as a front-of-house speaker or high-powered floor monitor. With 700 watts RMS of Class D bi-amped power, FIR filtering, advanced DSP, and network control via EtherCON, the 110 XA offers professional-level flexibility and sonic precision in a rugged, tour-ready housing.

Features

• 700W RMS Class D bi-amped power for reliable, high-output performance
• 10" woofer with 2.5" voice coil for clean, punchy mids and lows
• 129 dB peak SPL and 96 kHz sample rate for professional sound quality
• Rotatable 80° x 60° CD horn optimized for near-field dispersion
• FIR crossover at 2 kHz with steep 60 dB/oct slope
• Four DSP filter presets: Flat, Monitor, Low Cut, and Remote
• Remote-controllable 10-band EQ with HPF, LPF, polarity, delay, limiter & mute
• EtherCON network port with DSP CONTROL software (Windows/macOS)
• 30° monitor wedge angle and DuoTilt pole mount for flexible setup
• 5 rigging points (M8) for flown or bracket-mounted configurations
• Durable birch multiplex cabinet with textured PU black coating

Specifications

Acoustic Performance
- Max SPL (Avg @ 10% THD): 126 dB (half space, 70 Hz – 12 kHz avg)
- Max SPL (Peak @ 10% THD): 129 dB (half space)
- Frequency Response (±3 dB): 70 Hz – 19 kHz
- Frequency Response (-10 dB): 65 Hz – 20 kHz
- Crossover Frequency: 2 kHz FIR, 60 dB/oct
- Sample Rate: 96 kHz
- System Latency: < 2.6 ms
- Monitor Angle: 30°

Power & Electronics
- Amplifier Output: 700 W RMS
- Amplifier Type: Class D – bi-amped
- Power Consumption: 1 A nominal @ 100–240 V
- Mains Connection: 1 x PowerCon NAC3 In, 1 x PowerCon NAC3 Thru

Drivers
- Low/Mid: 1 x 10", 2.5" voice coil
- High: 1 x 1", 1.4" voice coil
- Horn: 80° x 60° rotatable CD horn

DSP & Control
- Inputs: 1 x XLR combo (balanced)
- Outputs: 1 x XLR Thru (balanced), 1 x XLR DSP Out
- Max Input Level: +20 dBu
- Filter Presets: Flat, Monitor, Low Cut, Remote
- DSP Features: 10-band EQ, HPF/LPF, polarity, level, delay, limiter, mute
- Network: 1 x EtherCON RJ45 (In), 1 x EtherCON RJ45 (Thru)
- Remote Software: DSP CONTROL (Windows, macOS)

Construction
- Housing: Birch multiplex
- Finish: Black PU coating
- Grille: 2 mm steel with black acoustic foam backing
- Handles: 2 x SingleGrip
- Pole Mount: DuoTilt 3° / 7°
- Rigging Points: 5 x M8 (AP-8)

Dimensions & Weight
- Dimensions (WxHxD): 36 x 54 x 31 cm (14.17" x 21.26" x 12.20")
- Weight: 16.5 kg (36.4 lbs)
