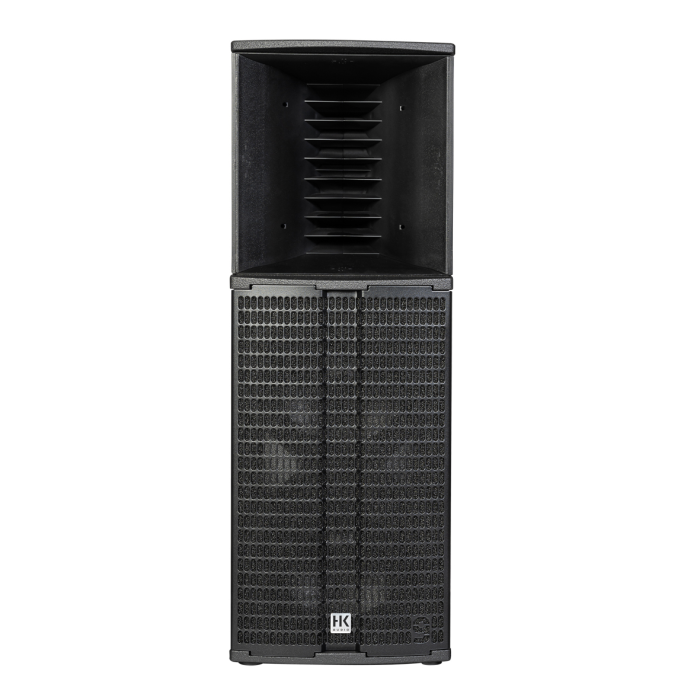

HK LINEAR-9-210-LTA 1000 Watt 2 x 10" Long Throw Speaker TGF33

$3,599.10
In stock
SKU
HKA-LINEAR9210LTA-OP
Brand New. Not available for curbside pickup. Online orders

Mint, Perfect, Open Box with Full HK Audio Warranty

The HK LINEAR 9 210 LTA is a high-performance, network-ready long-throw mid/high speaker engineered for scalable professional PA systems. With dual 10" woofers, a powerful 1.4" high-frequency driver, and a rotatable 60° x 25° multicell horn, this loudspeaker offers focused coverage and outstanding efficiency. With 2000 watts of program power and comprehensive DSP control—including clustering presets and full EQ—this speaker is ideal for large venues, line-array alternatives, or precision front-of-house reinforcement.

Features

  • 2000W program / 1000W RMS Class D amplification for powerful, clean output
  • Dual 10" woofers with 2.5" voice coils for punchy midrange clarity
  • Rotatable 60° x 25° multicell horn for long-throw, focused HF projection
  • 1.4" HF driver with 2.5" voice coil for high SPL clarity and precision
  • Peak SPL of 142 dB—ideal for large audiences and demanding venues
  • Integrated DSP with four presets: Stand-Alone, Cluster 2, Cluster 3, and Remote
  • Full DSP suite includes 10-band EQ, delay, polarity, HPF/LPF, limiter, and mute
  • Network control via dual EtherCON ports and optional software
  • 24-bit / 96 kHz digital signal processing with adjustable user settings
  • PowerCON in/out connectors and dual-angle pole mount
  • Durable wood enclosure with metal grille and ergonomic side handles
  • Covered by HK’s limited 5-year warranty

Specifications

Acoustic Performance
- Max SPL (Peak, Half Space): 142 dB
- Frequency Response (±3 dB): 105 Hz – 19 kHz
- Frequency Range (-10 dB): 84 Hz – 20 kHz
- Crossover Frequency: 1.3 kHz
- Coverage Angle: 60° H x 25° V (rotatable horn)

Power & Amplification
- Amplifier Output: 1000 W RMS / 2000 W Program / 4000 W Peak
- Amplifier Type: Class D
- AC Input: 100–240 V AC, 50/60 Hz
- Current Consumption: 2.5 A typical
- Power Connection: 1 x PowerCON In, 1 x PowerCON Out

Drivers
- LF: 2 x 10" woofers with 2.5" voice coils
- HF: 1 x 1.4" compression driver with 2.5" voice coil
- Horn: Rotatable multicell, 60° x 25°

DSP & Control
- Sampling Rate: 96 kHz / 24-bit
- DSP Functions: 10-band parametric EQ, HPF/LPF, limiter, mute, delay, polarity, level, phase
- Filter Presets: Stand-Alone, Cluster 2, Cluster 3, Remote
- DSP Control Software: Compatible with optional PC software (Windows/macOS)
- System Alignment: Delay, phase adjustment, peak limiter
- Inputs: 1 x Combo XLR-1/4" TRS (balanced/unbalanced line input)
- Outputs: 1 x XLR Thru, 1 x XLR DSP Out
- Network I/O: 2 x EtherCON RJ45 (In/Out)
- USB / Wireless / Mobile App: Not supported

Construction
- Enclosure Type: Bass-reflex, wood
- Finish: Black with metal grille
- Handles: 1 per side
- Pole Mount: Dual-angle bottom socket

Dimensions & Weight
- Dimensions (WxHxD): 34 x 96 x 39 cm (13.4" x 37.8" x 15.4")
- Weight: 33 kg (72.8 lbs)
