HK LINEAR-SUB-4000 2400 Watt 2 x 18" Passive Subwoofer TGF33

$2,339.10

In stock

SKU

HKA-LINEARSUB4000-OP

Brand New. Not available for curbside pickup. Online orders

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Details

Mint, Perfect, Open Box with Full HK Audio Warranty

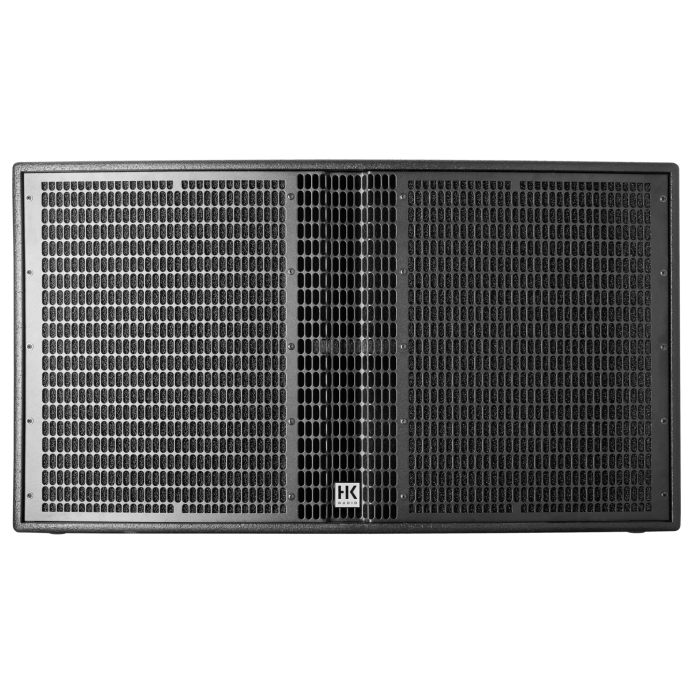

The HK LINEAR SUB 4000 is a high-powered 18" dual vented bandpass subwoofer designed to deliver thunderous low-frequency response down to 31 Hz. Built to perfectly complement all LINEAR 5 full-range and mid/high units—especially the LINEAR 5 LTS long-throw system—it’s ideal for large venue applications requiring serious low-end extension. With 2400W program handling and up to 137 dB peak SPL, this passive subwoofer is a powerful addition to any performance rig or installed system. Compatible filter presets are available for Lab.Gruppen IPD and PLM 12K44 controllers.

Features

2400W program / 1200W RMS power handling for high-impact low-end response
18" woofer with 4" voice coil and ventilated gap for superior thermal performance
Extended frequency response down to 31 Hz (-10 dB) for deep bass punch
Peak SPL up to 137 dB for high-pressure, distortion-free output
Compatible with all LINEAR 5 speakers and the LINEAR 5 LTS system
Filter presets available for Lab.Gruppen IPD and PLM 12K44 amps
Dual SpeakON NL4 connectors with switchable pin assignment (1+/1– or 2+/2–)
8 ergonomic MultiGrip handles for easy transport and rigging
Dual M20 threaded pole mounts for flexible top box mounting
Heavy-duty birch multiplex enclosure with black acrylic enamel finish

Specifications

Acoustic Performance
- Power Handling (RMS): 1200 W
- Power Handling (Program): 2400 W
- Frequency Response (±3 dB): 39 Hz – X-over
- Frequency Response (-10 dB): 31 Hz – X-over
- Max SPL (Avg @ 10% THD): 135 dB (half space)
- Max SPL (Peak @ 10% THD): 137 dB (half space)
- Sensitivity (1W/1m): 106 dB (half space)
- Impedance: 4 ohms
- Crossover Frequency: 100 Hz (active X-over with controller amp; adjustable for sub-low use)

Driver
- LF Driver: 1 x 18", 4" voice coil with advanced ventilated voice coil gap

Connectivity
- Connectors: 2 x Speakon NL4
- Pin Assignment: Switchable between 1+/1– and 2+/2–

Construction
- Housing: Birch multiplex
- Finish: Black acrylic enamel
- Grille: 2 mm steel grille backed with black acoustic foam
- Handles: 8 x MultiGrip
- Pole Mounts: 2 x M20 threaded inserts

Dimensions & Weight
- Dimensions (WxHxD): 91 x 51 x 81 cm (35.83" x 20.08" x 31.89")
- Weight: 57.1 kg (125.9 lbs)
