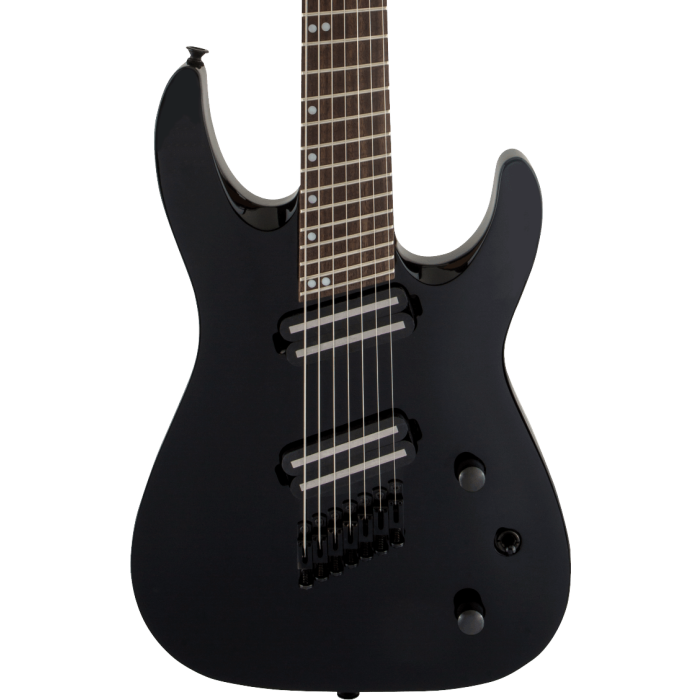

Jackson X Series Dinky Arch Top DKAF7 MS Electric Guitar. Laurel FB, Multi-Scale, Gloss Black

Shred in ergonomic comfort and style with the Jackson X Series Dinky® Arch Top DKAF7 MS. A high-performance evolution of the electric guitar, this 7-string multi-scale model unlocks the possibilities of an instrument by accommodating two scale lengths on one fingerboard, thus improving overall playing comfort while improving tension and intonation.



The DKAF7 features a 25.5"-27" multi-scale length, poplar body with an arched top, bolt-on maple neck with graphite reinforcement and scarf joint, 12"-16" compound radius fingerboard with 24 jumbo frets and offset dot inlays, Jackson die-cast tuners and 4x3 AT-1 headstock.



Dual Jackson uncovered 7-string blade humbucking pickups power this metal beast and can be shaped by a three-way toggle switch and single volume and tone controls.



To help improve intonation, the guitar has been equipped with Jackson designed individual bridge saddles, staggered to accommodate for the two scale lengths.



The DKAF7 MS is available in Gloss Black or Stained Mahogany with black hardware.



Specifications:



- Series: X

- Orientation: Right-Hand

- Color: Gloss Black

- Country of Origin: Indonesia



- Headstock: Jackson® AT-1 4x3 (4 Over/3 Under)

- Neck Material: Maple

- Neck Finish: Satin

- Neck Construction: Bolt-On with Graphite Reinforcement and Scarf Joint

- Fingerboard Radius: 12"-16" Compound Radius (304.8 mm to 406.4 mm)

- Fingerboard Material: Laurel

- Position Inlays: Offset Pearloid Dot

- Number of Frets: 24

- Truss Rod: Dual-Action

- Truss Rod Nut: Truss Rod Adjustment at Nut

- String Nut: Black Plastic

- Nut Width: 1.875" (47.6 mm)



- Body Material: Poplar

- Body Finish: Gloss

- Body Shape: Dinky®



- Bridge: Staggered Individual Saddles

- Pickguard: None

- Pickup Covers: Black

- Control Knobs: Dome-Style

- Switch Tip: Black

- Hardware Finish: Black

- Tuning Machines: Jackson® Sealed Die-Cast

- Strings: Nickel Plated Steel (.009-.054 Gauges)

- Neck Plate: 4-Bolt (Recessed Screws)

- Strap Buttons: Standard



- Bridge Pickup: Jackson® Uncovered 7-String Blade Humbucking

Neck Pickup: Jackson® Uncovered 7-String Blade Humbucking

- Pickup Configuration: HH

- Controls: Volume, Tone



Switching:

- Position 1: Bridge Pickup

- Position 2: Bridge and Neck Pickups

- Position 3: Neck Pickup



- Scale Length: 25.5" - 27" Multi-Scale (648 mm - 686 mm)

- Fret Size: Jumbo

- Dimensions: 4.50 x 20.75 x 49.50 in

- Shipping Weight: 14.45 lb



- Saddle Height Wrench: Yes

- Truss Rod Wrench: Yes



- Disclaimer: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

- Commodity Code: 9207901000



The Jackson X Series Dinky® Arch Top DKAF7 MS combines ergonomic design, tonal versatility, and powerful pickups to deliver the ultimate 7-string performance. From complex riffs to rich, resonant cleans, this guitar meets the demands of modern players across all genres.
