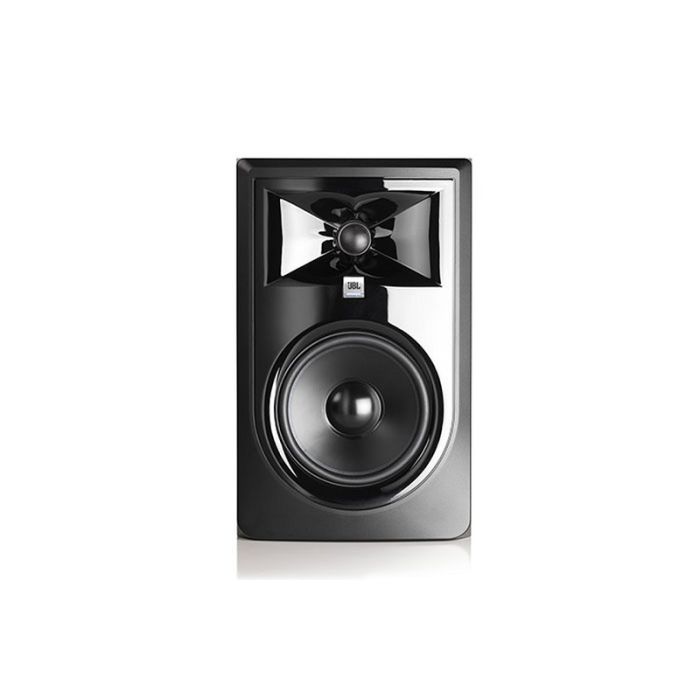

JBL 306P-MKII Powered Two Way Studio Monitors. 6"
$199.00
In stock
SKU
JBL-306PMKII
Brand New. Not available for curbside pickup. Online orders only.
Powered 6" Two-Way Studio Monitor
The next-generation JBL 306P MkII powered studio monitor makes legendary JBL performance available to every studio. With the revolutionary JBL Image Control Waveguide and refined transducers, JBL 306P MkII offers stunning detail, precise imaging, a wide sweet spot and impressive dynamic range that enhances the critical listening capabilities of any modern workspace. Featuring patented technologies derived from the JBL 7 Series and M2 Master Reference Monitors and sporting a sleek, modern design, JBL 306P MkII delivers outstanding performance and an enjoyable mix experience at an accessible price.
General Specifications
LF Driver Size: 165 mm (6.5")
HF Driver Size: 25 mm (1")
HF Driver Type: Soft dome
Crossover: 1425Hz 4th order acoustic Linkwitz-Riley
Power Configuration: Bi-amplified
HF Driver Power Amp: 56 W Class D
LF Driver Power Amp: 56 W Class D
Frequency Response: 47Hz – 20kHz (±3dB)
Frequency Range: 39Hz – 24kHz (-10dB)
Low Frequency Extension: 39Hz (-10dB)
Maximum Continuous SPL: 92dB
Maximum Peak SPL: 110dB
Maximum Peak Input Level: +6dBV / +20.3dBu (-10dBV / +4dBu)
System Distortion Criteria: <10% THD at maximum output with full compressor / limiter engagement
Electrical Distortion Criteria: 0.2% THD @ 1kHz / 2.83VRMS output; <1% THD @ 1kHz, full rated output
Signal to Noise Ratio: 75dBA (A-Weighted), 70dBr (unweighted), relative to 2.83VRMS output
Coverage Pattern: 120° x 90° (horizontal x vertical)
HF Trim Control: -2dB, 0dB, +2dB
Boundary EQLF Shelf @ 50Hz
AC Input Voltage: 100 – 240VAC (±10%), 50 / 60Hz
Dimensions
Height: 361 mm (14.2")
Width: 224 mm (8.8")
Depth: 282 mm (11.1")
Net Weight: 6.1 kg (13.42 lbs)
Design
Enclosure Type: Ported
Enclosure Construction: 15mm MDF
Enclosure Finish: Matte black PVC
Baffle Construction: Injection-molded structural ABS
Audio Input
Analog Input Types: 1 x XLR female, 1 x TRS female, balanced
Input Sensitivity: 92dB / 1m (-10dBV Input)
