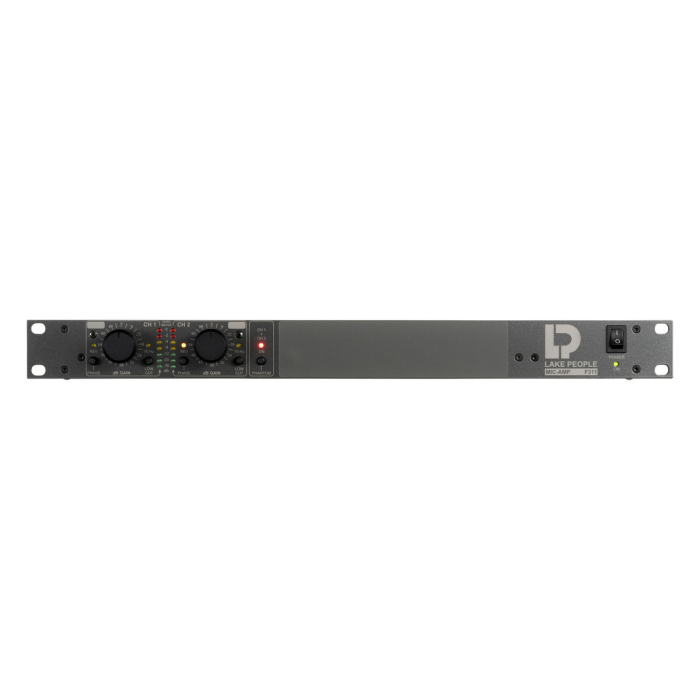

Lake People LP-F311-D 2 Channel Microphone Pre-Amplifier

The F-SERIES from Lake People covers absolutely high-level audio products with outstanding features, best technical data and perfect craftsmanship. MIC-AMP F311-D is a two-channel ultra-low noise microphone preamplifier with excellent audio performance and more than common features. Ideal for "on-location" recording, bypassing insufficient mixing console preamps or " direct-to-tape" sessions. Gain is settled with costly 12-step switches and so exactly reproducible and equal for both channels. The simple and cheap gain adjustment via potentiometers we leave to the competition. The amp is mains powered via a ISC/CEE socket with either 230 or 115 V AC (internally switchable). Take a look at ADC F444 to create a second-to-none compact recording device !

Features

• Dual-channel ultra-low-noise microphone preamp with audiophile-grade circuitry
• Precision gain control via 12-position stepped switches (0 to +66 dB in 6 dB increments)
• Electronically balanced XLR inputs and outputs for pristine signal integrity
• Unbalanced RCA outputs for flexible connectivity
• Switchable 48V phantom power for each channel
• Built-in Lo-Cut filter at 70 Hz (12 dB/octave) eliminates low-end rumble
• Phase reverse switch for correcting polarity issues
• 7-segment LED meter per channel (-36 dBr to 0 dBr), internally calibratable
• Wideband frequency response from 5 Hz to 150 kHz (-3 dB)
• Internal power supply with selectable 115/230V operation
• Built into a durable 19" rackmount (1U) chassis

Specifications

Audio Performance
- Max Input Level: > +21 dBu
- Max Output Level: > +25 dBu
- Mic Gain Range: 0 to +66 dB (12-step, 6 dB increments)
- Input Impedance: 5 kΩ
- Output Impedance: < 30 Ω
- Frequency Response: 5 Hz – 150 kHz (-3 dB)
- Noise Floor: -129 dB (@ 60 dB gain)
- THD+N (@ -1 dBFS): < 0.001 %

Connectivity
- Inputs: 2 x XLR (balanced)
- Outputs: 2 x XLR (balanced), 2 x RCA (unbalanced)
- Metering: 7-segment LED per channel (-36 to 0 dBr)
- Controls & Features
- Gain: Stepped switches, 12 positions
- Phantom Power: 48V, switchable per channel
- Lo-Cut: 70 Hz, 12 dB/octave
- Phase Reverse: Yes (per channel)

Power & Physical
- Power Supply: Internal 230V / 115V AC (switchable)
- Dimensions (W x H x D): 483 x 44 x 166 mm (19” rack, 1U)
- Weight: Approx. 6.2 lbs (2.8 kg)

In the Box
- MIC-AMP F311-D unit
- IEC Power Cable
- User Manual
