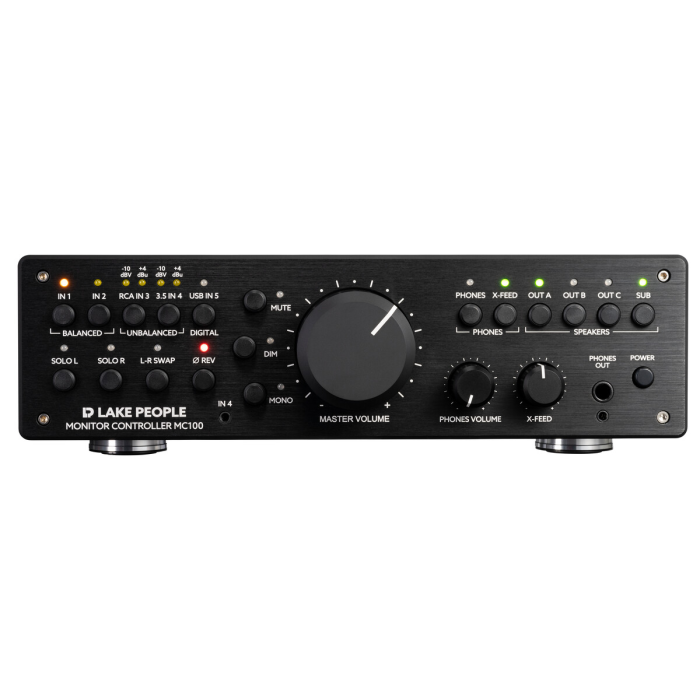

Lake People LP-MC100-PRO Monitor Controller

The Lake People MC100 PRO is a high-end monitor controller built for serious audio professionals. It offers extensive connectivity, precise relay-based volume control, advanced signal manipulation features, and ultra-clean performance. Whether you're working in a mixing suite, mastering room, or broadcast environment, the MC100 PRO delivers uncompromising clarity and control. With high-resolution USB audio, three monitor outputs plus a sub out, two slave outputs, a powerful headphone section with crossfeed, and true balanced architecture, this controller is an indispensable studio centerpiece.

Features

• Professional-grade monitor controller with ultra-low noise and distortion
• Five stereo inputs including high-resolution USB (PCM up to 384 kHz / 32-bit, DSD 256)
• Three balanced monitor outputs plus dedicated subwoofer output
• 256-step relay-controlled volume attenuator with massive 50 mm knob
• Advanced signal manipulation: Mono, Solo L/R, Swap, Phase Reverse, Mute, Dim
• High-powered headphone amp with independent volume and crossfeed (X-Feed)
• Compact, rugged aluminum enclosure with front-panel controls and LED indicators
• Designed and made in Germany for professional audio environments

Specifications

Inputs
- Stereo Analog (Balanced): 2 x XLR
- Stereo Analog (Unbalanced): 1 x RCA (rear), 1 x 3.5 mm (front)
- USB Audio: PCM up to 384 kHz / 32-bit, DSD 256 (rear USB-B port)

Outputs
- Monitor Outputs: 3 x Stereo XLR (A/B/C)
- Subwoofer Output: 1 x Mono XLR
- Slave Outputs: 2 x Stereo XLR (bypasses volume control)
- Headphone Outputs: 1 x 6.3 mm TRS, 1 x 3.5 mm TRS (both unbalanced)

Audio Performance
- Frequency Response: 5 Hz – 70 kHz (-0.5 dB)
- Dynamic Range: > 126 dB
- THD+N: < -100 dB
- Crosstalk: < -80 dB

Volume Control
- Relay-controlled attenuator (256 steps)
- RK27 potentiometer with 41 detents

Headphone Section
- Dedicated headphone amp with independent volume
- X-Feed crossfeed circuit with adjustable depth

Controls
- Input select: 5 inputs (individually selectable)
- Output group switching (A/B/C/Sub)
- Stereo manipulation: Solo L/R, Swap, Mono, Phase Reverse
- Dim (-20 dB) and Mute switches

Construction
- Enclosure: Black anodized aluminum
- Front panel: 3 mm thick
- Form Factor: Desktop
- Dimensions: 290 x 80 x 256 mm (W x H x D)
- Power Supply: External 16–20 V, max. 45 VA

Included Items
- Lake People MC100 PRO Monitor Controller
- External Power Supply
- User Manual
