Nobles ODR-1 Natural Overdrive Guitar Effects Pedal - Green - SN0707
PRE-OWNED
Super Fast Same Day Shipping
Overall Excellent Condition. Has Velcro on the Bottom. Looks, Works, and Sounds Great!!

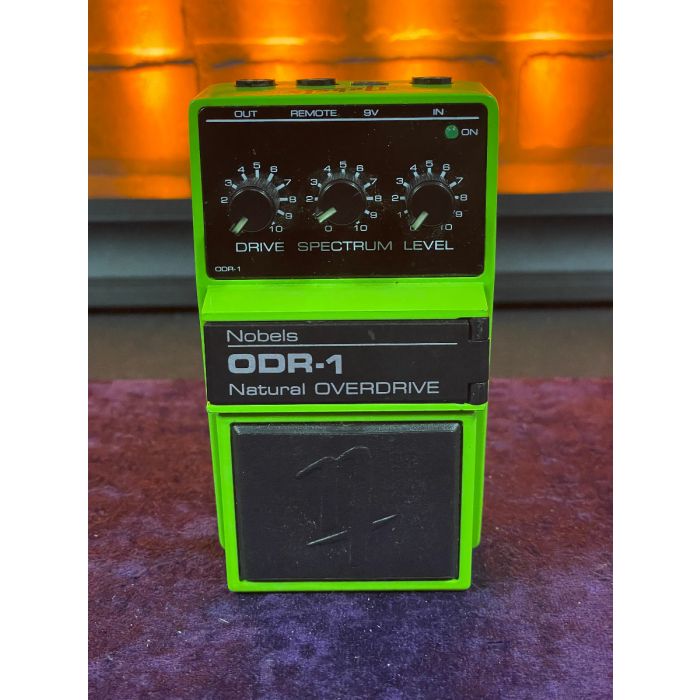

The Nobels ODR-1 is an analog overdrive pedal with a "natural" overdrive sound. Key features include Drive, Spectrum (or Tone), and Level controls, along with a bass cut switch. It can be powered by a 9V battery or 9-18V DC power supply.
Here's a more detailed breakdown of the ODR-1's specifications:
Controls:
Drive: Controls the amount of overdrive or distortion.
Spectrum: A dual filter control that shapes the overall tone or EQ.
Level: Adjusts the output volume of the pedal.
Bass Cut Switch: A switch that helps to tame the low end frequencies.
Inputs/Outputs:
Input: 6.3 mm jack.
Output: 6.3 mm jack.
Remote Output: 6.3 mm jack for remote switching.
Power:
Power Source: 9V battery or 9-18V DC power supply (center negative).
Current Draw: 11mA.
Voltage: 9-18V.
Power Supply: Sold separately.
Other Features:
Bypass: Buffered bypass.
Housing: Solid metal housing.
Dimensions: 74 x 126 x 58 mm.
Weight: 450g (without battery).
Status LED: Indicates when the effect is on.
Foot Switch: For engaging and bypassing the effect.
Input Impedance: 1Mohm.
Output Impedance: 2Kohm.
Max Input: +6dB.
