Sennehsier 506987 XSW 1-ME3 Wireless Head Mic Set
Enhance your performance with the Sennheiser XSW 1-ME3-A Wireless Headmic Set, meticulously engineered for first-time users and professionals with budget considerations who do not want to compromise on quality. This high-quality wireless microphone system is designed for seamless integration into presentations, offering a professional and innovative solution for those seeking hands-free audio delivery.

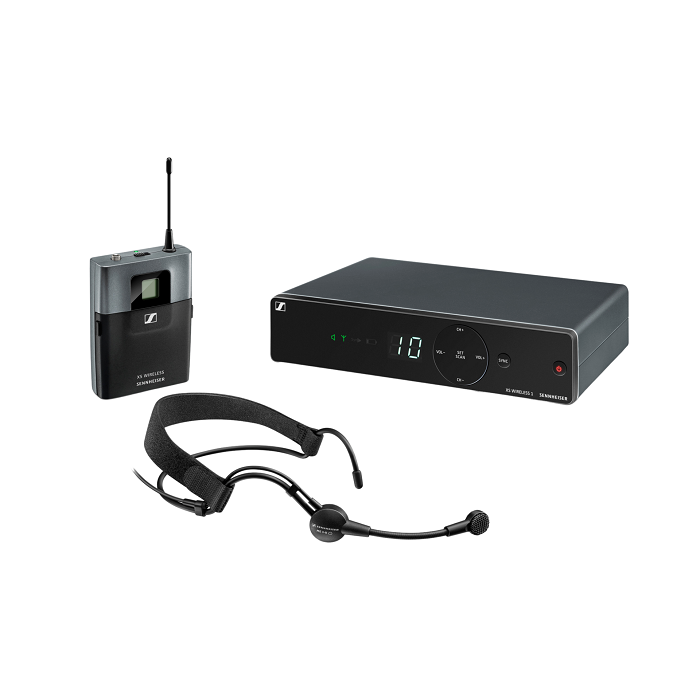

The set includes the SK-XSW bodypack transmitter, renowned for its compact design and durable construction, ensuring reliable performance even in the most demanding environments. The ME3-II cardioid condenser headmic provides crystal-clear audio capture with its precise cardioid pickup pattern, minimizing background noise and feedback for a focused and impactful presentation.
Experience the convenience of the EM-XSW 1 switching diversity receiver, which boasts an intuitive design with integrated antennas for a sleek appearance and reduced setup complexity. The receiver's antenna-switching diversity reception ensures a stable and high-quality signal, while the automatic frequency management and synchronization facilitate a quick and effortless setup process.
With selectable UHF frequencies within a large bandwidth of 548-572MHz, this system offers flexibility and adaptability to various venues and situations. The ability to operate up to 10 compatible channels simultaneously allows for multiple presenters or performers to use the system without interference, making it a reliable choice for events of all sizes.
The XSW 1-ME3-A set is crafted with a durable plastic receiver housing and features icon-based indicators for easy operation. The rack-mount receiver is a testament to Sennheiser's commitment to providing professional-grade equipment that can be easily organized and installed in a variety of settings.
Whether you're a singer, presenter, or instrumentalist, the XSW 1-ME3-A Wireless Headmic Set from Sennheiser is designed to free you from the constraints of cables, allowing you to focus on your performance with confidence. With its excellent live sound, robust build, and reliable transmission, this system is a testament to Sennheiser's decades of German engineering excellence, bringing their signature sound quality within reach for a broader audience.
Receiver: Power Supply
12 VDC nom. / 300mA
Receiver: AF Frequency Response
50-16000Hz (-3dB)
Receiver: Principle
Double superheterodyne
Transmitter: Power Supply
2x AA size batteries, 1.5V
Transmitter: Adjustment Range
0 to -30dB, adjustable in 10dB steps
Microphone: Type
Condenser
Microphone: Total Harmonic Distortion
Microphone: Pick-Up Pattern
Cardioid
Microphone: Signal-To-Noise Ratio
>/-103 dBA
Microphone: RF Output Power
10mW
Microphone: Switching Bandwidth
Up to 24MHz
Microphone: Modulation
Wideband FM
Microphone: Output Voltage
1/4" (6.3mm) Jack Socket (Unbalanced): +6 dBu, XLR Socket (Balanced): +12 dBu
Microphone: Housing
Rugged ABS Housing
Microphone: Frequency
8 frequency banks, each with up to 10 factory-preset channels
Microphone: Frequency Range
A: 548-572MHz
Microphone: Sensitivity
<3 MuV at 52dB (A) rms S/N
Microphone: SPL for Peak Deviation
150dB
Microphone: Squelch
Adjustable from 3 dBMuV to 28 dBMuV (combined with pilot tone)
Microphone: Synchronization
2.4GHz, Low Power OQPSK (only active during synchronization)
Microphone: Input Sensitivity
1.5mV / Pa
Microphone: Audio Adjustment Range
45dB, adjustable in 5-dB steps
Microphone: Line / Mic Level
20dB, switchable
Microphone: Operating Temperature Range
0 to 40 deg. C (32 to 104 deg. F)
Microphone: Storage Temperature Range
-20 to 70 deg. C (-4 to 158 deg. F)
Microphone: Diversity Reception
Antenna switching diversity via internal antennas
Dimensions
Receiver: Approx. 200 x 42 x 127mm (7.87 x 1.65 x 5.00")
Transmitter: Approx. 71 x 96 x 28mm (2.80 x 3.78 x 1.10")
Weight
Receiver: Approx. 340g (11.99oz)
Transmitter: Approx. 95g (3.35oz)
