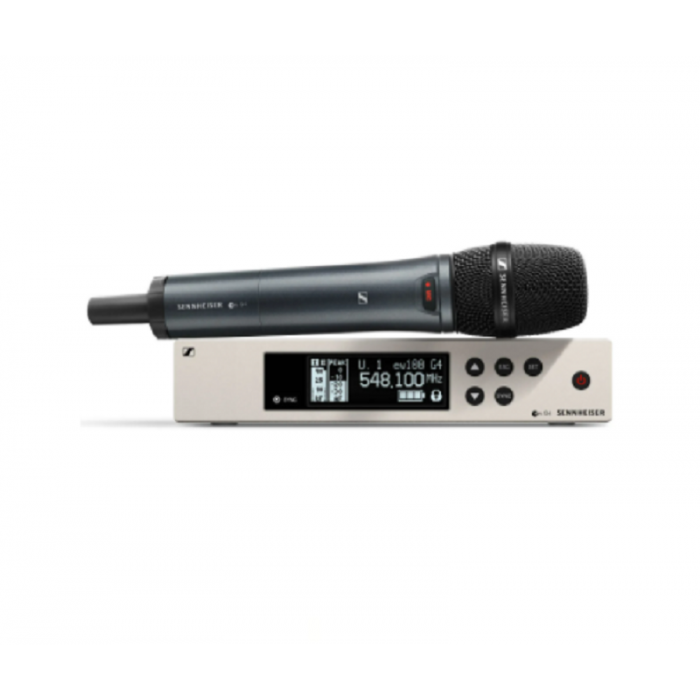

Sennheiser 507877 EW 100 G4-835-S-A Wireless Mic and Rackmount Receiver

Cardioid, dynamic wireless system for singers or presenters. The first choice for both sound designers and occasional users because of its simplicity.

Now even more simple, flexible and reliable: The 100 series has become the first choice for both sound designers and occasional users because of its simple operating concept – and because the system makes no compromises in terms of live sound.

• Engineered for professional live sound: Rugged all-in-one wireless system for singers and presenters.

• State-of-the-art live sound featuring Sennheiser‘s renowned e 835, e 845, e 865, e 935, e 945 capsules on a lightweight aluminum transmitter with integrated mute switch

• True diversity half-rack receiver in a full-metal housing with intuitive LCD display for full control

• Easy and flexible wireless synchronization between transmitter and receiver via infrared

• Fast frequency allocation for up to 12 receivers via new linking functionality

• Up to 20 compatible channels

• Up to 42 MHz bandwidth with 1680 selectable frequencies, fully tunable in a stable UHF range

• Transmission Range: up to 100 meters / 300 feet

• High RF output power (up to 30 mW) depending on country regulations

• Frequency range

  A: 516 - 558 MHz

• Dimensions

  Approx. 190 x 212 x 43 mm

• Compander

  Sennheiser HDX

• THD, total harmonic distortion

  ≤ 0.9 %

• Weight

  Approx. 980 g

• Audio output

  6.3 mm jack socket (unbalanced): +12 dBu

  XLR socket (balanced): +18 dBu

• Signal-to-noise ratio

  ≥ 110 dBA

• Switching bandwidth

  up to 42 MHz

• Peak deviation

  ±48 kHz

• Nominal deviation

  ±24 kHz

• Modulation

  Wideband FM

• Power supply

  12 V DC

• Antenna connector

  2 BNC sockets

• Current consumption

  300 mA

• Adjacent channel rejection

  Typically ≥ 65 dB

• Intermodulation attenuation

  Typically ≥ 65 dB

• Receiving frequency

  Max. 1680 receiving frequencies, adjustable in 25 kHz steps 20 frequency banks, each with up to 12 factory-preset channels, no intermodulation 1 frequency bank with up to 12 programmable channels

• RF sensitivity

  < 2.5 μV for 52 dBA eff S/N

• Squelch

  low: 5 dBµV middle: 15 dBµV high: 25 dBμV

• Equalizer

  Preset 1: Flat

  Preset 2: Low Cut (-3 dB at 180 Hz)

  Preset 3: Low Cut/High Boost (-3 dB at 180 Hz, +6 dB at 10 kHz)

  Preset 4: High Boost (+6 dB at 10 kHz)

• Temperature Range

  -10 °C to +55 °C

• Receiver Principle

  True diversity

• Blocking

  ≥ 70 dB
