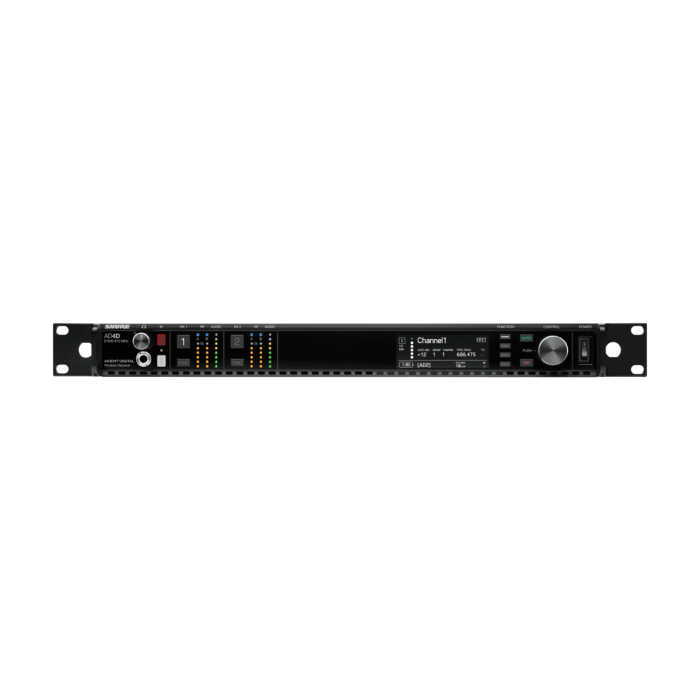

Shure AD4D-DC=-B AD Dual CH DC Rx L/PTS 606-810 MHz

Compatible with all AD series and ADX series transmitters.

The AD4D Two-Channel Digital Receiver sets a new standard in spectral efficiency. Groundbreaking performance features include wide tuning, low latency, and High Density (HD) mode, ensuring solid performance in the most challenging RF environments. Networked control and signal routing options bring a new level of management and flexibility to your entire workflow.

Features

• Wide tuning range up to 184 MHz
• True digital diversity reception per channel for drop-out resistance
• Networked control with Wireless Workbench® software and ShurePlus™ Channels iOS app
• Front panel headphone jack enables Dante™ Cue and Dante™ Browse monitoring
• Configurable Ethernet switch for redundant Dante or AES67 digital output
• AES3 output
• Channel Quality meter displays RF signal-to-noise
• Locking AC connectors
• DC module version available to support redundant power
• Axient Digital offers dual and quad receiver options that open the door to a full range of features, from high-performance RF to transparent digital audio.

Note: When purchasing separate wireless components, please match their frequency bands to ensure proper system operation.

Specifications

Wireless Technology
- Frequency Range: 606–810 MHz (Band B)
- Tuning Bandwidth: 184 MHz
- Diversity: True Digital Diversity
- Maximum Simultaneous Channels: Varies by region; increased in HD Mode

Audio Outputs:
- 2x XLR (balanced analog)
- 1x AES3 (digital XLR)

Connectivity
- Network Ports: 2x RJ45 Ethernet (Dante™/AES67, Control)
- Headphone Out: 1x 1/4" (monitoring, front panel)
- RF Antenna Inputs: 2x BNC
- Power: Locking DC input for external power

Control & Integration
- Software: Wireless Workbench®, ShurePlus™ Channels (iOS)
- Network Protocols: Dante™, AES67, AMX/Crestron support
- Compatible Transmitters: All AD and ADX series handheld and bodypack transmitters

Audio Performance
- Frequency Response: 20 Hz – 20 kHz ±1 dB
- Dynamic Range: >120 dB (A-weighted)
- Latency: 2 ms

Construction
- Housing: Durable all-metal enclosure
- Mounting: 1RU rackmount (hardware included)

Dimensions
- Height: 1.72 in (44 mm)
- Width: 19 in (483 mm)
- Depth: 12 in (305 mm)

Weight
- Approx. 7.2 lbs (3.27 kg)
