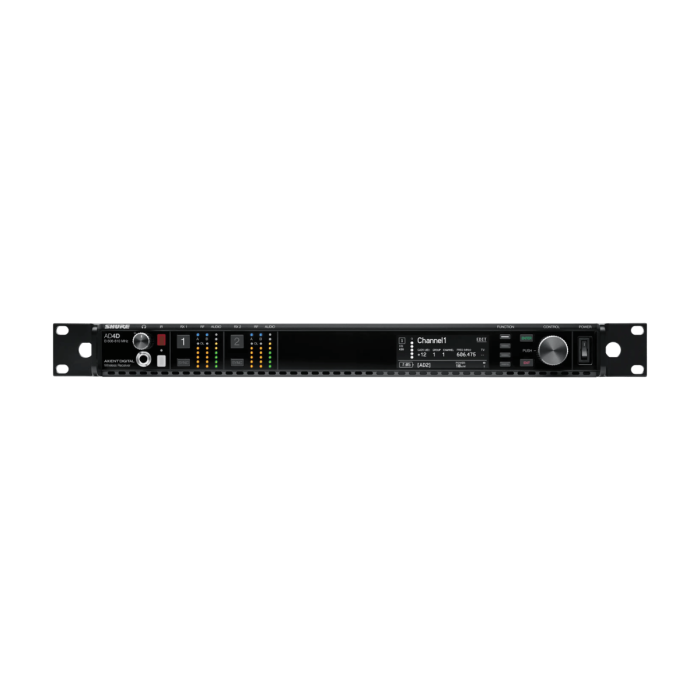

Shure AD4DNP=-A Dual-channel receiver. Includes locking power and jumper cables, rackmount kit, and user guide. (470-636 MHz)

Compatible with all AD series and ADX series transmitters.

Axient Digital offers dual and quad receiver options that open the door to a full range of features, from high-performance RF to transparent digital audio.

The AD4D Two-Channel Digital Receiver sets a new standard in spectral efficiency. Groundbreaking performance features include wide tuning, low latency, and High Density (HD) mode, ensuring solid performance in the most challenging RF environments. Networked control and signal routing options bring a new level of management and flexibility to your entire workflow.

Features

• Wide tuning range up to 184 MHz
• True digital diversity reception per channel for drop-out resistance
• Networked control with Wireless Workbench® software and ShurePlus™ Channels iOS app
• Front panel headphone jack enables Dante™ Cue and
• Dante™ Browse monitoring
• Configurable Ethernet switch for redundant Dante or
• AES67 digital output
• AES3 output
• Channel Quality meter displays RF signal-to-noise
• Locking AC connectors
• Frequency Band - A
• Power Supply included

Specifications

Receiver Type:
- Dual-channel digital receiver
- Compatible with Axient Digital Series transmitters (AD, ADX)

Tuning Range:
- 470–636 MHz (Band A)
- Up to 184 MHz switching bandwidth

RF Performance:
- Digital diversity reception for each channel
- High Density (HD) mode for maximizing channel count
- Advanced front-end filtering and signal integrity

Audio Outputs:
- Analog balanced (XLR)
- AES3 digital output
- Dante™ and AES67 via dual Ethernet ports

Monitoring & Control:
- Front-panel headphone jack
- Full control via Wireless Workbench® software and ShurePlus™ Channels app (iOS)
- Channel quality meter for RF health
- Front-panel and networked user control

Power:
- Locking AC power connector
- DC power module support (optional for redundancy)
- Power supply included

Construction:
- Full 1RU rackmount chassis
- Durable metal enclosure
- Includes rackmount hardware

In the Box
- 1 AD4DNP=-A Dual-Channel Receiver
- 1 Power Supply with Locking Connector
- 1 Jumper Cable
- 1 Rackmount Kit
- 1 User Guide

Note: Be sure to match transmitter and receiver frequency bands when purchasing separately to ensure full system compatibility.
