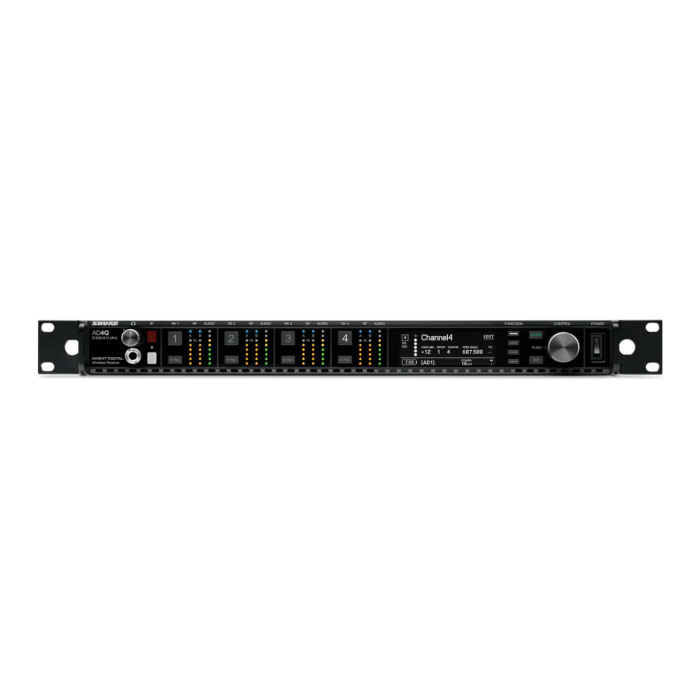

Shure AD4Q-DC=-A AD Quad CH DC Rx L/PTS 470-636 MHz

Compatible with all AD series and ADX series transmitters.

• Wide tuning range up to 184 MHz
• True digital diversity reception per channel for drop-out resistance
• Networked control with Wireless Workbench® software and ShurePlus™ Channels iOS app
• Quadversity mode for extended antenna coverage and improved RF signal-to-noise
• Front panel headphone jack enables Dante™ Cue and Dante™ Browse monitoring
• Configurable Ethernet switch for redundant Dante or AES67 digital output
• Switchable XLR and AES3 outputs
• Channel Quality meter displays RF signal-to-noise
• Locking AC connectors
• DC module version available to support redundant power
• Frequency Band - A

Axient Digital offers dual and quad receiver options that open the door to a full range of features, from high-performance RF to transparent digital audio.

The AD4Q Four-Channel Digital Receiver sets a new standard in spectral efficiency. Groundbreaking performance features include wide tuning, low latency, High Density (HD) mode, and Quadversity, ensuring solid performance in the most challenging RF environments. Networked control, AES3 + AES67 + Dante™ output, and signal routing options bring a new level of management and flexibility to your entire workflow.

Specifications

Tuning & Frequency:
- Tuning Range: Up to 184 MHz
- Frequency Band: A
- Receiver Type: Four-channel digital diversity

Audio Outputs:
- Analog: 4 x XLR
- Digital: AES3, Dante™, AES67 (via Ethernet)

Network Control:
- Ethernet: Configurable switch
- Software Compatibility: Shure Wireless Workbench®, ShurePlus™ Channels (iOS)
- Monitoring: Front-panel headphone jack with Dante Cue/Browse

Power:
- AC: Locking connectors
- Optional: DC module version available for redundant power

Additional Features:
- Quadversity support
- High Density mode
- Channel Quality metering
- Rack Size: 1U (four channels)

Note: When purchasing separate Shure wireless components, always ensure frequency band compatibility for proper system operation.
