Shure ADX2/K9B=-G57 ADX HH 470-616 MHz

ADX2/K9, like all ADX transmitters, sets the stage for exceptional performance, with wide tuning up to 184 MHz, interference protection, advanced rechargeability, streamlined design, and ShowLink remote control for real-time parameter adjustments right from the booth.

Features

• Durable, moisture-resistant, lightweight metal case in black finish
• Up to 9 hours of runtime with SB920A rechargeable battery
• External contacts for docked charging with optional fully covered radome
• Diversity ShowLink enabled for remote transmitter control and automatic interference avoidance
• Two transmission modes: Standard for optimal coverage and new High Density for maximum system channel count and robust coverage
• Encryption-enabled, secure transmission
• Frequency Band - G57

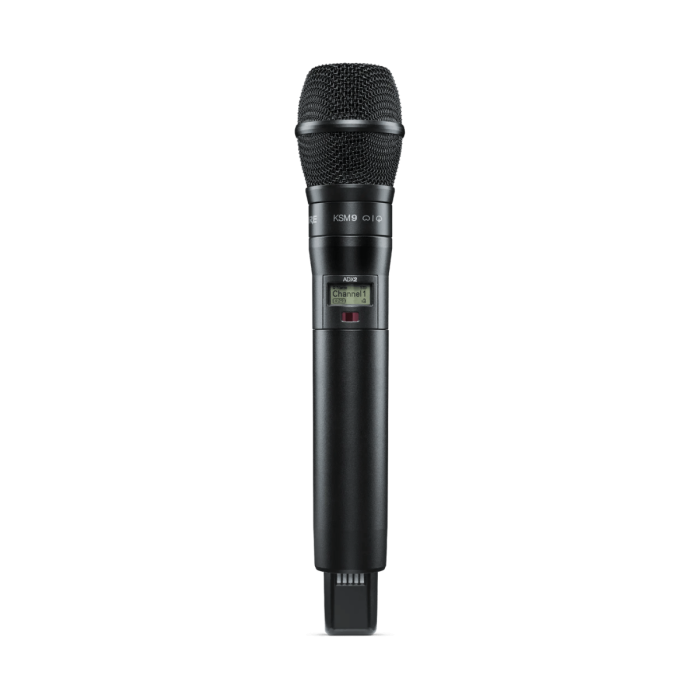

The ADX2/K9 is a handheld wireless microphone transmitter compatible with Axient® Digital Wireless Systems.

Note: When purchasing separate wireless components, please match their frequency bands to ensure proper system operation.

Specifications

Microphone Capsule
- Capsule Type: Dynamic
- Model: K9
- Polar Pattern: Cardioid

RF Performance
- Frequency Range: 470–616 MHz (G57)
- Tuning Bandwidth: Up to 184 MHz
- Transmission Modes: Standard, High Density
- Encryption: AES-256
- ShowLink® Support: Enabled
- RF Output Power: Selectable (region dependent)

Power & Battery
- Battery Type: Shure SB920A Rechargeable
- Runtime: Up to 9 hours
- Charging: Dockable via external contacts

Construction & Controls
- Housing: Lightweight metal, moisture-resistant
- Display: Backlit LCD
- Switch: Lockable power/mute
- External Charging Contacts: Yes
