Shure ADX2FD/K9N=-G57 ADX FD HH 470-616 MHz

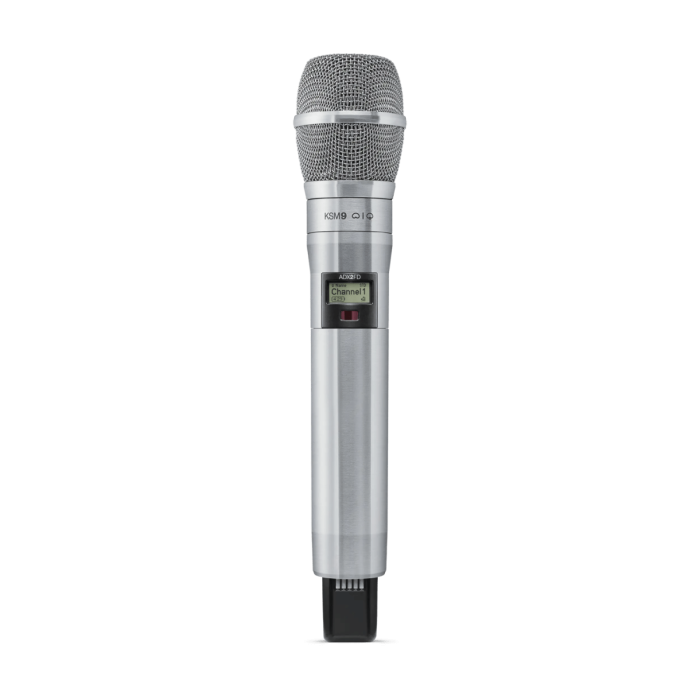

The ADX2FD/K9 is a handheld wireless microphone transmitter compatible with Axient® Digital Wireless Systems.

ADX2FD/K9, like all ADX transmitters, sets the stage for exceptional performance, with wide tuning up to 184 MHz, interference protection, advanced rechargeability, streamlined design, and ShowLink remote control for real-time parameter adjustments right from the booth.

Features

• Ability to transmit RF signal on two discrete carriers
• Optional 50mW High Power mode for driving increased power on a single frequency
• Durable, moisture-resistant, lightweight metal case in nickel finish
• Up to 6.5 hours of runtime with SB920A rechargeable battery when transmitting on two RF carriers (up to 9 hours battery life when
• transmitting on a single RF carrier)
• External contacts for docked charging with optional fully covered radome
• Diversity ShowLink enabled for remote transmitter control and automatic interference avoidance
• Two transmission modes: Standard for optimal coverage and new High Density for maximum system channel count and robust coverage
• Encryption-enabled, secure transmission
• Frequency Band - G57

Note: When purchasing separate wireless components, please match their frequency bands to ensure proper system operation.

Specifications

Transmission & RF
- Frequency Band: G57 (470–616 MHz)
- Tuning Range: Up to 184 MHz
- RF Output Power: 2 mW / 10 mW / 50 mW (selectable, region dependent)
- Dual Carrier Capability: Yes
- Encryption: AES-256
- Modulation Modes: Standard, High Density

Battery & Power
- Battery Type: SB920A rechargeable lithium-ion

Runtime:
- Up to 6.5 hours (dual RF)
- Up to 9 hours (single RF)
- Charging: Dock-compatible external contacts

Microphone
- Capsule: KSM9
- Polar Pattern: Switchable Cardioid/Supercardioid
- Type: Dual-diaphragm condenser

Construction
- Finish: Nickel
- Housing: Metal, moisture-resistant
- Display: OLED with menu navigation

Connectivity
- System Compatibility: Axient® Digital Receivers (AD4D, AD4Q)
- ShowLink® Enabled: Yes

Dimensions & Weight
- Length: 10.1 in (256 mm)
- Diameter: 2 in (51 mm)
- Weight: Approx. 12 oz (340 g) with battery

In the Box
- Shure ADX2FD/K9N=-G57 Handheld Transmitter
- SB920A Rechargeable Battery
- Zippered Microphone Bag
- User Guide
