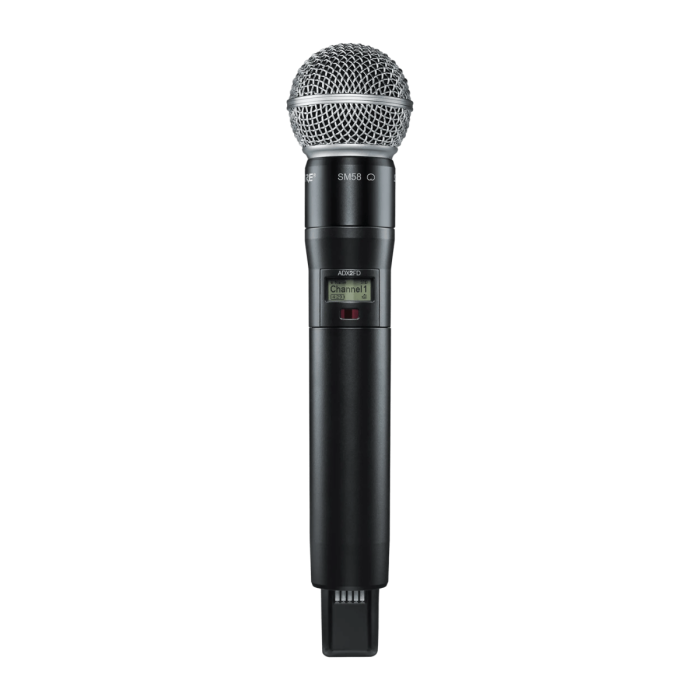

Shure ADX2FD/SM58=-G57 ADX FD HH 470-616 MHz
ADX2FD/SM58, like all ADX transmitters, sets the stage for exceptional performance, with wide tuning up to 184 MHz, interference protection, advanced rechargeability, streamlined design, and ShowLink remote control for real-time parameter adjustments right from the booth.
Features
- Ability to transmit RF signal on two discrete carriers
- Optional 50mW High Power mode for driving increased power on a single frequency
- Durable, moisture-resistant, lightweight metal case in black finish
- Up to 6.5 hours of runtime with SB920A rechargeable battery when transmitting on two RF carriers (up to 9 hours battery life when transmitting on a single RF carrier)
- External contacts for docked charging with optional fully covered radome
- Diversity ShowLink enabled for remote transmitter control and automatic interference avoidance
- Two transmission modes: Standard for optimal coverage and new High Density for maximum system channel count and robust coverage
- Encryption-enabled, secure transmission
- Frequency Band - G57
The ADX2FD/SM58 is a handheld wireless microphone transmitter compatible with Axient® Digital Wireless Systems.
Note: When purchasing separate wireless components, please match their frequency bands to ensure proper system operation.
Specifications
Microphone Capsule
- Type: Dynamic
- Model: SM58
- Polar Pattern: Cardioid
RF & Transmission
- Frequency Range: 470–616 MHz (G57 band)
- Tuning Bandwidth: Up to 184 MHz
- RF Output Power: 2 mW / 10 mW / 50 mW (region dependent)
- Dual-Carrier Transmission: Yes
- Transmission Modes: Standard, High Density
- Encryption: AES-256
Power
- Battery Type: Shure SB920A rechargeable battery or 2x AA batteries
Battery Life:
- Up to 9 hours (single RF carrier)
- Up to 6.5 hours (dual RF carriers)
- Dock Charging: Supported (external contacts)
Construction & Control
- Housing: Lightweight, moisture-resistant metal
- Display: Backlit LCD
- Control: ShowLink remote control enabled
In the Box
- Shure ADX2FD/SM58 Handheld Transmitter
- SB920A Rechargeable Battery (sold separately or included in system bundles)
- Zippered Mic Bag
- Microphone Clip
- User Guide
