Shure ANI4IN-BLOCK 4-Input, Block connectors, Mic/Line Dante Audio Network Interface with Mic Logic, PEQ, and Audio Summing

$624.00
In stock
SKU
SHU-ANI4IN-BLOCK

Brand new. Not available for curbside pickup. Online orders only.

The Shure ANI4IN-BLOCK is a compact and versatile Dante audio interface that converts up to four mic/line analog signals to a Dante network for flexible digital audio routing. Designed for conference rooms, classrooms, and professional AV environments, this interface brings analog microphone systems into the digital realm with powerful onboard processing and browser-based control. The block connector version features audio + logic connections, making it ideal for system integrators and advanced installs.

High-quality sound can bring more clarity to the conference, but not without high quality conversion. ANI interfaces with Dante™ make it easy to connect analog microphones to the network. Paired with analog microphones, ANI keeps the conversation on track.

Features

  • Powerful audio conversion for any system design
  • Single Ethernet port carries Dante audio, power (PoE – class 0)

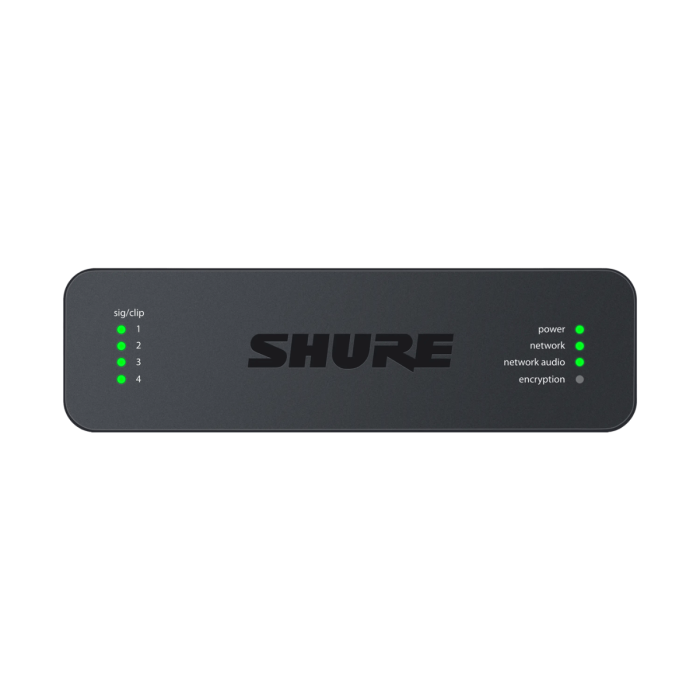

  • LEDs indicate device status and audio signal
  • Control strings for third-party preset controllers including
  • Crestron® and AMX®
  • 4 Band C/S PEQ on every channel
  • Provides channel summing to combine input signals and send them over a single Dante™ channel
  • Browser-based software control for all device parameters, per input channel:
    • Preamp gain
    • Mute control
    • Digital gain
    • Polarity control
    • Phantom power
    • 1/3 Rack unit wide
  • Chassis ground screw (BLOCK version only) provides common chassis ground for multiple inputs
  • Available in block connector (audio + logic) and standard XLR variations
  • Converts up to four line / mic analog signals onto a Dante network for easy audio routing and browser-based control.

Specifications

Inputs:
- 4 analog mic/line inputs with terminal block connectors
- Supports phantom power (+48V individually switchable)

Dante Interface:
- 4 Dante output channels (one per input or summed)
- 1x RJ45 Dante + PoE (Class 0) port
- Sample Rate: 48 kHz
- Bit Depth: 24-bit

Processing & Control:
- 4-band parametric EQ per channel
- Input summing option
- Mute and gain controls
- Logic input/output support
- Web-based GUI for configuration
- Compatible with Shure Designer System Configuration software

Power:
- Power-over-Ethernet (PoE) only
- No external PSU required

Form Factor:
- 1/3 Rack width
- Mounting: Desktop, rack, or under-table
- Grounding screw for chassis grounding

Ideal For:
- Conference Rooms
- Higher Education
- Houses of Worship
- Boardrooms
- AV Integrators
