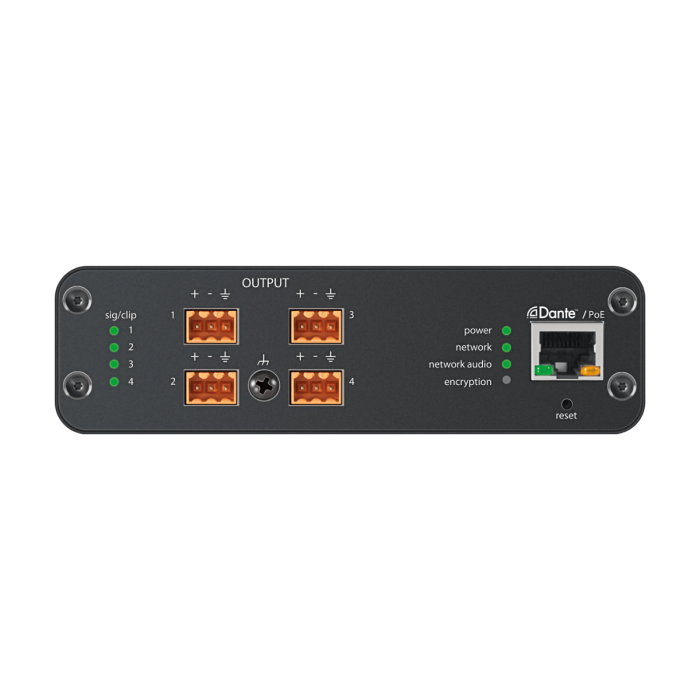

Shure ANI4OUT-BLOCK 4-Output, Block connectors, Mic/Line Dante Audio Network Interface with PEQ and Audio Summing

$624.00
In stock
SKU
SHU-ANI4OUT-BLOCK

Brand new. Not available for curbside pickup. Online orders only.

The Shure ANI4OUT-BLOCK is a Dante-enabled audio network interface designed to convert four channels of digital Dante™ audio into discrete analog line or mic outputs. With advanced routing, per-channel control, and flexible deployment options, the ANI4OUT-BLOCK is a powerful solution for AV conferencing, system integration, and audio distribution applications. Its block connector design provides convenient installation for fixed environments where space, durability, and ease of wiring are critical.

Converts Dante™ digital audio signal to four discrete line / mic analog signals for easy audio routing and convenient browser-based remote control.

Features

  • Single Ethernet port carries Dante audio, power (PoE – class 0)
  • LEDs indicate device status and audio signal
  • Control strings for third-party preset controllers including
  • Crestron® and AMX®
  • 4 Band C/S PEQ on every channel
  • Provides channel summing to combine Dante™ signals from the network and send them over a single analog output
  • Browser-based software control for all device parameters, per output channel:
  • Mute control
    • Digital gain
    • Polarity control
    • 1/3 Rack unit wide
  • Chassis ground screw provides common chassis ground for multiple inputs
  • Converts Dante™ digital audio signal to four discrete line / mic analog signals.

Specifications

Outputs:
- 4 balanced analog outputs (terminal block connectors)
- Output Level: Line or mic selectable per channel

Dante Interface:
- 4 Dante input channels from the network
- 1x RJ45 for Dante audio and PoE
- Sample Rate: 48 kHz
- Bit Depth: 24-bit

Processing & Control:
- 4-band Parametric EQ per output
- Mute and digital gain control
- Polarity invert toggle
- Channel summing feature
- Web-based GUI for configuration
- Compatible with Shure Designer System Configuration software

Power:
- Power-over-Ethernet (PoE – Class 0)
- No external PSU required

Chassis:
- 1/3 Rack unit wide
- Grounding screw (BLOCK version only)
- Mounting: Desktop, under-table, or rack with optional kit

Ideal For:
- Conference Room Audio Systems
- Lecture Halls
- Boardrooms
- Hospitality AV Systems
- Corporate or Educational Audio Distribution
