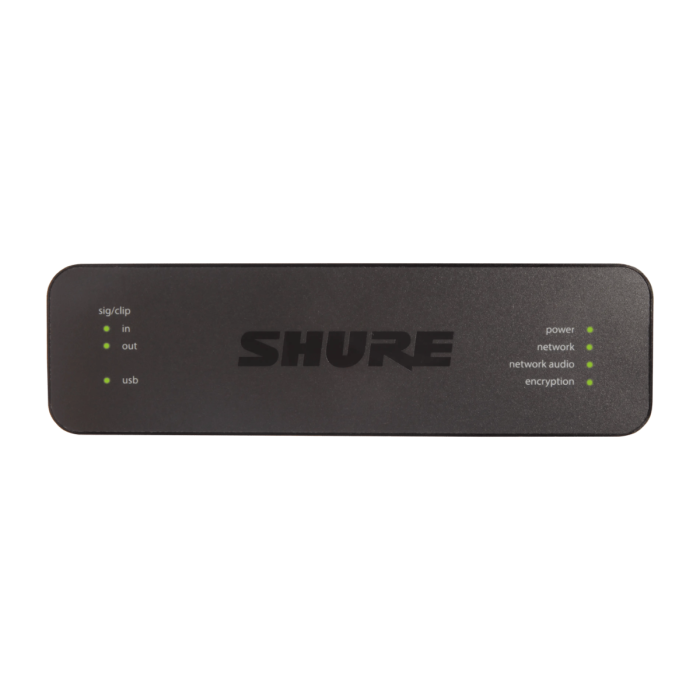

Shure ANIUSB-MATRIX 4CH IN/2CH OUT USB Matrix MIX,DNTE,Block

The ANIUSB-MATRIX USB Audio Network Interface complements the existing ANI4IN, ANI4OUT, and ANI22 products. It offers the ideal performance, connectivity, and affordability for audio/video conferencing installations in small and medium-size meeting rooms when a premium microphone solution is desired, and acoustic echo cancellation of an A / V conferencing codec will be used.

Features

• Connects 4 Dante audio inputs and 1 analog input to an A / V conferencing system or a PC-based videoconferencing application
• Flexible signal routing and connectivity: analog audio (1 block in / 1 block out) to room A / V conferencing system; USB (1 in / out) to connect to laptop or room PC
• Power-over-Ethernet (PoE) eliminates the need for an outboard power supply
• Compact form factor is easy to mount without equipment rack

The ANIUSB-MATRIX connects 4 Microflex® Advance™ or Microflex® Wireless microphone channels via Dante (4 in / 2 out), and provides analog connectivity (1 block in / 1 block out) to a room audio / video conferencing system or a PC-based A / V conferencing application via USB (1 in / out).

An internal matrix mixer offers flexible routing, allowing users to route any input to any output. A 4-band parametric EQ filter is also available on the analog and USB outputs.

Audio network interface connects up to 4 Dante channels and 1 analog output to a room's audio and video conferencing system via USB connection. Internal matrix mixer offers flexible routing, allowing users to route any input to any output.

Specifications

Audio Inputs
- Dante: 4 channels (RJ45 Ethernet)
- Analog: 1 channel (Euroblock)

Audio Outputs
- Dante: 2 channels
- Analog: 1 channel (Euroblock)
- USB: 1 input / 1 output (Type B)

Signal Routing
- Internal Matrix Mixer: Any input routable to any output
- EQ: 4-band parametric EQ on analog and USB outputs

Connectivity
- USB Interface: Type B, 1x in/out
- Network Port: RJ45 (Gigabit Ethernet, Dante-enabled)
- Power: Power over Ethernet (PoE, IEEE 802.3af Class 0)

Control & Compatibility
- Software: Shure Designer Software, Shure Web UI
- Compatible Microphones: Microflex Advance, Microflex Wireless, and other Dante-enabled mics

Construction
- Housing: Compact metal chassis
- Mounting: Surface or under-table mountable

Dimensions
- Width: 6.5 in (165 mm)
- Height: 1.7 in (43 mm)
- Depth: 5.0 in (127 mm)

Weight
- 1.4 lbs (0.64 kg)
