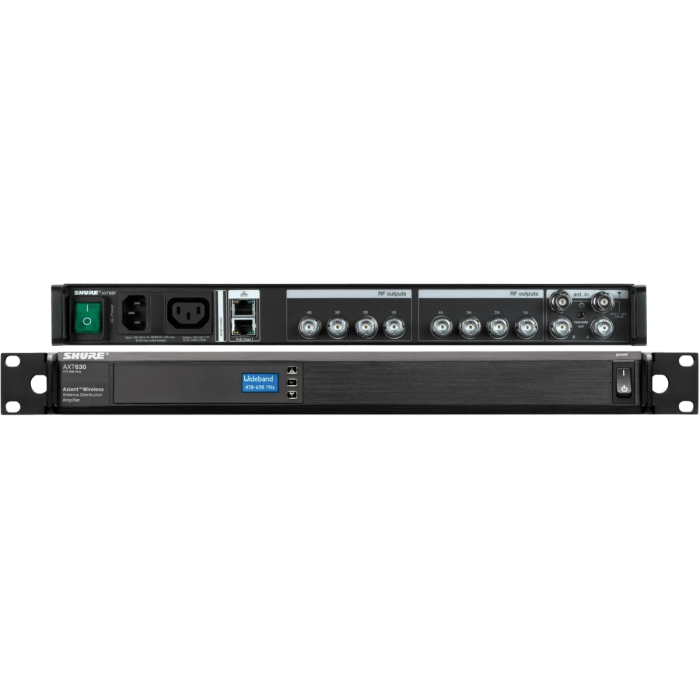

Shure AXT630US AXT630 Antenna DIST. 470-698 MHz

The AXT630 features selectable 60 MHz input filters that match the available frequency bands of Axient transmitters, providing extra protection from strong out-of-band signals and a lower overall RF noise floor. Four BNC antenna output pairs distribute filtered signal to receivers, and an unfiltered RF cascade port is included to connect wideband devices like the Axient Spectrum Manager. Networkable via Ethernet connection, the AXT630 enables WWB6 control of filtering ranges, antenna power and attenuation.

Features

• Wideband antenna distribution system for Axient and compatible receivers
• Selectable 60 MHz input filters matched to Axient transmitter bands
• Wideband filter mode available for mixed-band setups
• Ultra-linear RF amplification prevents signal distortion
• Four BNC output pairs for filtered antenna distribution
• Unfiltered cascade output with selectable 3 dB make-up gain
• Up to 15 dB selectable RF attenuation for fine-tuning signal-to-noise
• Front panel control or remote management via Wireless Workbench 6 (WWB6)
• Dual Ethernet ports with PoE support for networking
• IEC in/out power connectors for AC daisy-chaining

RF Optimization
- Ultra-linear distribution amp handles high signal levels without distortion.
- Selectable input filtering provides system-wide protection against strong out-of-band signals.
- Filter ranges are matched to Axient transmitter bands.
- Wideband filtering option covers multiple bands.
- Up to 15 dB selectable RF attenuation for signal-to-noise optimization.

Connectivity
- Front panel interface and WWB6 control provides easy setup and control of filtering, antenna power and attenuation.
- BNC outputs: 4 antenna output pairs.
- Unfiltered RF cascade port with selectable 3 dB make-up gain for connecting wideband devices.
- Ethernet networking: 2 PoE-enabled Ethernet ports.
- IEC in/out power ports enable daisy-chaining of AC power.

Specifications:

Frequency Range
- 470–698 MHz

Filtering
- Selectable 60 MHz input filters
- Wideband filter mode available
- Input filtering matched to Axient transmitter bands

RF Distribution
- 4 pairs of BNC filtered antenna outputs
- 1 unfiltered BNC cascade output with selectable 3 dB make-up gain
- Up to 15 dB selectable RF attenuation

Networking
- 2x Ethernet ports (PoE-enabled)
- Compatible with Shure Wireless Workbench® 6 for control and monitoring

Power
- IEC AC in/out ports for daisy-chaining power
- PoE over Ethernet supported
- Front Panel Controls
- Filtering range
- Antenna power
- RF attenuation

Ideal For
- Axient Wireless Systems
- Broadcast installations
- Touring productions
- Large-scale multi-channel RF setups
