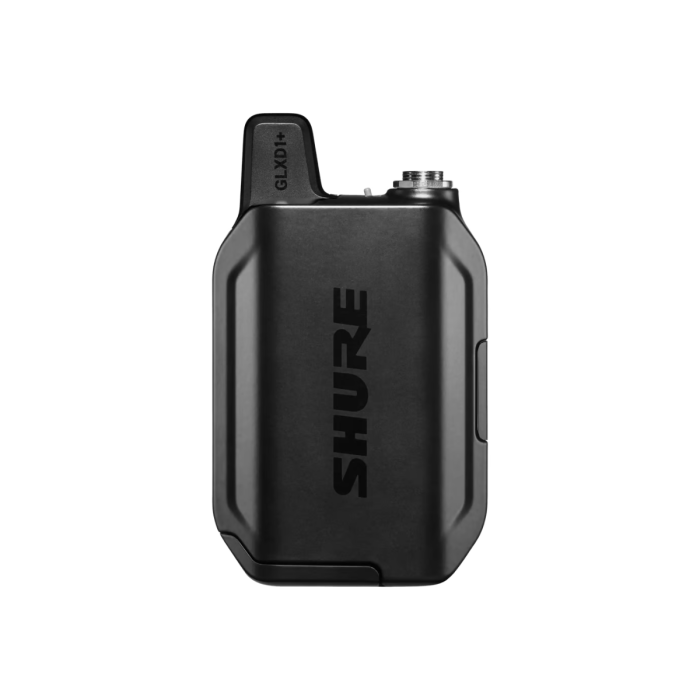

Shure GLXD1+=-Z3 The GLXD1+ Dual Band Bodypack Transmitter

The GLXD1+ Dual Band Bodypack Transmitter has rugged, metal construction with ergonomic design and reversible belt clip to fit comfortably and snugly in various positions.

Ready-To-Go. Every time. Automatically.
The GLXD1+ Dual Band Bodypack Transmitter has rugged, metal construction with ergonomic design and reversible belt clip to fit comfortably and snugly in various positions. Compatible with instrument cable, and a variety of headset and lavalier microphone options.

Features

• For Use with GLX-D+ Receivers
• Use with Lav/Headset Mic or Instrument
• TA4M Connector
• Transmits on 2.4 and 5.8 GHz Frequencies
• 10mW RF Output Power
• On/Off Switch
• Compatible with 12-Hr Rechargeable SB904
• USB Recharging with Battery Inside

In the Box
- 1 SB904 Lithium-Ion Rechargeable Battery

Specifications:

General
- Wireless Technology: Digital 2.4 GHz/5.8 GHz
- Max Operating Range: 100' / 30.5 m
- Transmitter Type: Bodypack
- Audio I/O: 1x TA4/Mini-XLR 4-Pin Male Unbalanced Input (Locking)
- RF Frequency Band: Z3: 2400 to 2483.5 MHz / 5725 to 5850 MHz
- RF Bandwidth: 208.5 MHz
- RF Channel Scanning: Auto-Scan
- Max Operating Range: 100' / 30.5 m
- Built-In Recorder: No
- Timecode Support: No
- Mobile App Compatible: No
- Encryption: No
- Modulation: Proprietary (with Back Channel)

Transmitter
- Transmitter Type: Bodypack
- RF Output Power: 10 mW
- Audio I/O: 1x TA4/Mini-XLR 4-Pin Male Unbalanced Input (Locking)
- Included Cable Connector: No
- Pad: No
- Muting: Off/On Switch
- Audio Input Level: 8.4 dBV
- Auto-Level Control: No
- Signal Processing: No
- Frequency Response: 20 Hz to 20 kHz (Dependent on Mic)
- Sync Method: Proprietary
- Antenna: 1x External, Fixed (Beltpack)
- Power Requirements: Battery
- Battery Type: 1x Shure SB904 (Included)
- Internal Battery Capacity: 2420 mAh
- Battery Charging Time: .25 to 3 Hours
- Approx. Battery Life: 12 Hours
- USB/Lightning I/O: No
- Display & Indicators: LED (Battery Status, Sync)
- Housing: Metal, Plastic
- Dimensions: 2.6 x 4.5 x 1.1" / 67 x 115 x 28.5 mm
- Weight: 5.4 oz / 153 g (without Batteries)

Packaging Info
- Package Weight: 0.86 lb
- Box Dimensions (LxWxH): 12.1 x 5.2 x 3.2"
