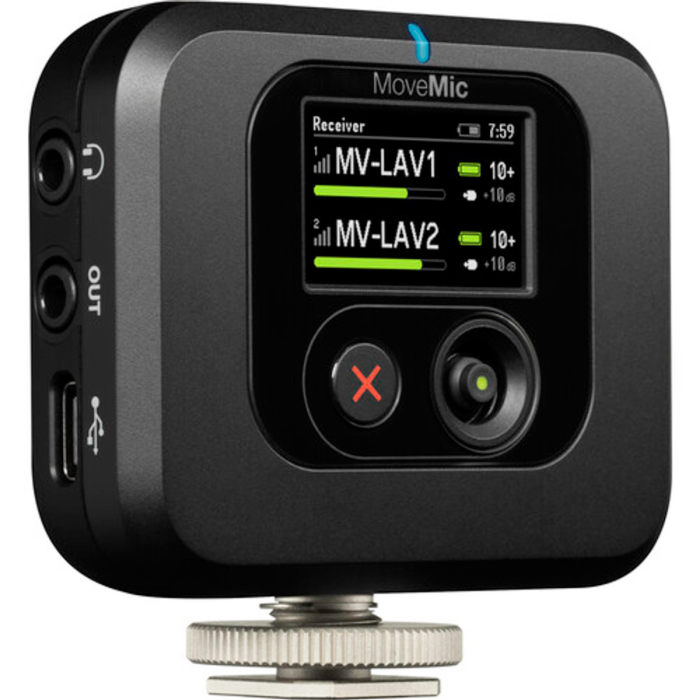

Shure MV-R-Z7 Shoe Mountable Camera Plug-in Receiver

$219.00

In stock

SKU

SHU-MV-R-Z7

Brand New. Not Available for Curbside Pickup. Online Orders Only

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Details

The Shure MoveMic Receiver allows you to expand your MoveMic One or MoveMic Two wireless microphone system (available separately) to work with DSLR/mirrorless cameras, computers, and third-party apps on mobile devices. The receiver features an integrated shoe mount for quick and easy camera mounting and provides a 3.5mm output jack for camera connection along with a second 3.5mm output jack for headphone monitoring. Audio can also be sent to mobile devices digitally via the USB-C port, which also recharges the built-in battery and can power the unit.

Features

Use with 1 or 2 MoveMic Mic/Transmitters
Dual-Channel Receiver for Camera & Phone
Allows Use of Third-Party Mobile Apps
3.5mm Output Jack & 3.5mm Headphone Jack
USB-C for Audio, Charging, Power
Compact, Quick and Easy to Use
Easy-to-Read LCD Screen
Integrated Shoe Mount
Includes USB-C and 3.5mm Cables
8-Hour Rechargeable Battery, 100' Range

In The Box
- Shure MoveMic Wireless Microphone Receiver for Cameras & Mobile Devices
- Shure Coiled 3.5mm TRS to 3.5mm TRS Cable for MoveMic (8")
- USB-C Cable
- Limited 2-Year Manufacturer Warranty

Specifications
- Wireless Technology: Digital
- Diversity: Non-Diversity
- Max Operating Range: 98.4' / 30 m (Line of Sight)
- Receiver Type: Camera-Mount
- Number of Audio Channels: 2

Audio I/O
- 1x 1/8" / 3.5 mm TRS Unbalanced Mic/Line Output
- 1x 1/8" / 3.5 mm TRS Unbalanced Headphone Output

- Network I/O: No
- Power Requirements: Battery, Bus Power (USB)
- Diversity: Non-Diversity
- RF Channel Scanning: Auto-Scan
- Max Operating Range: 98.4' / 30 m (Line of Sight)
- Max Transmitters per Band: 2
- Timecode Support: No
- Mobile App Compatible: Yes: Android & iOS
- App Name: MOTIV Video/Audio
- Bluetooth: 5.0 LE
- Bluetooth Operating Distance: 98.4' / 30 m
- Latency: 15.33 to 17.33 ms
- Modulation: Proprietary

Receiver
- Receiver Type: Camera-Mount
- Mounting Options: Shoe-Mount (with Included Hardware)
- Number of Audio Channels: 2

Audio I/O
- 1x 1/8" / 3.5 mm TRS Unbalanced Mic/Line Output
- 1x 1/8" / 3.5 mm TRS Unbalanced Headphone Output

- Gain Range: +60 dB

Audio Output Level
- 1/8" / 3.5 mm Output: -26 dBV (Mic Level)
- 1/8" / 3.5 mm Output: -8.3 dBV (Line Level)

- Phantom Power Protection: No
- Signal Processing: Graphic EQ: High-Pass Filter:
- Frequency Response: 50 Hz to 20 kHz
- Network I/O: No
- Word Clock I/O: No
- USB/Lightning Connectivity: USB-C Female (Audio, Bus Power, Charging)
- USB Class-Compliant: Yes
- Standalone Audio Interface Capable: No
- Impedance: Headphone Output: 16 Ohms
- Power Requirements: Battery, Bus Power (USB)
- Battery Type: 1x Built-In Rechargeable
- Battery Charging Time: 2.5 Hours
- Approx. Battery Life: 8 Hour
- AC/DC Power Adapter: VDC Not Included
- Display & Indicators: 1x Graphic LCD
- Housing: ABS, Plastic
- Dimensions: 2.6 x 2.6 x 0.7" / 65 x 67 x 19 mm
- Weight: 2.9 oz / 81 g
