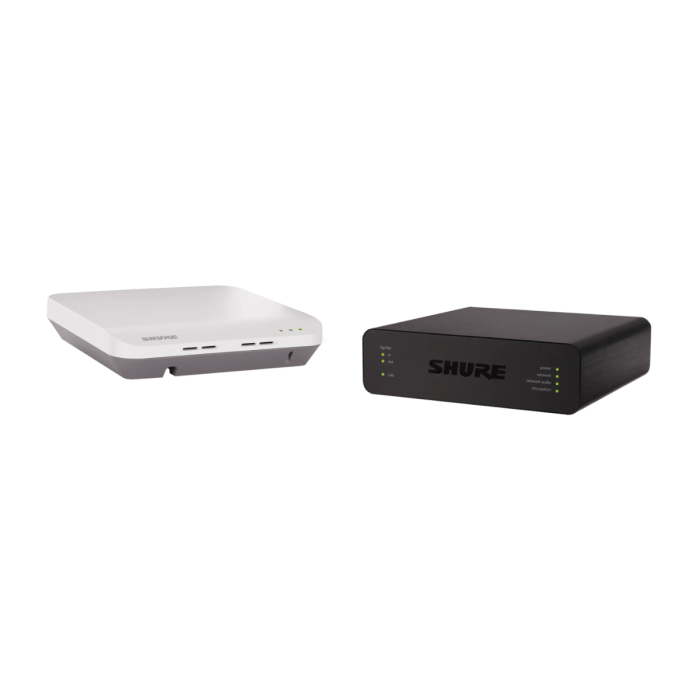

Shure MXWAPT2-Z10+USB-P MXWAPT2=-Z10 and ANIUSB-Matrix

This professional conferencing bundle pairs the Shure MXWAPT2 2-Channel Access Point Transceiver with the ANIUSB-MATRIX USB Audio Network Interface to provide seamless audio routing, premium wireless microphone connectivity, and flexible signal control. Ideal for boardrooms, hybrid classrooms, AV-equipped conference rooms, and other modern collaboration spaces, this system delivers natural voice clarity, reliable RF performance, and plug-and-play USB connectivity—all over a networked Dante® infrastructure.

Bundle Includes
- Shure MXWAPT2-Z10 2-Channel Access Point Transceiver (1.9 GHz DECT band)
- Shure ANIUSB-MATRIX USB Audio Network Interface with Matrix Mixer
- Paintable mounting cover and hardware

MXWAPT2 Access Point Transceiver

Features

• Supports two bi-directional microphone channels
• Operates in the license-free 1.9 GHz DECT band
• AES 256-bit encrypted transmission for secure wireless audio
• Automated frequency coordination actively avoids interference
• Dante-enabled audio over a single Cat5e cable with Power-over-Ethernet (PoE)
• Wireless return audio and remote mic control via ShowLink
• Adjustable output power for efficient spectrum usage
• Includes low-profile, paintable cover for aesthetic installations
• Plenum-rated design meets safety codes for ceiling integration
• Scalable system supports up to 40 channels (80 in Europe)

In the MXWAPT2 Box:
- 1x Paintable Cover
- 1x Wall/Ceiling Mounting Bracket

Specifications:

Wireless:
- Channels: 2 (bi-directional)
- Frequency Band: DECT (1.9 GHz)
- Encryption: AES 256-bit

Audio Interface:
- Dante: 2 in / 2 out (RJ45)

Connectivity:
- Network Port: 1x RJ45 (Gigabit Ethernet, Dante + PoE)
- Power: PoE (IEEE 802.3af Class 0)
- Status LEDs: Power, network, and audio activity

Compatibility & Control:
- Systems: Shure Microflex Wireless (MXW)
- Software: Shure Web UI, Shure Designer

Construction:
- Enclosure: Lightweight, plenum-rated
- Mounting: Ceiling/wall with included bracket

Dimensions & Weight:
- Width: 6.3 in (160 mm)
- Height: 1.25 in (32 mm)
- Depth: 6.3 in (160 mm)
- Weight: 1.9 lbs (0.86 kg)

ANIUSB-MATRIX USB Audio Network Interface

Features

• Converts 4 Dante audio channels and 1 analog input to USB and analog outputs
• Internal matrix mixer allows flexible routing and signal summing
• 4-band parametric EQ on USB and analog outputs
• Browser-based software for configuration and control
• Secure networking with 802.1x, AES encryption, and secure boot
• Compact form factor — no rack required

Specifications:

Audio Inputs:
- Dante: 4 channels (RJ45)
- Analog: 1 channel (Euroblock)

Audio Outputs:
- Dante: 2 channels
- Analog: 1 channel (Euroblock)
- USB: 1 input / 1 output (Type B)

Signal Routing:
- Internal matrix mixer with full input/output mapping
- Channel summing and EQ available on analog/USB outputs

Connectivity:
- USB: 1x Type B
- Network: 1x RJ45 (Gigabit Ethernet, Dante)
- Power: PoE (IEEE 802.3af Class 0)

Control & Compatibility:
- Software: Shure Designer, Web UI
- Compatible Mics: Shure Microflex Advance, Microflex Wireless, and other Dante-enabled mics

Construction:
- Compact metal housing
- Surface or under-table mountable

Dimensions & Weight:
- Width: 6.5 in (165 mm)
- Height: 1.7 in (43 mm)
- Depth: 5.0 in (127 mm)
- Weight: 1.4 lbs (0.64 kg)

Ideal Applications:
- Video conferencing with Zoom, Teams, Webex, etc.
- Conference rooms and boardrooms
- Hybrid A/V spaces with analog, Dante, and USB equipment

System Benefits
- Seamless integration of Shure Microflex® Wireless microphones
- High-quality, low-latency audio transmission and control
- USB and analog audio compatibility with soft codecs and hardware AV systems
- Ideal for integrators, corporate AV teams, and conferencing tech deployments
