Shure P10T=-H22 PSM1000 Dual Rack Unit Transmiitter

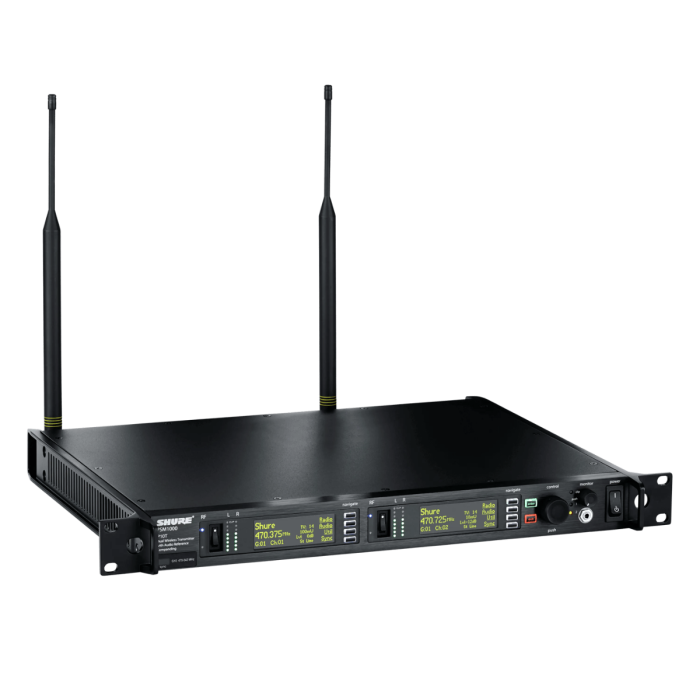

Shure’s P10T is a networkable, full-rack, dual-channel wireless transmitter used in conjunction with the P10R Wireless Bodypack Receiver as part of the PSM® 1000 Personal Monitor System. The P10T Wireless Transmitter combines state-of-the-art technology with touring-grade features for professional monitoring applications of any size with no room for error. It offers a 72 MHz to 80 MHz tuning bandwidth, networked remote control via Wireless Workbench® software, advanced rechargeability options, and PSM® 900 backwards compatibility.

The P10T is a networkable, full-rack, dual channel wireless transmitter used in conjunction with the P10R Wireless Bodypack Receiver as part of the PSM®1000 Personal Monitor System. It offers a 72 MHz wide tuning bandwidth, networked remote control via Wireless Workbench® software, advanced rechargeability options, and PSM®900 backwards compatibility.

Features

• Full rack, dual-channel transmitter in a professional, touring grade chassis
• 72 MHz wide tuning range provides flexibility and performance in crowded, unpredictable RF environments
• Networkable over Ethernet connection to provide comprehensive frequency coordination and transmitter remote control via Wireless Workbench® software:
  • RF mute enable/disable
  • RF output power adjustments
  • Aux/line level
  • Audio input level
  • Channel/device name edit
  • Firmware updates
• Backwards-compatible with PSM®900 receivers
• RF Mute Switch allows system setup without causing RF interference
• Sync RF scan information from a P10R bodypack quickly and easily over IR link
• Switchable 10/50/100 mW output power provides a robust RF link in a variety of performance environments
• Spectrum display provides a detailed frequency plot on the menu screen with selectable zoom
• Front panel audio input gain adjustment and LED level meter with clipping indicator
• Exceptional transmitter linearity vastly reduces frequency intermodulation, allowing more compatible channels per frequency range
• High-contrast LCD with grouped menu items provides an intuitive user interface
• Front or back mountable antennas
• Compatible with PA821B and PA821A antenna combiners
• Loop out connectors for multiple mix setups and easy installation
• Switchable +4dBu and -10 dBV input level
• Balanced, ¼" and XLR connectors
• 1/8" headphone out on the front panel for easy monitoring

Connections include balanced ¼” and XLR, loop out, dual Ethernet ports, and headphone monitor out.

Comes with front or back mountable antennas, and power and Ethernet jumper cables.

Specifications

General
- RF Carrier Frequency Range: H22: 518 to 584 MHz
- Compatible Frequencies: Per Band: 39
- Tuning Bandwidth: 66 MHz
- Operating Range: 300' / 90 m (Environment Dependent)
- Frequency Response: 35 Hz to 15 kHz (±1 dB)
- Signal to Noise Ratio: 90 dB (Typical) A-Weighted
- Total Harmonic Distortion (THD): Ref. ±34 kHz Deviation at 1 kHz <0.5% (Typical)
- Companding: Patented Shure Audio Reference Companding
- Spurious Rejection: Ref. 12 dB SINAD: >80 dB (Typical)
- Frequency Stability: ±2.5 ppm
- MPX Pilot Tone: 19 kHz (±0.3 kHz)

Modulation
- FM (±34 kHz Deviation at 1 kHz)
- MPX Stereo Ref.

- Operating Temperature: 0 to 135°F / -18 to 57°C

Transmitter
- RF Output Power: Selectable: 10, 50, 100 mW (+20 dBm)
- RF Output Impedance: 50 Ohms (typical)

Power Requirement
- Input: 100 to 240 VAC, 50/60 Hz, 0.5 A Max (5.5, with Outlet Loaded)
- Output: 100 to 240 VAC, 50/60 Hz, 5 A Max, Unswitched

- Audio Input: Combination XLR-1/4" /6.3 mm TRS

Polarity
- XLR: Non-Inverting (Pin 2 Positive with Respect to Pin 3)
- 1/4" / 6.3 mm: Tip Positive with Respect to Ring

- Configuration: Electronically Balanced
- Impedance: 70.2 Kilohms (Actual)
- Nominal Input Level: Switchable: +4 dBu, -10 dBV

Maximum Input Level
- +4 dBu: +29.2 dBu
- -10 dBV: +12.2 dBu

Pin Assignments
- XLR: 1=Ground, 2=Hot, 3=Cold
- 1/4" / 6.3 mm TRS: Tip=Hot, Ring=Cold, Sleeve=Ground

- Phantom Power Protection: Up to 60 VDC

Audio Output
- Connector Type: 1/4" / 6.3 mm TRS
- Configuration: Electronically Balanced
- Impedance: Connected Directly to Inputs

Physical Characteristics
- Dimensions: 1.7 x 19.0 x 13.5" / 4.3 x 48.3 x 34.3 cm
- Weight: 10.4 lb / 4.7 kg

Packaging Info
- Package Weight: 16.5 lb
- Box Dimensions (LxWxH): 27.6 x 17.7 x 3.74"
