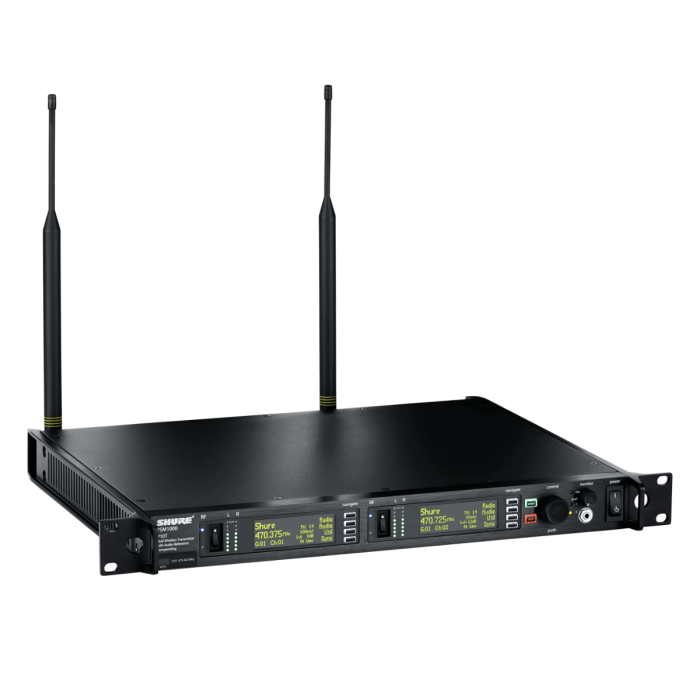

Shure P10T=-J8A Dual Transmitter for Shure PSM 1000 Personal Monitor System

Shure’s P10T is a networkable, full-rack, dual-channel wireless transmitter used in conjunction with the P10R Wireless Bodypack Receiver as part of the PSM® 1000 Personal Monitor System. The P10T Wireless Transmitter combines state-of-the-art technology with touring-grade features for professional monitoring applications of any size with no room for error. It offers a 72 MHz to 80 MHz tuning bandwidth, networked remote control via Wireless Workbench® software, advanced rechargeability options, and PSM® 900 backwards compatibility.

• Full rack, dual-channel transmitter in a professional, touring grade chassis
• 72 MHz wide tuning range provides flexibility and performance in crowded, unpredictable RF environments
• Networkable over Ethernet connection to provide comprehensive frequency coordination and transmitter remote control via Wireless Workbench® software:

  • RF mute enable/disable
  • RF output power adjustments
  • Aux/line level
  • Audio input level
  • Channel/device name edit
  • Firmware updates
• Backwards-compatible with PSM®900 receivers
• RF Mute Switch allows system setup without causing RF interference
• Sync RF scan information from a P10R bodypack quickly and easily over IR link
• Switchable 10/50/100 mW output power provides a robust RF link in a variety of performance environments
• Spectrum display provides a detailed frequency plot on the menu screen with selectable zoom
• Front panel audio input gain adjustment and LED level meter with clipping indicator
• Exceptional transmitter linearity vastly reduces frequency intermodulation, allowing more compatible channels per frequency range
• High-contrast LCD with grouped menu items provides an intuitive user interface
• Front or back mountable antennas
• Compatible with PA821B and PA821A antenna combiners
• Loop out connectors for multiple mix setups and easy installation
• Switchable +4dBu and -10 dBV input level
• Balanced, ¼" and XLR connectors
• 1/8" headphone out on the front panel for easy monitoring
• Frequency Band - J8A

The P10T is a networkable, full-rack, dual channel wireless transmitter used in conjunction with the P10R Wireless Bodypack Receiver as part of the PSM®1000 Personal Monitor System. It offers a 72 MHz wide tuning bandwidth, networked remote control via Wireless Workbench® software, advanced rechargeability options, and PSM®900 backwards compatibility.

Connections include balanced ¼” and XLR, loop out, dual Ethernet ports, and headphone monitor out.

Comes with front or back mountable antennas, and power and Ethernet jumper cables.

Note: When purchasing separate wireless components, please match their frequency bands to ensure proper system operation
