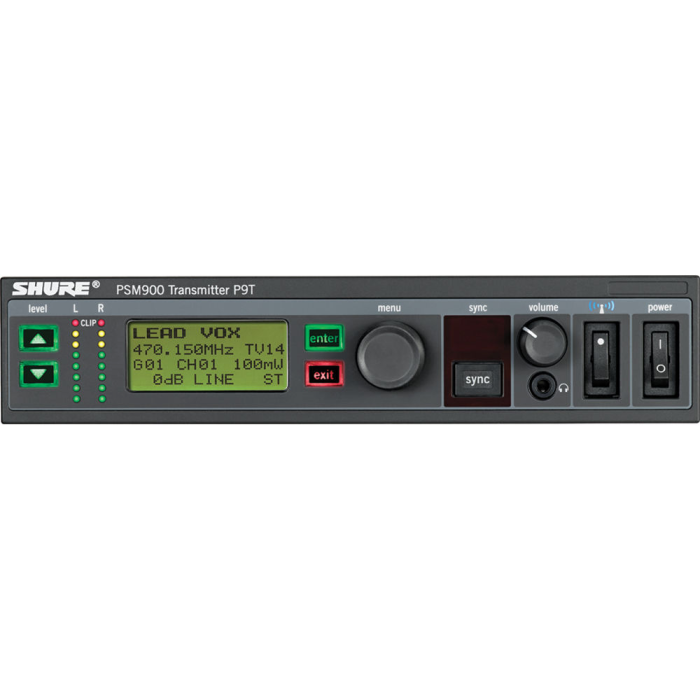

Shure P9T=-G6 PSM 900 Transmitter

Shure’s P9T is a half-rack, wireless transmitter used in conjunction with the P9RA+ Bodypack receiver as part of the PSM® 900 Wireless Personal Monitor System.

Features

• RF Mute Switch allows system setup without causing RF interference
• Syncs to a P9R bodypack quickly and easily over IR link using Scan and Sync
• Front panel audio input gain adjustment and LED level meter with clipping indicator
• Front or back mountable antennas
• Compatible with PA421B and PA821B antenna combiners
• Loop out connectors for multiple mix setups and easy installation
• Switchable +4 dBu and -10 dBV input level
• Balanced, 1/4” and XLR connectors
• Bit-mapped, backlit LCD
• Includes rack-mounting hardware
• 1/8” headphone out on the front panel for easy monitoring
• The P9T is a half-rack wireless transmitter used in conjunction with the P9R Bodypack receiver as part of the PSM®900 Wireless Personal Monitor System.

It offers state-of-art technology like CueMode (patent pending), Scan and Sync, and RF mute switch for easy setup and operation.

Connections include balanced 1/4” and XLR, loop out, and headphone out. Includes rack-mounting kit, front or back mountable antennas, and power supply.

Specifications:

General
- Frequency Band: G6: 470 to 506 MHz
- Output Power: 10/50/100 mW, Selectable (Regionally Dependent)
- Output Impedance: 50 Ohms (RF, Typical)
- Input Level: +4 dBu and -10 dBV, Switchable
- Power Requirements: 415 mA, Typical (RF On, 100 mW Power Mode, No Audio)
- Dimensions: 7.75 x 6.5 x 1.6" / 19.7 x 16.6 x 4.2 cm
- Weight: 1.9 lb / 850 g

Connectors
- 2 x XLR-TRS Combo Inputs
- 2 x 1/4" Loop Outputs
- 1 x DC Power Input
- 1 x Antenna Connector
- 1 x 3.5 mm Headphone Jack

Packaging Info
- Package Weight: 6 lb
- Box Dimensions (LxWxH): 18.3 x 14.8 x 3.7"
