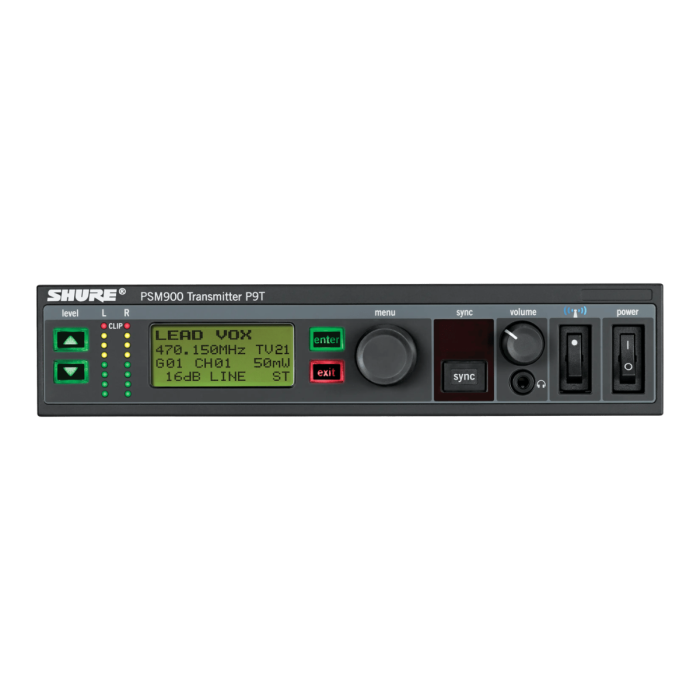

Shure P9T=-H21 P9T Wireless Transmitter

Shure’s P9T is a half-rack, wireless transmitter used in conjunction with the P9RA+ Bodypack receiver as part of the PSM® 900 Wireless Personal Monitor System.

The P9T Wireless Transmitter combines state-of-the-art technology with an ideal set of features for professional monitoring applications of any kind, including IEM and IFB applications.

Features

• RF Mute Switch allows system setup without causing RF interference
• Syncs to a P9R bodypack quickly and easily over IR link using Scan and Sync
• Front panel audio input gain adjustment and LED level meter with clipping indicator
• Front or back mountable antennas
• Compatible with PA421B and PA821B antenna combiners
• Loop out connectors for multiple mix setups and easy installation
• Switchable +4 dBu and -10 dBV input level
• Balanced, 1/4” and XLR connectors
• Bit-mapped, backlit LCD
• Includes rack-mounting hardware
• 1/8” headphone out on the front panel for easy monitoring

The P9T is a half-rack wireless transmitter used in conjunction with the P9R Bodypack receiver as part of the PSM®900 Wireless Personal Monitor System. It offers state-of-art technology like CueMode (patent pending), Scan and Sync, and RF mute switch for easy setup and operation. Connections include balanced 1/4” and XLR, loop out, and headphone out. Includes rack-mounting kit, front or back mountable antennas, and power supply.

Note: When purchasing separate wireless components, please match their frequency bands to ensure proper system operation

Specifications

General
- Transmitter Type: Half-rack wireless stereo transmitter
- Frequency Range: 542–578 MHz
- Stereo/Mono Operation: Stereo
- Operating Range: Up to 300 ft. (line of sight)
- Number of Compatible Frequencies: 20
- Display: Backlit LCD with level and RF indicators
- Cue Monitoring: CueMode enabled

Audio I/O
- Inputs: 2x XLR-1/4" combo (balanced)
- Outputs: 2x 1/4" TRS (loop out), 1x 1/8" (headphone out)
- Input Gain Control: Front panel adjustable
- Input Level Switch: +4 dBu / -10 dBV

RF & Antenna
- Antenna Mounting: Front or rear options
- Antenna Compatibility: Works with PA421B, PA821B combiners
- Sync Method: IR (Scan and Sync)

Power
- Power Supply: 15V DC @ 550mA (included)
- Power Connector: External DC adapter

Construction
- Rackmount: 1/2 RU (hardware included)
- Housing: Metal chassis for durability

Dimensions
- Height: 1.65 in (42 mm)
- Width: 7.75 in (197 mm)
- Depth: 6.55 in (166 mm)

Weight
- Approx. 2.2 lbs (1.0 kg)
