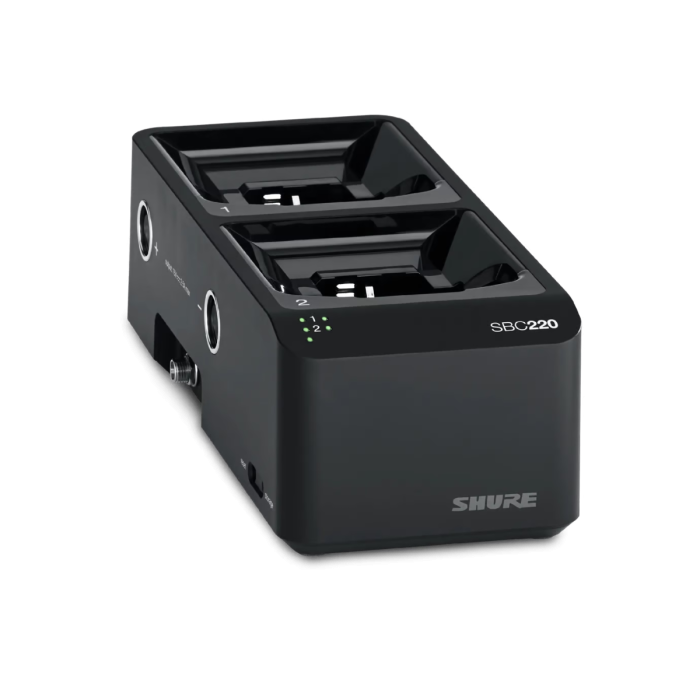

Shure SBC220 2 Bay Networked Docking Station

Networked Charging Station for docked charging, storage and battery status for any combination of two SB900B batteries or ULXD1, QLXD1, AD1 (bodypack) or ULXD2, QLXD2 or AD2 (handheld) wireless transmitter.

Features

• Charging for any combination of up to 2 supported batteries, or transmitters using Shure rechargeable batteries
• Connect up to 4 of any combination of SBC220 and SBC240 units with shared power and network connectivity
• LEDs indicate charge status and battery errors
• Storage mode to prepare batteries for long-term storage
• Network-enabled for remote monitoring with Shure Wireless Workbench
• Supplies full charges in three hours, 50% charge in one hour
• Charge status bi-color LEDs for each battery / transmitter

The SBC220 2-Bay Networked Charging Station enables docked charging and storage for any combination of two sb900b batteries or ULXD1, QLXD1, AD1 (bodypack) or ULXD2, QLXD2 or AD2 (handheld) wireless transmitters. When the connected to a network, the charging status of each transmitter can be viewed remotely while the transmitters are in the charger, using Shure Wireless Workbench® Management software. Up to four SBC220 units can be linked together to share power and network connectivity.

Specifications

Compatibility
- Battery: Shure SB900B
- Transmitters: ULXD1, QLXD1, AD1, ULXD2, QLXD2, AD2

Charging
- Charge Time: 50% in 1 hour, full charge in 3 hours
- Charge Indicators: Bi-color LEDs for each docked unit
- Storage Mode: Preserves battery health for long-term storage

Connectivity
- Networking: Ethernet-enabled for monitoring and management
- Expansion: Link up to 4 SBC220/SBC240 units together

Construction
- Form Factor: Tabletop, low-profile
- Mounting: Surface mountable (rack tray optional with SBC240)

Power & Network
- Power Input: 15V DC (power supply sold separately)
- Network Port: 1x RJ45

Dimensions & Weight
- Dimensions: Approx. 6.8 x 3.4 x 2.0 in (173 x 86 x 51 mm)
- Weight: Approx. 1.3 lbs (0.59 kg)
