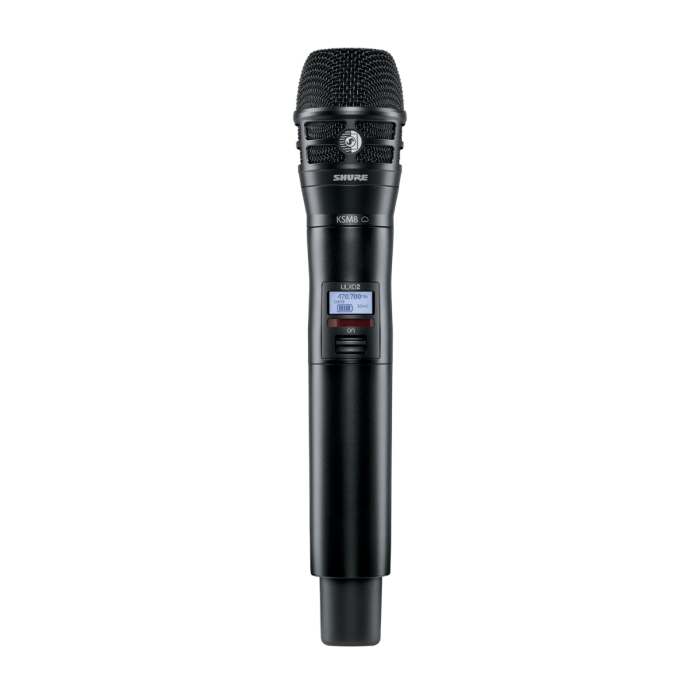

Shure ULXD2/K8B=-H50 ULXD HH Transmitter 534-598 MHz

The ULXD2 Handheld Transmitter coupled with the paramount KSM8 vocal microphone delivers outstanding sound for touring professionals the world over.

The KSM8 with the ULXD2 Handheld Transmitter features the KSM8 Dualdyne Cardioid DynamicVocal Microphone head which allows control of proximity effect and off-axis attenuation while providing clearest vocal capture and reproduction during live performances.

The Shure ULXD2 is a handheld wireless transmitter compatible with ULX-D Digital Wireless Systems. With a rugged yet lightweight aluminum body and integrated antenna, the ULXD2 delivers uncompromising audio quality and RF performance, AES 256-bit encryption for secure transmission, and advanced rechargeability options for professional sound reinforcement applications.

This transmitter requires the ULXD4 receiver to complete the system.

Features

• 30 Hz–20 kHz range with flat frequency response (actual response is microphone dependent)
• Interchangeable Shure microphone cartridges
• AES 256-bit encryption for applications for which secure transmission is needed
• Proprietary Shure Gain Ranging optimizes the system’s dynamic range for any input source, eliminating the need for transmitter gain adjustments
• Optional Shure SB900B Lithium-Ion rechargeable battery pack provides over 12 hours of battery life, precision metering in hours and minutes, and zero memory effect
• External charging contacts for docked charging (with the SBC200 Dual Docking Charger)
• Backlit LCD with easy to navigate menu and controls
• Rugged metal construction
• Frequency and power lockout

Specifications:

General
- Wireless Technology: Digital UHF
- Max Operating Range: 328.1' / 100 m
- Transmitter Type: Handheld
- Audio I/O: No
- Microphone Type: Handheld Capsule
- Polar Pattern: Cardioid
- RF Frequency Band: H50: 534 to 598 MHz
- RF Bandwidth: 64 MHz
- Frequency Step Size: 25 kHz
- RF Channel Scanning: Auto-Scan
- Max Operating Range: 328.1' / 100 m
- Built-In Recorder: No
- Timecode Support: No
- Mobile App Compatible: No
- Sample Rate/Resolution: 48 kHz / 24-Bit
- Latency: < 2.9 ms
- Encryption: AES 256
- Modulation: Proprietary

Transmitter
- Transmitter Type: Handheld
- RF Output Power: 1 / 10 / 20 mW (Switchable)
- Built-In Microphone: No
- Audio I/O: No
- Included Cable Connector: No
- Muting: Off/On Switch
- Auto-Level Control: Yes
- Gain Range: 0 to 21 dB (3 dB Steps)
- Sync Method: IR
- Antenna: 1x Internal Single-Band Helical
- Power Requirements: Battery

Battery Type:
- 2x AA (Included)
- 1x Shure SB900A (Not Included, Replaceable)

Approx. Battery Life:
- Med.: 11 Hours (Alkaline)
- Med.: 12 Hours (Lithium Shure SB900A)

- Display & Indicators: 1x Backlit LCD (Channel, Group, Mute, RF Output Power, Sync)
- Housing: Aluminum
- Operating Temperature: 0 to 122°F / -17 to 50°C
- Storage Temperature: -20 to 165°F / -28 to 73°C
- Dimensions: 10.9 x 2" / 278 x 51 mm
- Weight: 12.3 oz / 348 g

Microphone
- Microphone Type: Handheld Capsule
- Color: Black
- Sound Field: Mono
- Capsule: Dynamic
- Polar Pattern: Cardioid
- Frequency Range: 40 Hz to 16 kHz
- Sensitivity: -51 dBV/Pa at 1 kHz
- Dynamic Range: Hypercardioid: 130.8 dB, Wide-Angle Cardioid: 131.3 dB

Packaging Info
- Package Weight: 1.535 lb
- Box Dimensions (LxWxH): 12.75 x 5.05 x 3.85"
