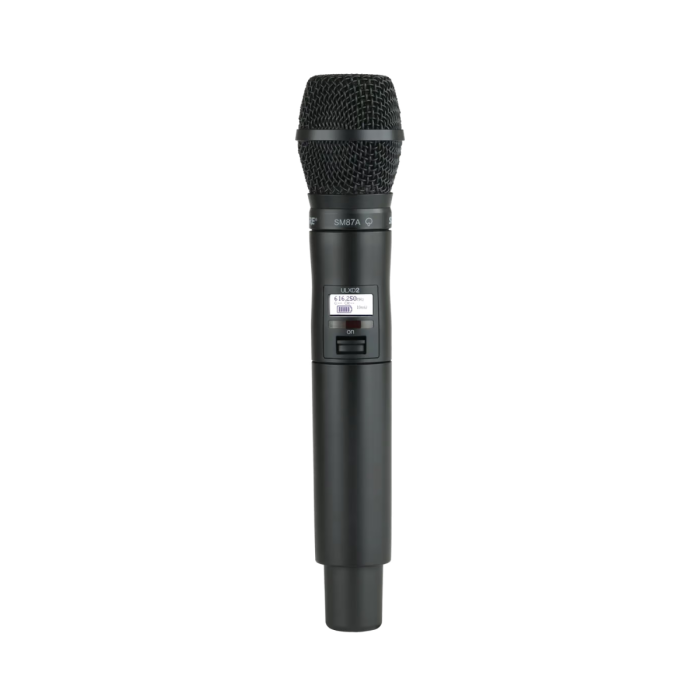

Shure ULXD2/SM87=-H50 Handheld Transmitter with SM87 Microphone

The Shure ULXD2/SM87 handheld transmitter combines the clarity and presence of the SM87 condenser microphone capsule with the reliability and performance of ULX-D® Digital Wireless Systems. Built for professional sound reinforcement, the ULXD2 offers transparent digital audio, encrypted transmission, and advanced power options in a durable, road-ready design.

Whether you're on stage, in a corporate setting, or leading a worship service, the ULXD2/SM87 delivers studio-quality vocals with consistent performance and intelligent RF management.

Features

• AES 256-bit encryption for applications for which secure transmission is needed
• Proprietary Shure Gain Ranging optimizes the system’s dynamic range for any input source, eliminating the need for transmitter gain adjustments
• Optional Shure SB900B lithium-ion rechargeable battery pack provides over 12 hours of battery life, precision metering in hours and minutes, and zero memory effect
• External charging contacts for docked charging (with the SBC200 Dual Docking Charger)
• Transmitter Mute Mode repurposes the On/Off switch into a mute switch, enabling audio muting while preserving RF channel presence
• Backlit LCD with easy to navigate menu and controls
• Rugged metal construction
• Frequency and power lockout
• Frequency Band - H50

The ULXD2/SM87 Handheld Wireless Microphone Transmitter works with ULX-D Wireless Systems.

Note: When purchasing separate wireless components, please match their frequency bands to ensure proper system operation.

Specifications

Microphone Element
- Type: Electret Condenser
- Polar Pattern: Supercardioid
- Capsule: SM87

Wireless System Compatibility
- System: ULX-D Digital Wireless
- Frequency Band: H50 (534–598 MHz)
- Encryption: AES 256-bit
- Modulation: 24-bit / 48 kHz digital

Battery & Power
- Power Options: 2 x AA batteries or SB900B rechargeable battery
- Runtime: Up to 12 hours (SB900B)
- External Charging: Compatible with SBC200 docking charger
- Display: Backlit LCD with navigation controls

Construction & Controls
- Housing: Rugged metal construction
- Switches: Power/Mute switch, menu navigation buttons
- Lockout Features: Frequency and power lock
- Dimensions: 10.1 in (256 mm) length
- Weight: Approx. 12 oz (340 g) with SB900B battery

In the Box
- ULXD2 Handheld Transmitter with SM87 Capsule
- Microphone Clip
- Zippered Storage Bag
- 2 x AA Batteries
- User Guide
